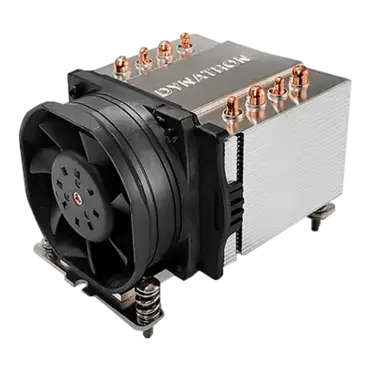

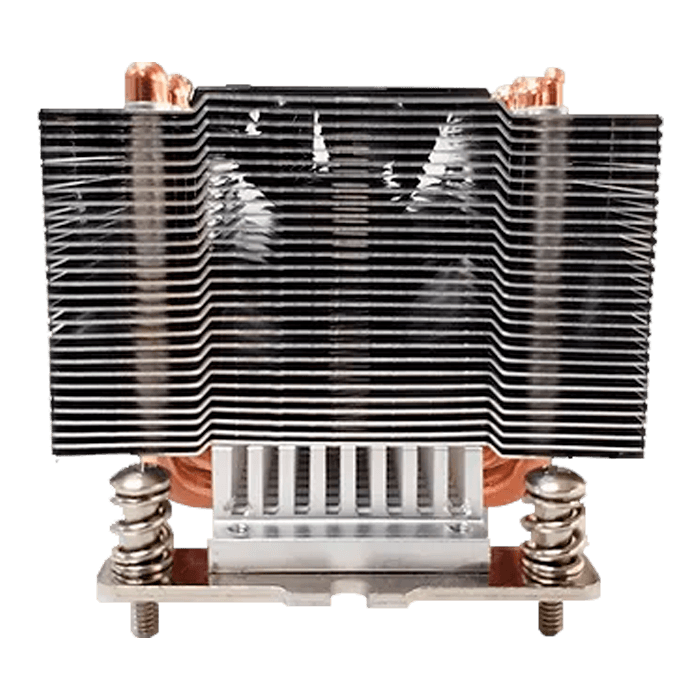

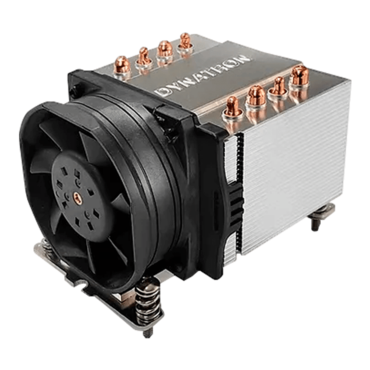

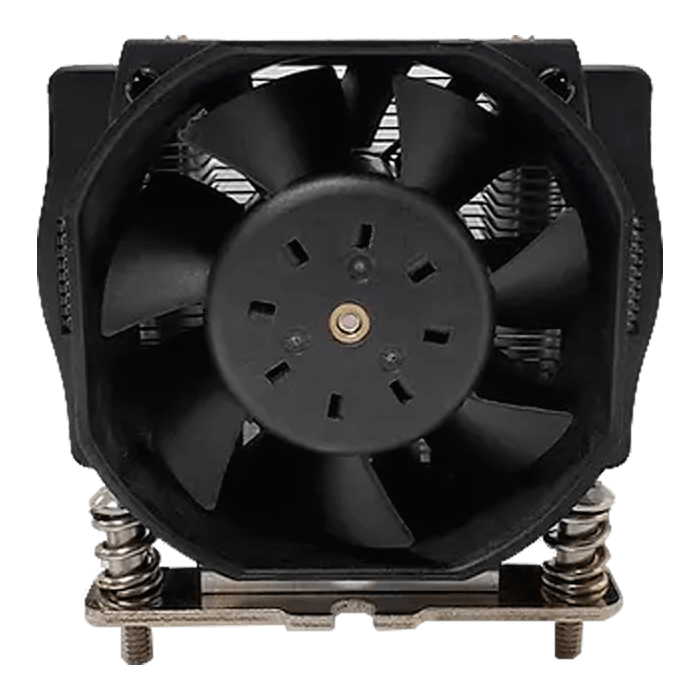

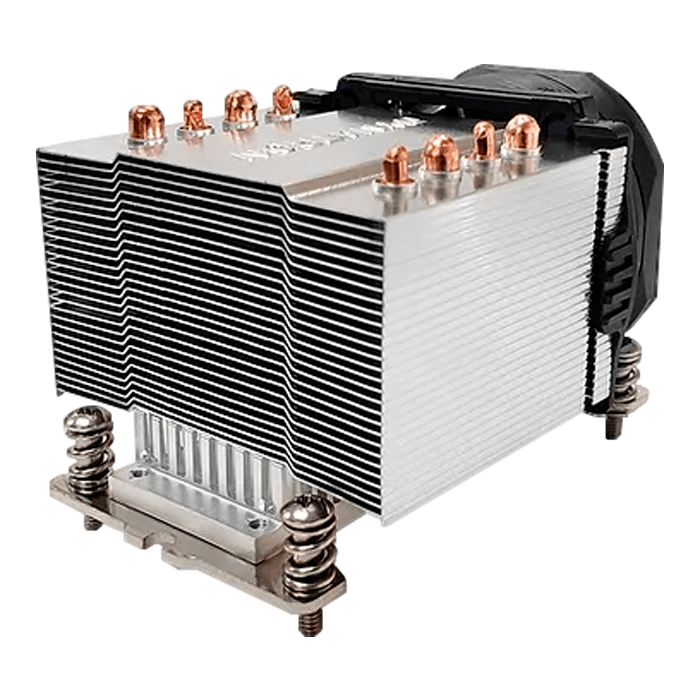

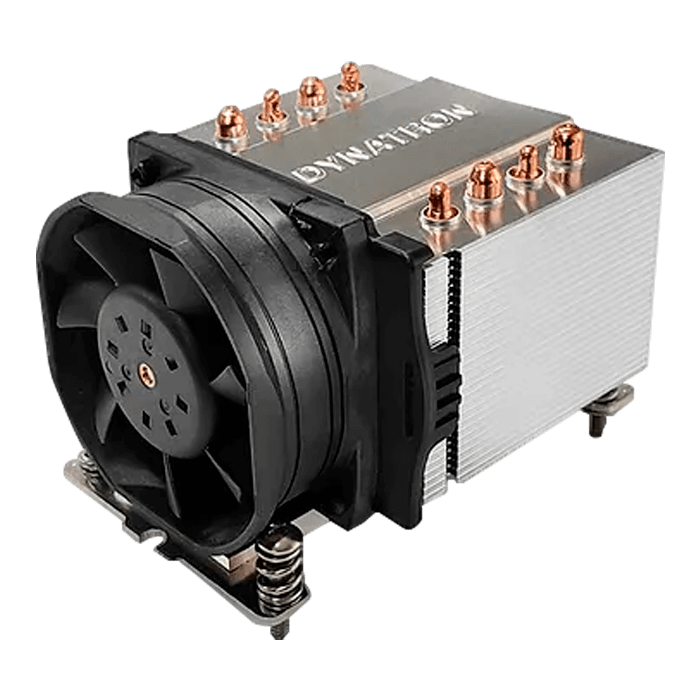

A47, 67mm Height, 145W TDP, Copper/Aluminum CPU Cooler
The Dynatron A47 CPU cooler is designed for A47 ( power version of A24)
The Dynatron A47 CPU cooler is designed for A47 ( power version of A24)
CPU Support | AMD® Ryzen |
CPU Socket | AM4/AM5 |
Solution | 2U Server and Up |
Dimensions | 107 x 78 x 67 mm |
Weight | 400 g |
Material | 4 Heat pipes and Aluminum Stacked Fin |
Fan Dimension | 60 x 60 x 25 mm |
Speed |
At Duty Cycle 20%: 2300±200 RPM At Duty Cycle 50%: 5400±10% RPM At Duty Cycle 100%: 11000±10% RPM |
Bearing | Double-Ball |
Rated Voltage | 12V |
Power |
At Duty Cycle 20%: 0.84 W At Duty Cycle 50%: 2.76 W At Duty Cycle 100%: 18.0 W |
AIr Flow |
At Duty Cycle 20%: 11.91 CFM At Duty Cycle 50%: 28.38 CFM At Duty Cycle 100%: 58.31 CFM |
Noise Level |
At Duty Cycle 20%: 25.8 dBA At Duty Cycle 50%: 44.4 dBA At Duty Cycle 100%: 59.8 dBA |
Air Pressure |
At Duty Cycle 0~20%: 1.48 mm-H2O At Duty Cycle 50%: 7.54 mm-H2O At Duty Cycle 100%: 28.8 mm-H2O |
Lead Wire Pin Out |
Pin1- (-) Pin2- (+) Pin3- (Techometer/Signal output) Pin4- (PWM) |
