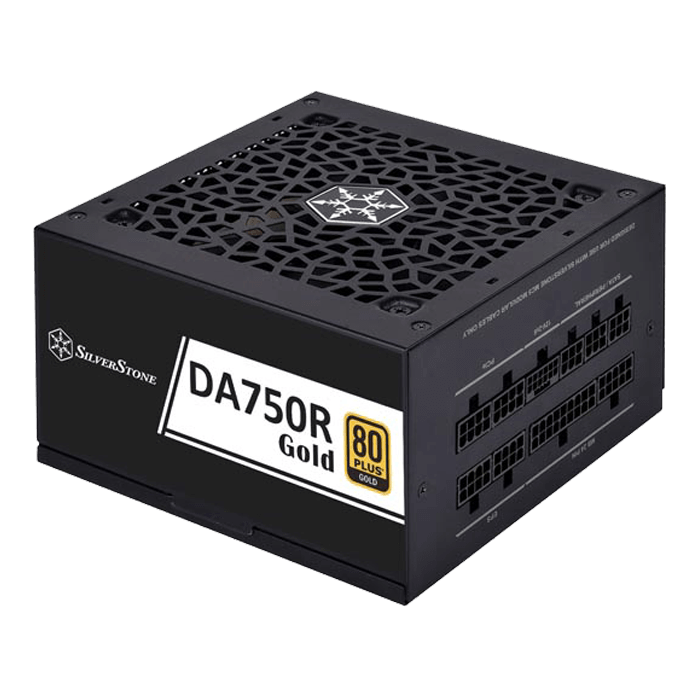

DA750R-GMA, 80 PLUS Gold 750W, Fully Modular, ATX Power Supply

Quantity:
  • SKU: 17173992
  • Manufacturer: SILVERSTONE
  • MPN: DA750R-GMA
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$125.34
Quantity:
  • 80 PLUS Gold efficiency certification
  • Equipped with Gen5 12V-2x6 PCIe connector, meeting Intel ATX 3.0 specification standard
  • Latest PCIe Gen 5 standard to support up to 2X power excursion
  • 24/7 continuous power output with 50?operating temperature
  • Silent running 120mm fan with advanced semi-fanless operation
  • Compact design with a 140mm depth for easy integration
Product No. SST-DA750R-GMA (Black)
Model (safety certification) SST-AX0750MCGD-C
Color Black (lead-free paint)
Max. DC Output 750W
Power density 415W/L
Load Range
Output +3.3V +5V +12V +5VSB -12V
Max.(Amps) 20A 20A 62.5A 3A 0.3A
Min.(Amps) 0A 0A 0A 0A 0A
Range (%) ±3% ±3% +5%-7% ±5% ±8%
Line Reg.(%) ±1% ±1% ±1% ±1% ±1%
Ripple(mVp-p) 40mV 40mV 80mV 40mV 80mV
Combined +3.3V & +5V 100W
Combined +12V 750W
Input Voltage 90 ~ 264 Vrms
Input Frequency Range 47Hz ~ 63Hz
PFC Active PFC (PF>0.9 at full load)
Efficiency ≥87% & <89%
MTBF 100,000 hours
Operating temperature 0°C ~ 50°C
Protection Over Current Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Over Temperature Protection
Under Voltage Protection

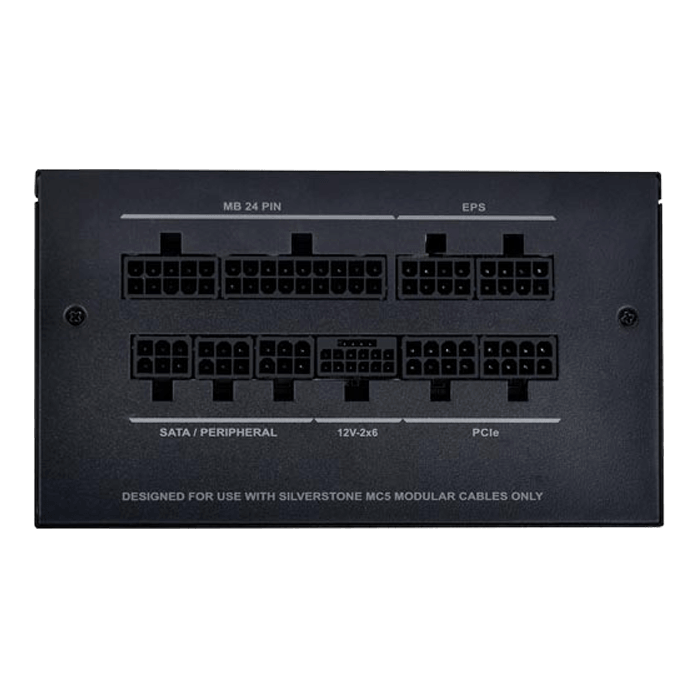

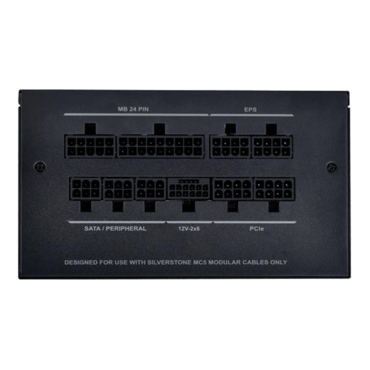

Connectors 1 x 24 / 20-Pin motherboard connector
2 x 8 / 4-Pin EPS / ATX 12V connector
4 x 8 / 6-Pin PCIe connectors
1 x 12V-2x6 connector
8 x SATA connectors
4 x 4-Pin Peripheral connector
DA750R-GMA are not compatible with PP05-E and PP06 cables.
Cooling System Silent 120mm fan
Noise Level 0 dBA minimum
Certification 80 PLUS Gold
Form factor ATX (PS2)
Dimension 150mm (W) × 86mm (H) × 140mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight 2.08kg
