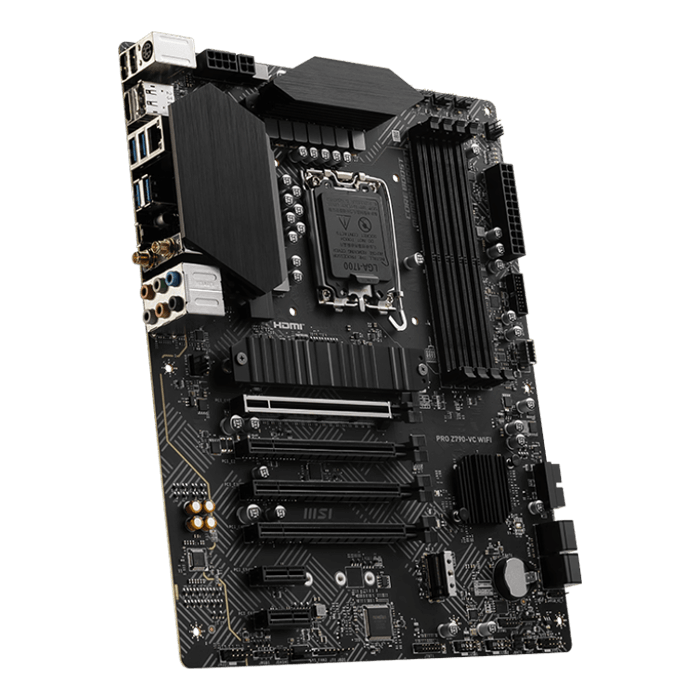

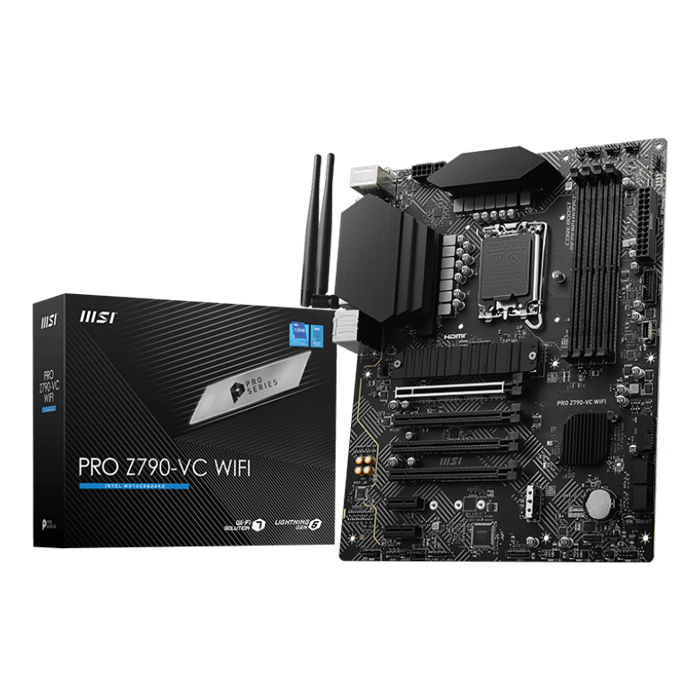

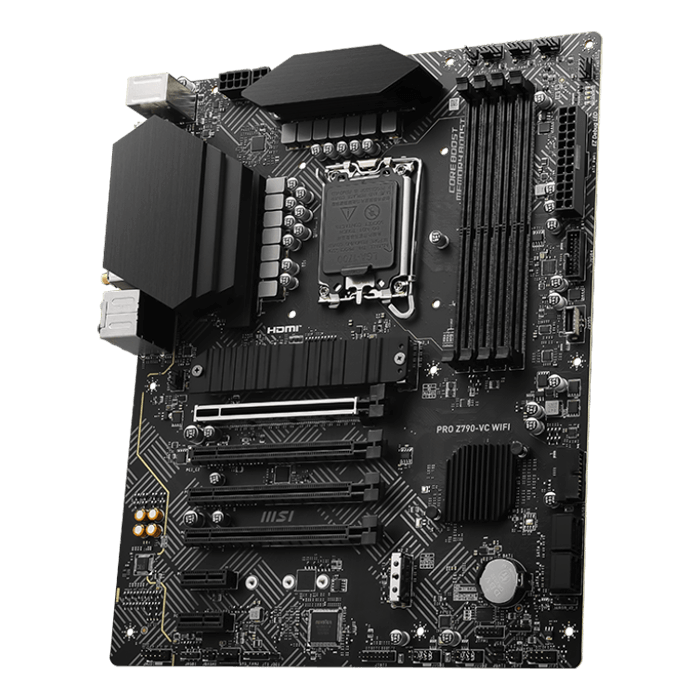

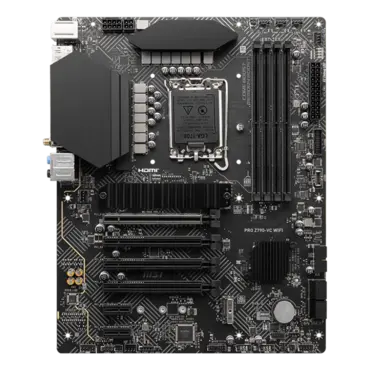

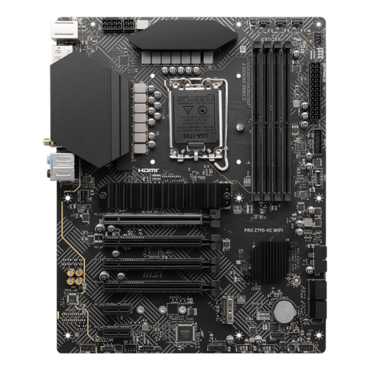

PRO Z790-VC WIFI, Intel® Z790 Chipset, LGA 1700, ATX Motherboard
Quantity:
- SKU: 17330234
- Manufacturer: MSI
- MPN: PROZ790VCWIFI
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$187.43
PRO Z790-VC WIFI, Intel® Z790 Chipset, LGA 1700, ATX Motherboard
PRO Z790-VC WIFI offers a simple design with a black color scheme that matches black PC builds. It is engineered with many exclusive features of MSI, a convenient Wi-Fi 7 solution, and DDR5 optimization for Intel® Core™ 14th Gen and 13th Gen processors.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7200+MHz (OC)
- Enhanced Power Design: 12+1+1 Duet Rail Power System with P-PAK, 8+4 pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2x2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 7 Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
| Chipset | INTEL Z790 |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Memory | 4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 7200+ MHz • 1DPC 2R Max speed up to 6600+ MHz • 2DPC 1R Max speed up to 6400+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 4x PCI-E x16 slot (Qty) 2x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E5 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E6 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Storage | 2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices |
| USB | 2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 1x USB 20Gbps Type C (Rear) |
| LAN | Realtek® RTL8125BG 2.5Gbps LAN |
| WIRELESS LAN & BLUETOOTH | Wi-Fi 7 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal IO | 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 4x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x TBT connector (JTBT, supports RTD3) 1x Tuning Controller connector(JDASH) 1x Addressable V2 RGB LED connector (JARGB_V2) 1x Addressable RGB LED connector(JRAINBOW) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS | 1x Keyboard / Mouse 2x DisplayPort 1x 2.5G LAN 2x Wi-Fi / Bluetooth 6x Audio Connectors 2x USB 2.0 1x HDMI™ 4x USB 3.2 Gen 1 5Gbps (Type-A) 1x USB 3.2 Gen 2x2 20Gbps (Type-C) |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| PCB Info | ATX 243.84mmx304.8mm |
| UPC | 0824142343203 |
