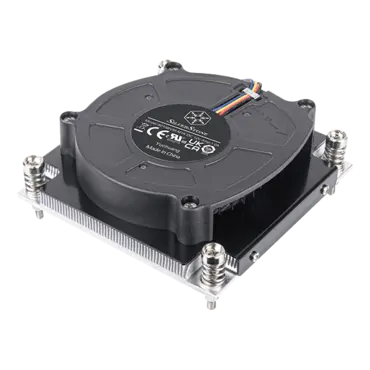

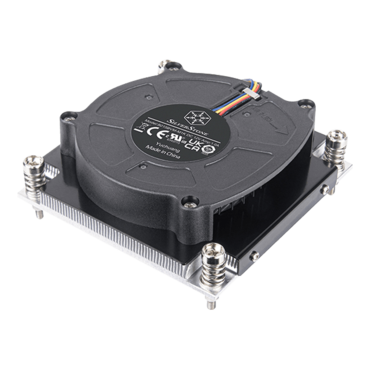

XE01-1700A, 28mm Height, 80W TDP, Aluminum CPU Cooler

Quantity:
  • SKU: 17174660
  • Manufacturer: SILVERSTONE
  • MPN: XE01-1700A
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$39.09
Quantity:
  • Compatible with Intel LGA1700 processors
  • Designed for 1U servers / low profile systems at only 28mm tall
  • Reinforced back plate and reliable fan mounting mechanism
  • High reliability 80mm cooling fan with dual ball bearing and PWM function
  • Industrial-grade 8-pole motor for smooth and quiet operation
Model No. SST-XE01-1700A

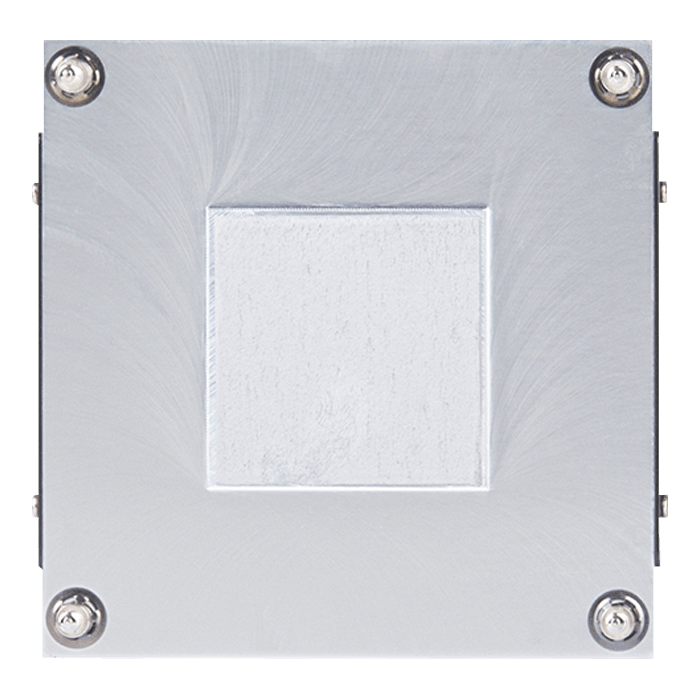

Material Aluminum base, aluminum fins
Application Intel LGA1700
Fan Dimension
  • 88mm (W) x 15mm (H) x 78mm (D)
    3.46" (W) x 0.59" (H) x 3.07" (D)
Speed
  • 1,000 ~ 5,500RPM
Noise level
  • 58.1 dBA
Rated Voltage
  • 12V
Rated Current
  • 0.7A
Max airflow
  • 15.79 CFM
Max air pressure
  • 42.4mmH2O
Connector
  • 4 pin PWM
Bearing
  • Dual ball bearing
MTTF
  • 70,000 hours
CPU TDP 80W
Dimension 90mm (W) x 28mm (H) x 90mm (D)
3.54" (W) x 1.1" (H) x 3.54" (D)
Net weight 235g
