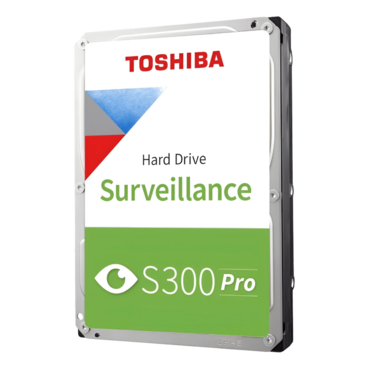

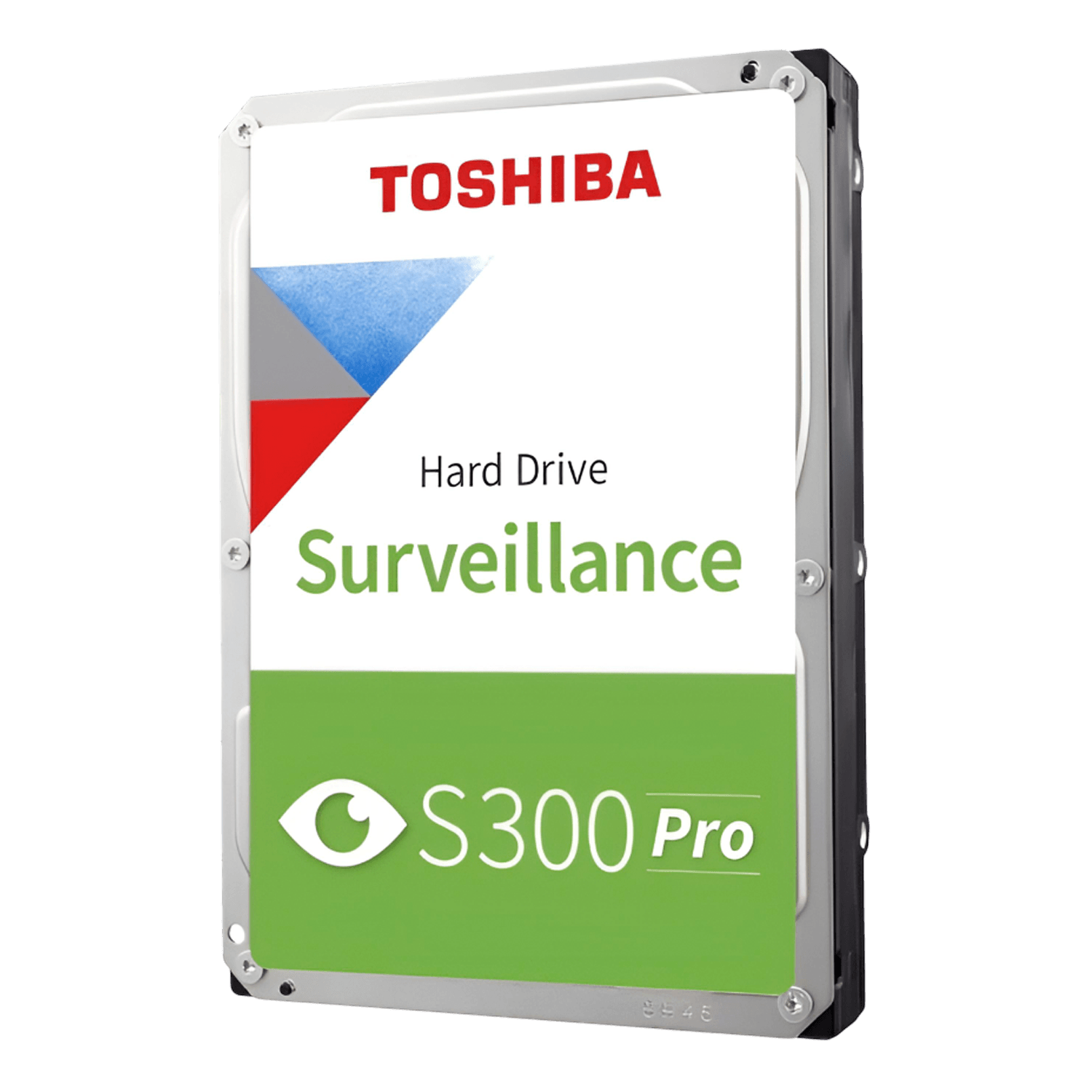

10TB S300 Pro HDWTA1AUZSVAR, 7200 RPM, SATA 6Gb/s, 512MB cache, 3.5" HDD
Quantity:
- SKU: 18003914
- Manufacturer: TOSHIBA
- MPN: HDWTA1AUZSVAR
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$295.68
| Capacity' | 10TB |
| Model Number (Retail packaging) | HDWTA1AUZSVAR |
| Model Number (Bulk) | HDWTA1AUZSVA |
| Interface | SATA 6.0 Gbit/s |
| Form Factor" | 3.5-inch |
| Advanced Format (AF) | Yes |
| RoHS Compatible" | Yes |
| Sector Size | 512e |
| Number of Cameras Supported' | Up to 64 |
| Drive Bays Supported' | Up to 24 |
| Rotational Vibration (RV) Sensors | Yes |
| Native Command Queuing (NCQ) | Yes |
| Shock Sensor | Yes |
| Toshiba Cache Technology | Yes |
| Recording Technology | CMR |
| Rotational Speed [RPM] | 7,200 |
| Max Data Transfer Speed4 [MB/s Typ.] (Sustained) | 281 |
| Cache Size [MB] | 512 |
| 24 x 7 Operation" | Yes |
| Maximum Workload Rate [TB/Year)'·" | 300 |
| MTTF/MTBF [Hours]" | 1,200,000 |
| Unrecoverable Error Rate | 1 per 10" |
| Load/ Unload Cycles | 600,000 |
| Limited Warranty' [Years] | 5 |
| Supply Voltage |
5 VDC +10 / -7 % 12VDC±l0% |
| Power Consumption (Operating) [WJ | 9.07 |
| Power Consumption (Active Idle) [W) | 5.74 |
| Temperature (Operating) [ ' CJ | 0 to 65 (surface) |
| Temperature (Non-operating) [ ' CJ | -40 to 70 |
| Vibration (Operating) {m/ s'] |
7.35 (0.75GI {5 to 300Hz) 2.45 (0.25G} (300 to SOOHz) |
| Vibration (Non-Operating) (m/ s' ] | 29.4 (3.0G) (5 to S00Hz) |
| Shock (Operating) [m/ s'] | 686 {70G} (2 ms duration) |
| Shock (Non-Operating) [m/s'] | 2,450 {250G) (2 ms duration) |
| Acoustics Idle Mode [dB] | 34 |
| Height (mm Max.] | 26.1 |
| Length {mm Max.] | 147.0 |
| Width [mm Max.] | 101.85 |
| Weight [g Max.] | 755 |
| Bottom Holes Type• | TYPEl |
