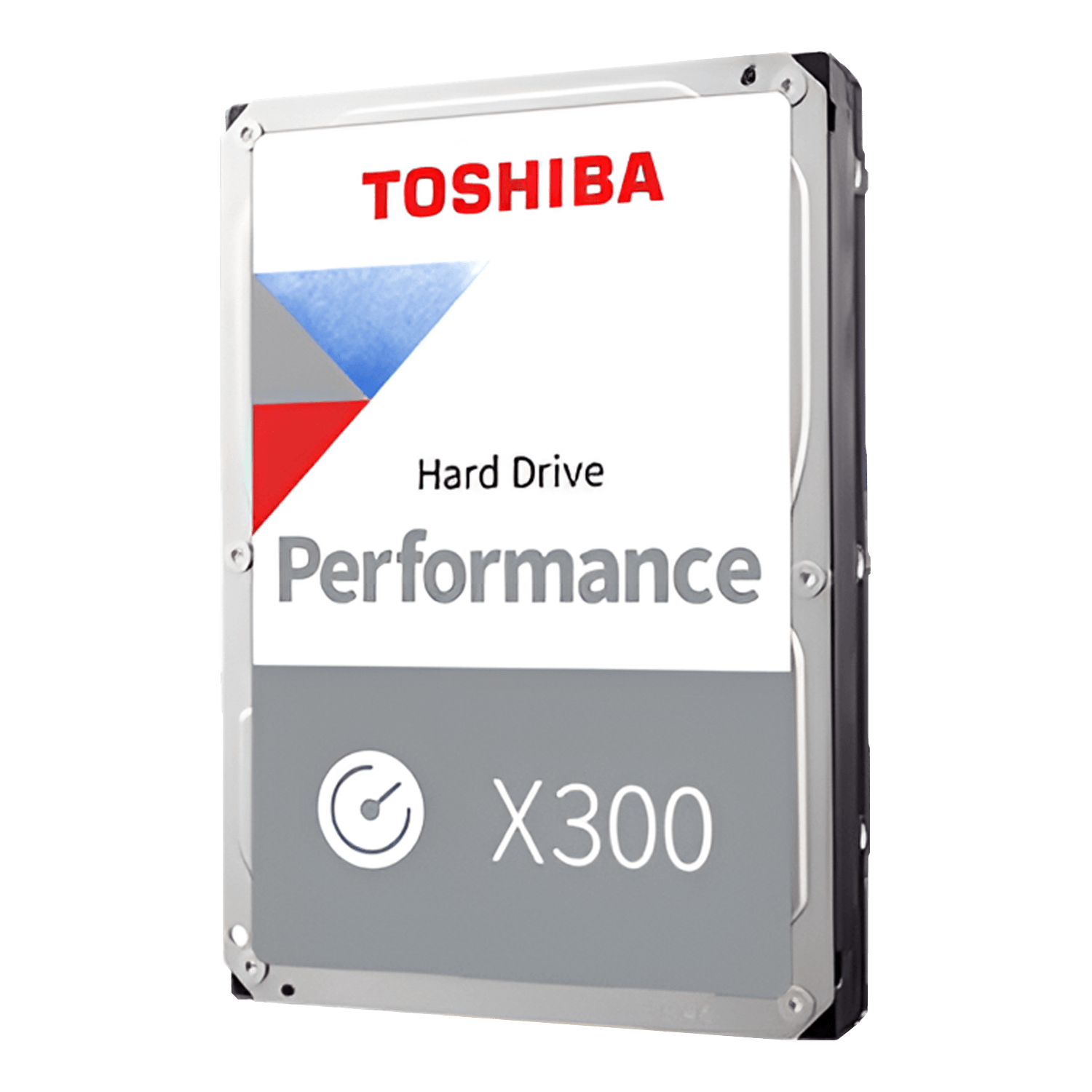

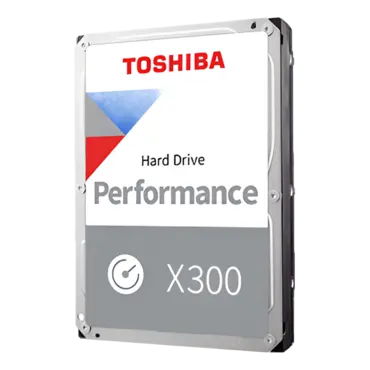

10TB X300 HDWR71AXZSTA, 7200 RPM, SATA 6Gb/s, 512MB cache, 3.5" HDD
Quantity:
- SKU: 18003913
- Manufacturer: TOSHIBA
- MPN: HDWR71AXZSTA
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$236.14
| Capacity' | 10TB |
| Model Number (Retail Packaging) | HDWR71AXZSTA |
| Model Number (Bulk) | HDWR71AUZSVA |
| Interface | SATA 6.0 Gbit/s |
| Form Factor | 3.5-inch |
| Advanced Format (AF) | Yes |
| RoHS Compatible' | Yes |
| Sector Size | 512e |
| Native Command Queuing (NCQ) | Yes |
| Shock Sensors | Yes |
| Toshiba Cache Technology | Yes |
| Ramp Loading Technology | Yes |
| Recording Technology | CMR |
| Rotational Speed [RPM] | 7,200 |
| Cache Size [MB] | 512 |
| Maximum Workload Rate (TB/Year]'$ | 55 |
| MTTF [Hours]' | 600,000 |
| Unrecoverable Error Rate | 1 per 10" |
| Load/Unload Cycles | 600,000 |
| Limited Warranty (Years)' | 2 |
| Supply Voltage | 5 VDC +10 / -7 % 12VDC±10% |
| Power Consumption (Operating) [WI | 9.07 |
| Power Consumption (Active Idle) (WJ | 5.74 |
| Temperature (Operating) ["Cl | 5 to 60 (surface) |
| Temperature (Non-Operating) r CJ | -40 to 70 |
| Vibration (Operating) [m/s') |
7.35 {0.75 G} (5 to300 Hz) 2.45 {0.25 G} (300 to 500 Hz) |
| Vibration (Non-Operating) [m/s') | 29.4 {3.0 GJ (5 to 500 Hz) |
| Shock (Operating) [m/s'] | 686 {70 GJ (2 ms duration) |
| Shock (Non-Operating) [m/s') | 2,450 {250 G) (2 ms duration) |
| Acoustics Idle Mode [dB] | 34 |
| Height [mm Max.] | 26.1 |
| Length [mm Max.] | 147.0 |
| Width [mm Max | 01.85 |
| Weight [g Max.) | 755 |
| Bottom Holes Type | TYPEl |
