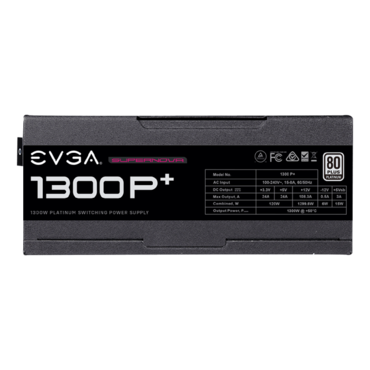

1300 P+, 80 PLUS Platinum 1300W, ECO Mode, Fully Modular, ATX Power Supply
- SKU: 14573449
- Manufacturer: EVGA
- MPN: 220-PP-1300-X1
- Availability: TEMPORARILY OUT OF STOCK
Price
$251.83
| Cable Length | |||||
| ATX Cable | 1x 600mm (m) | ||||
| EPS Cable | 2x 700mm (m) | ||||
| PCIe Cable | 4x 750mm, 2x 750mm, 900mm | ||||
| SATA Cable | 4x 550mm, 650mm, 750mm (m) | ||||
| Four-Pin Peripheral Cable | 2x 550mm, 650mm, 750mm | ||||
| Floppy Adapter | 1x 100mm | ||||
| AC Power | 1x 1800mm (m) | ||||
| Modular Cable Type | Full | ||||
| Connector Quantity | |||||
| 24 Pin ATX | 1x 24pin | ||||
| EPS (CPU) | 2x 8pin (4+4) | ||||
| PCIe | 8x 8pin (6+2) | ||||
| SATA | 12x | ||||
| Four-Pin Peripheral | 6x | ||||
| Floppy | 1x | ||||
| INPUT | |||||
| Input Voltage | 100-240V~ | ||||
| AC Input | 15-8A | ||||
| Input Frequency Range | 60/50Hz | ||||
| Efficiency | 92% or Higher Typical | ||||
| Power Specs | |||||
| Rail | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output | 24A | 24A | 108.3A | 0.5A | 3.0A |
| 120W | 1299.6W | 6W | 15W | ||
| Total | 1300W | ||||
| Additional Details | |||||
| Operating Temperature | 0° to 50° C | ||||
| Japanese Capacitors | 100% | ||||
| ECO Mode | Yes | ||||
| MTBF | 100,000 Hours | ||||
| Net Weight | 8 lbs | ||||
| Size | 86mm (H) x 150mm (W) x 200mm (L) | ||||
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
||||
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing | ||||
| UPC | 843368067656 | ||||
| EAN | 4250812438645 | ||||
