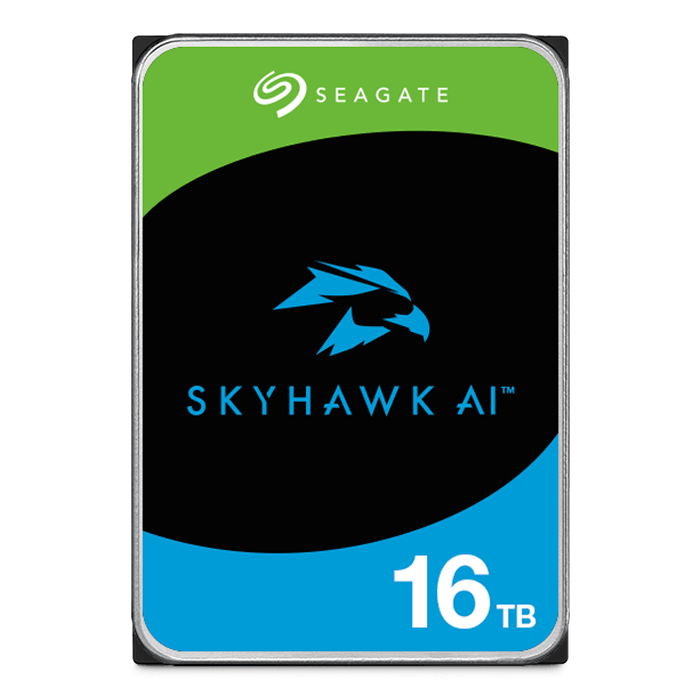

16TB SkyHawk™ AI ST16000VE004, CMR, 7200 RPM, SATA 6Gb/s, 512MB cache, 3.5" HDD
Quantity:
- SKU: 17333236
- Manufacturer: SEAGATE
- MPN: ST16000VE004
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$349.94
| Capacity | 16TB |
| Standard Model Numbers | ST16000VE004 |
| Interface | SATA 6 Gb/s |
| Recording Technology | CMR |
| Drive Design | Helium |
| Features and Performance | |
| Drive Bays Supported | Unlimited |
| AI Channels | 32 |
| AI Real Time Capture Events/Sec | Up to 120 |
| AI Real Time Compare Events/Sec | Up to 96 |
| HD Cameras Supported | Up to 64 |
| RV Sensors | Yes |
| Max Data Transfer Rate (MB/s) | 285/272 |
| Cache (MB) | 512MB |
| Reliability/Data Integrity | |
| Tarnish Resistant | Yes |
| Load/Unload Cycles | 600,000 |
| Non-recoverable Read Errors Rate, Max | 1 per 10E15 |
| Power-On Hours per year | 8,760 |
| Workload Rate Limit (WRL) | 550 |
| Mean Time Between Failures (MTBF) (hours) | 2500000 hr |
| Warranty, Limited (years) | 5 |
| Rescue Data Recovery Services (years) | 3 |
| Power Management | |
| Startup Current, Typical (12V, A) | 2.0 A |
| Average Read/Write Power * (W) | 7.8 |
| Idling Average (W) | 6.3 W |
| Standby Mode/Sleep Mode, Typical (W) | 1.1/1.1 W |
| Voltage Tolerance (5 V) | ±5% |
| Voltage Tolerance (12 V) | ±10% |
| Environmental/Temperature | |
| Operating (Ambient, min °C) | 5°C |
| Operating (drive reported, max °C) | 65°C |
| Non-operating (ambient, min °C) | -40°C |
| Physical | |
| Height (mm/in, max) | 26.1 mm/1.028 in |
| Width (mm/in, max) |
101.85 mm/4.010 in |
| Depth (mm/in, max) | 147.0 mm/5.787 in |
| Weight (g/lb, typical) | 685 g/1.51 lb |
