17.1 inch Hi-Res DVI LCD, USB & PS/2 Keyboard Mouse, Numeric Pad, 24V Power

Quantity:

SKU: 12803305
Manufacturer: NTI
MPN: rackmux-d17hr-n-24v
Availability: USUALLY SHIPS WITHIN 1-3 WEEKS

Starting At

$1,884.84

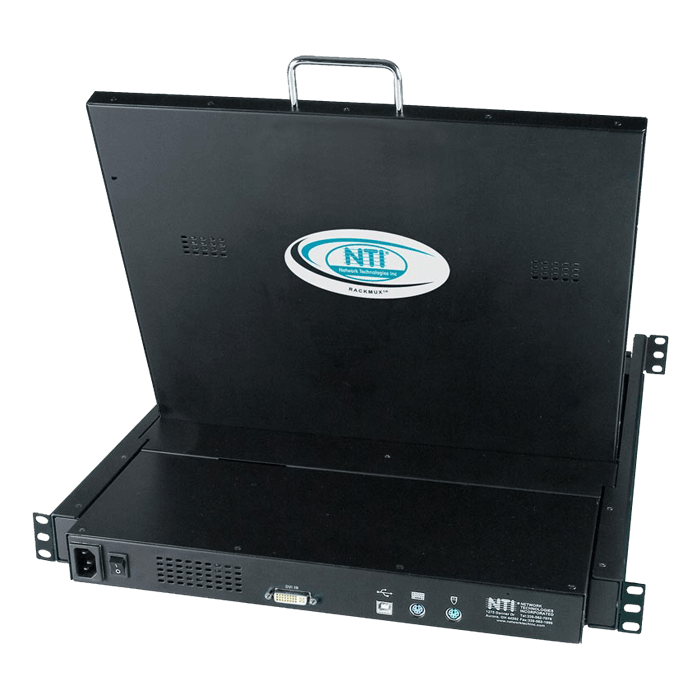

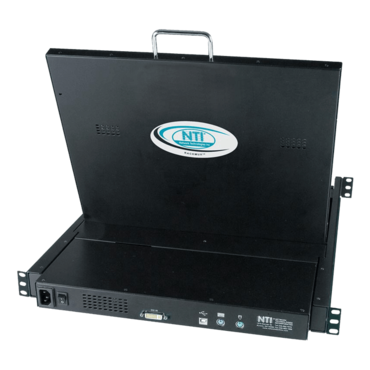

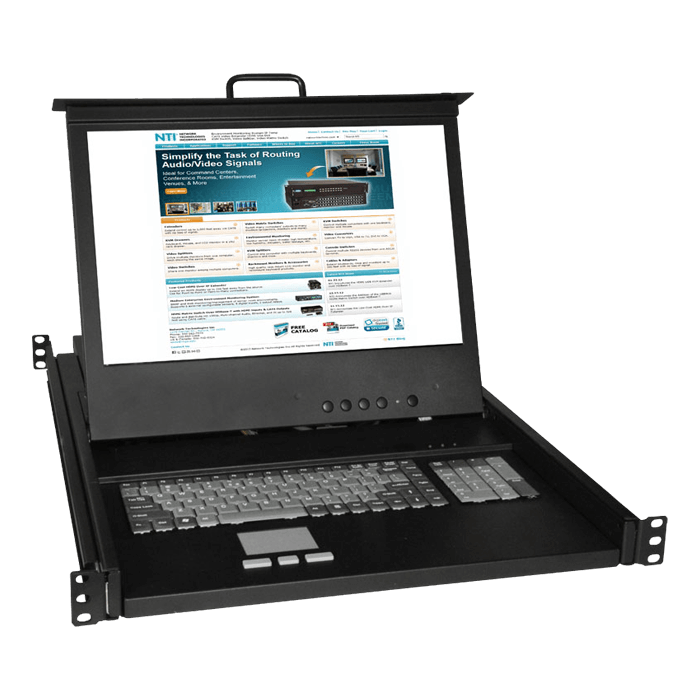

17.1 inch Hi-Res DVI LCD, USB & PS/2 Keyboard Mouse, Numeric Pad, 24V Power
DVI USB PS/2 KVM Drawer Rackmount Keypad Numeric Hi-Res 17 inch

17.1 inch Hi-Res USB & PS/2 Keyboard Mouse, Numeric Pad, 24V Power

17.1 inch Active Matrix LCD flat panel DVI monitor

Compatible with USB and PS/2 computers

Supports resolutions to 1920x1200

17-key numeric keypad

Host Interface	Compatible with PS/2, UNIX and USB-enabled computers. Multiplatform support: Windows 2000/XP/Vista/Server 2000/2003/2008, Solaris, Linux, FreeBSD, and MAC OS 9/10. One female DVI-D, one female USB Type B, and two female 6-pin minDIN connectors. Use with NTI Multi-Platform KVM Switches to control multiple PC, SUN and MAC computers.
Monitor	Forward-folding 17" (432 mm) Active Matrix LCD DVI flat panel monitor. Resolution RACKMUX-D17(-N): 1280x1024 RACKMUX-D17HR-N(-24V): 1920x1200 Tilt: up to 120°. Frequency: RACKMUX-D17(-N): Horzontal: 31 to 80 KHz Vertical: 55 to 76 Hz. RACKMUX-D17HR-N(-24V) Horizontal: 30 to 80 KHz Vertical: 56 to 75 KHz OSD controls for brightness, contrast, phase, pitch, Horz- and Vert-center alignment, zoom and color adjustment. Brightness: RACKMUX-D17(-N): 300 nits RACKMUX-D17HR-N(-24V): 275 nits Contrast Ratio: RACKMUX-D17(-N): 500: 1 RACKMUX-D17HR-N(-24V): 800: 1 Supports DDC1 and DDC2B protocols.
Devices	Keyboard available in: English (US). RACKMUX-D17: 83-key (US) keyboard with wrist-pad. RACKMUX-D17-N, RACKMUX-D17HR-N(-24V): 100-key (US) with numeric keypad Three button touchpad mouse. Front panel USB 1.1 port to connect external USB devices. Female USB Type A connector. KVM drawer must be connected to a USB-enabled computer.
Cables	6.5 foot (2 meters) DVI-D male to male single link cable. 6-foot (1.8-meter) USB Type A male to USB Type B male cable included. 6-foot (1.8-meter) power supply cable included.
Power	RACKMUX-D17(-N), RACKMUX-D17HR-N 110 or 220 VAC at 50 or 60 Hz via IEC connector. Power Consumption: 30 W Maximum Inrush Current: 30A RACKMUX-D17HR-N-24V 3-pin terminal block for 24V power source. Accepts 18~36VDC (24VDC nominal). For installation in a 24V Telecom environment.
Environmental	Operating temperature: 32 to 104°F (0 to 40°C). Storage temperature: -4 to 140°F (-20 to 60°C). Operating and Storage Relative Humidity: 20 to 90% non-condensing RH.
Dimensions	WxDxH: 19x23.9x1.75 Inches. (483x607x44 millimeters) Handle adds an additional 1.5" to the depth when monitor is in closed position. Weight: 30.2 lbs. (14 kg) Drawer is adjustable to various rack depths from 24" (610 mm) deep to 40" (1,016 mm) deep. Drawer locks into place when open to prevent it from sliding in and out of the rack. Rack ears are available for two post style telco rack mounting, select part number RL-T15-TEL.
Regulatory Approvals	CE, RoHS
Warranty	Two years
Package Includes	KVM Drawer 2 keys for lock IEC Power Cord, country-specific (excluded in 24V model) 6-ft USB Type A male to USB Type B male cable 6-ft PS/2 male to male mouse and keyboard cable 2-meter DVI-D male to male video cable CD with manual and drawer installation manual Single-person installation mounting kit

Price

$1,884.84

As low as $157.07/ Month*

$1,884.84
