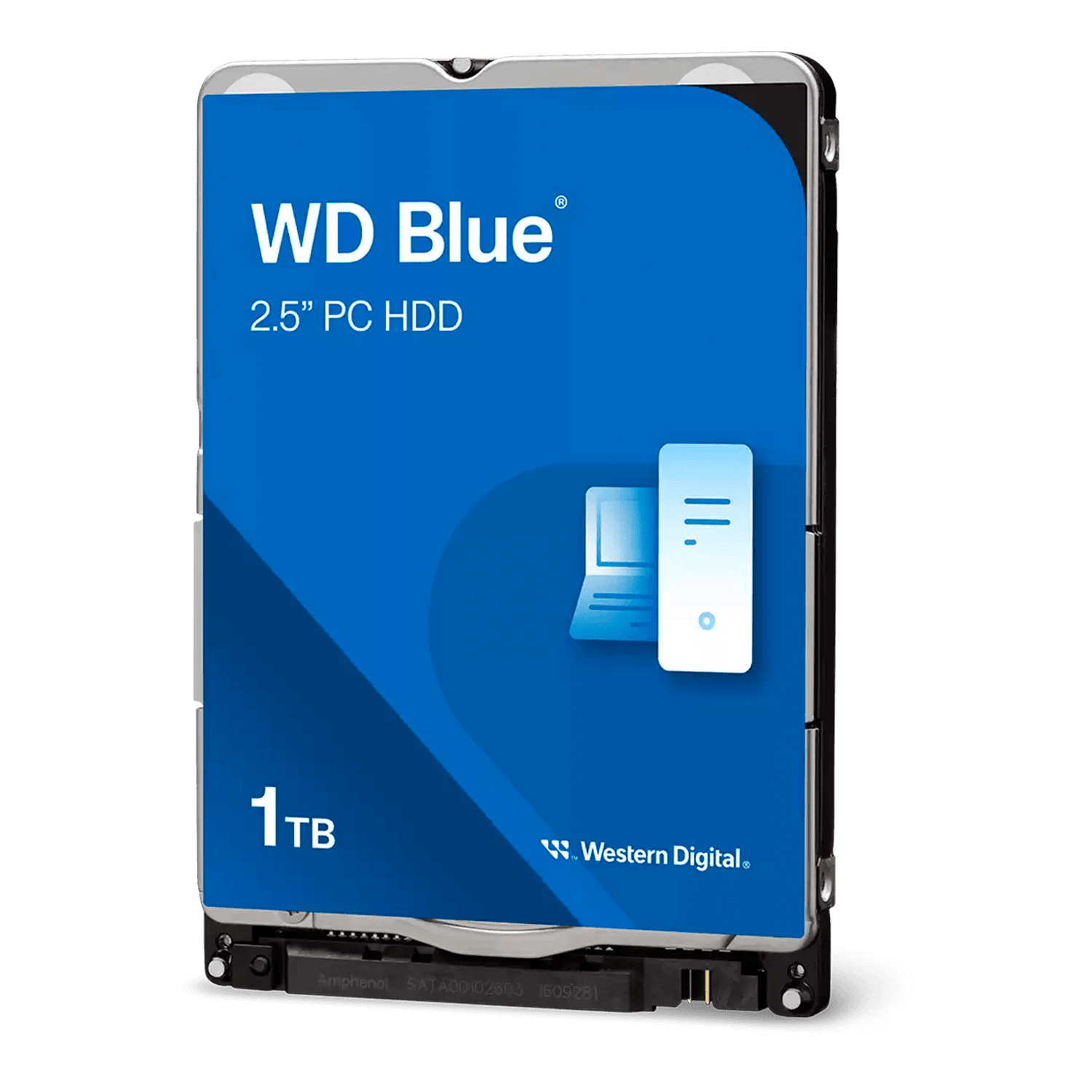

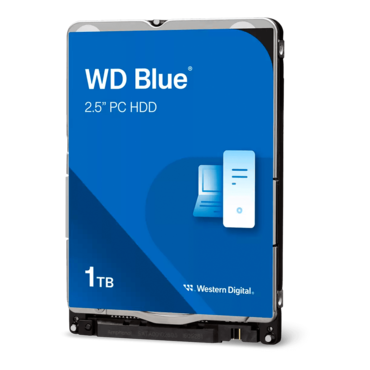

1TB Blue WD10SPZX, 5400 RPM, SATA 6Gb/s, 128MB cache, 2.5" HDD
Single pack WD Blue 1TB 5400 RPM 16MB Cache SATA 6.0Gb/s 2.5" Internal Notebook Hard Drive
Single pack WD Blue 1TB 5400 RPM 16MB Cache SATA 6.0Gb/s 2.5" Internal Notebook Hard Drive
Specifications | 1TB |
Model number | WD10SPZX |
Interface | SATA 6 Gb/s |
Formatted capacity | 1,000,204MB |
Advanced Format (AF) | Yes |
Form factor | 2.5-inch |
RoHS compliant | Yes |
Performance | |
Data transfer rates Interface speed | 6 Gb/s |
Cache (MB) | 128 |
Rotational speed (RPM) | 5400 |
Average drive ready time (sec) | 2,8 |
Reliability/Data Integrity | |
Load/unload cycles | 600 000 |
Non-recoverable read errors per bits read | <1 in 1014 |
Limited warranty (years) | 2 |
Power Management | |
5VDC ±10% (A, peak) | 1,00 |
Average power requirements (W) Read/Write
Idle Standby/Sleep |
1.5
0.5 0.1 |
Environmental Specifications | |
Temperature (°C) Operating Non-operating | 0 to 60
-40 to 65 |
Acoustics (dBA) Idle
Seek (average) |
19
21 |
Physical Dimensions | |
Height (in./mm) | 0.28/7.0 |
Length (in./mm) | 3.94/100.20 |
Width (in./mm) | 2.75/69.85 |
Weight (lb/kg, ± 10%) | 0.20/0.09 |
