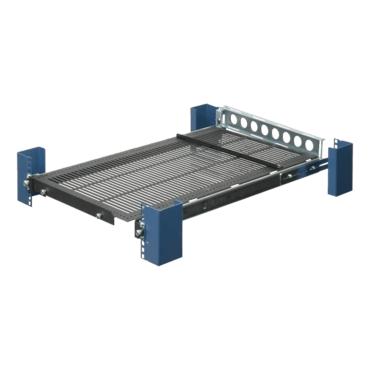

1USHL-115 Sliding Equipment Shelf
Quantity:
- SKU: 4667948
- Manufacturer: RACK SOLUTIONS
- MPN: 1USHL-115
- Availability: LOW STOCK
Starting At
$275.04
- Works in almost any 19" Server Rack or Relay Rack
- Slide mount Servers, Desktops, and Towers
- Supports 110 lbs, 17.7" wide, 28" deep
- Includes cable management arms
- Equipment anti-slide bars front and rear, and anti-slip
- High quality ball-bearing slide rails
- Sliding Rack Mount Shelf Benefits:
- Viable alternative to the OEM Tower to Rack Conversion kits.
- Valuable Capital Asset long after the server is replaced
| Dell Part Number |
1USHL-115 - A0134097 101-0914 - AA107473 |
| Assembly Notes |
Removable, front equipment stop bar Adjustable rear equipment stop bar Optional straps for securing equipment for transport or seismic applications |
| Equipment Depth | Maximum: 26.8" (681 mm) |
| Shelf Type | Vented |
| Rack Type | 4 Post |
| Fixed/Sliding | Sliding |
| Shelf Surface Area | 16.5" W x 26.8" D (419 x 681 mm) |
| Finish | Textured, black, powder coated |
| Mounting Depth Range | 15.5 - 31.5" (394 - 800 mm) |
| Included Hardware | Cage nuts and screws |
| Weight Capacity | 95 lbs (43kgs) |
| Rack Units | 1U |
| Tool-less/Standard | Standard |
| Overall Installation Depth | 15.50” - 31" (393mm - 787mm) |
| Hole Type | Compatible with round, threaded, or square rack holes |
| Amazon ASIN |
1USHL-115 = B00UVK6T5E 115-1526 = B00TJI58V0 |
| TAA Compliant | Yes |
| RoHS Compliant | Yes |
