2-port IEEE-1394b/1-port IEEE-1394a/FireWire Card, PCIe 2.0 x1, Retail
Quantity:
- SKU: 3652615
- Manufacturer: STARTECH.COM
- MPN: PEX1394B3LP
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$64.83
2-port IEEE-1394b/1-port IEEE-1394a/FireWire Card, PCIe 2.0 x1, Retail

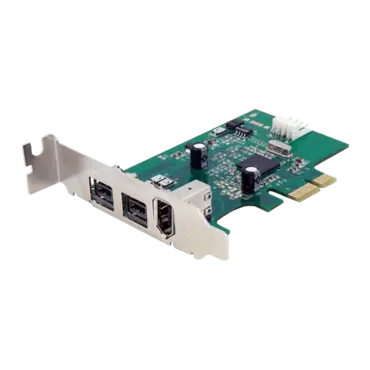

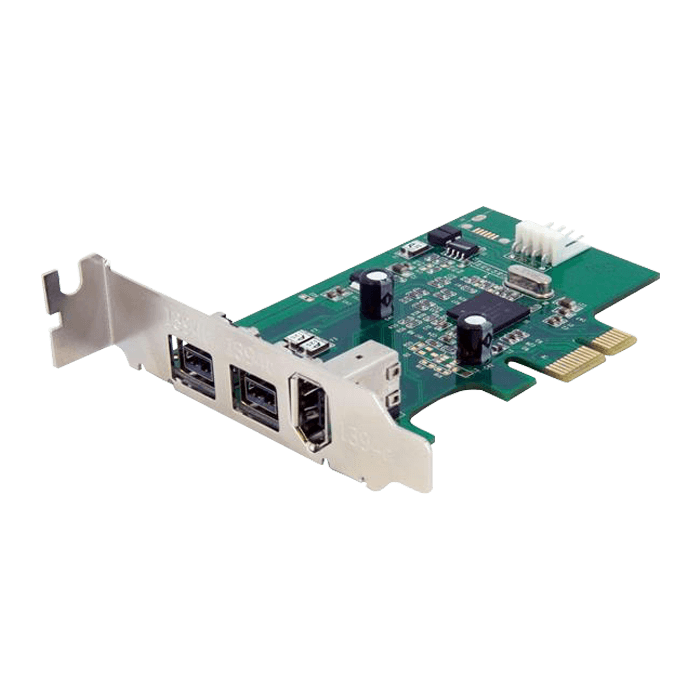

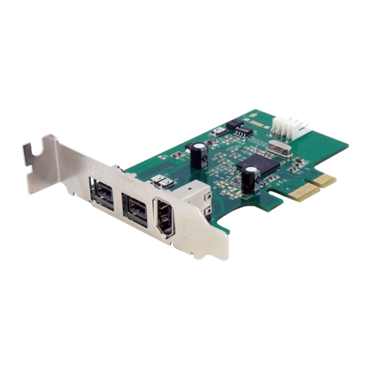

3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter. This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case. The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter. This 3 Port PCI Express FireWire card comes equipped with a low profile bracket for installation in small form factor PCs, and includes an optional full-size bracket for installation in a standard-sized PC case. The FireWire card can be installed in a PCIe slot to add two IEEE1394b (FireWire 800 - 9 pin) ports and one IEEE1394a (FireWire 400 - 6 pin) port, providing broad compatibility with a wide range of FireWire devices (e.g. DV camcorders, external hard drives, digital cameras, etc.).
| Warranty Information | |
|---|---|
| Warranty | Lifetime |
| Hardware | |
| Bus Type | PCI Express |
| Card Type | Low Profile (SP bracket incl.) |
| Chipset ID | Texas Instruments - XIO2213B |
| Industry Standards | IEEE-1394/1394A/1394B
OHCI PCI Express 1.1 |
| Interface | FireWire 800 (1394b) |
| Ports | 3 |
| Performance | |
| Maximum Data Transfer Rate | 800 Mbps |
| Type and Rate | FireWire 800 IEEE-1394b - 800 Mbit/s |
| Connector(s) | |
| Connector Type(s) | 1 - PCI Express x1 Male |
| External Ports | 1 - FireWire 400 (6 pin, IEEE 1394a) Female |
| 2 - FireWire 800 (9 pin, IEEE 1394b) Female | |
| Internal Ports | 1 - LP4 (4 pin, Molex Large Drive Power) Male |
| Software | |
| OS Compatibility | Windows® 2000, XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2016 Mac OS® 10.6 to 10.12 Linux 3.5.x to 4.4.x LTS Versions Only |
| Special Notes / Requirements | |
| System and Cable Requirements | PCI Express enabled computer with an available PCI Express x1 slot or higher |
| Environmental | |
| Humidity | 0~90% RH |
| Operating Temperature | 0°C to 70°C (32°F to 158°C) |
| Storage Temperature | -20°C to 90°C (-4°F to 194°C) |
| Physical Characteristics | |
| Product Height | 0.8 in [20 mm] |
| Product Length | 3.3 in [85 mm] |
| Product Weight | 1.4 oz [40 g] |
| Product Width | 2.3 in [58 mm] |
