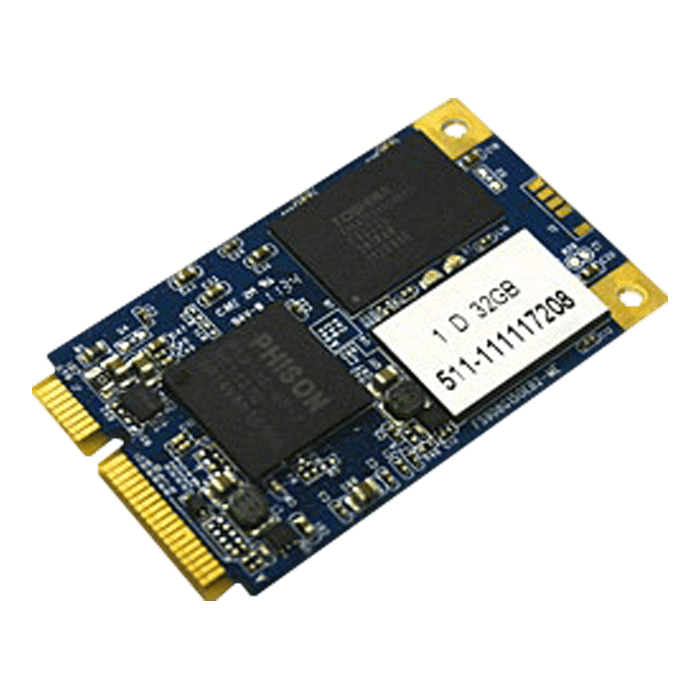

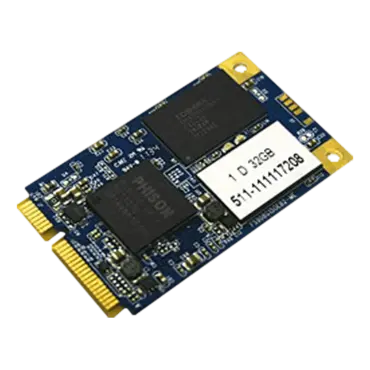

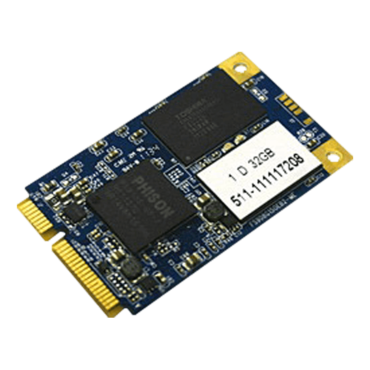

32GB Super Cache SSD, 270/110 MB/s, mSATA Mini SATA PCIe, OEM
mSATA solid state drives are some of the hottest SSDs on the market today, popping up in a variety of the latest mobile devices. MyDigitalSSD now offers the Bullet Proof 50mm mSATA and 50mm DDR2 Super Cache drives featuring blazing fast read/write speeds and extensive storage capacities. mSATA drives are the perfect upgrade solution for increased productivity over stock laptop, netbook, or tablet PC HDDs.
- 1st mSATA SSD with asynchronous DDR2 NAND for fast data transfers and power savings
- 32GB storage capacity
- Blazing fast speeds up to 270MB/s Read and 100MB/s Write
- Best price to performance on the market
- Boot Drive or Cache Drive
Capacity : SKU |
32GB : MDSMS-5032 |
Interface: | SATA II (Serial ATA) |
Form Factor: | 50mm mSATA (MINI SATA PCI-E) |
NAND Flash: | MLC |
Max Read Rate: | 270MB/sec |
Max Write Rate: | 110MB/sec |
4kb Random Read: | 35,000 IOPS |
Access Time: | 0.1 ms |
Dimensions: | 49.73 x 31.5 x 3.26mm |
Operation Temperature: | 0 to 70°C |
Storage Temperature: | -40 to 85°C |
Weight: | < 6g |
RAID Support: | Yes |
TRIM Support: | Yes |
NCQ: | Up to 32 commands |
Input Voltage: | 3V ± 5% |
Idle: | < 0.5W (50 mA) |
Active: | < 0.9W (230 mA Write, 170 mA Read) |
MTBF: | >2,000,000 hours |
Features: |
Sudden power-off recovery Battery backup function High and Reliable ECC capability up to 24bits/sector S.M.A.R.T features optimized for SSD Bit error monitoring and management Dynamic and static wear-leveling Dynamic bad block management SMART commands and additional SSD monitoring |
PC Compatibility |
ASUS Eee Slate EP121 Dell Precision M4500, M4600, M6400, M6500 Fusion Garage JOOJOO Google CR-48 Chrome HP Envy 14 Beats Lenovo K26, K47A, K47G Lenovo IdeaPad Y460, Y470, Y560, Y570 Lenovo ThinkPad T420S, T420, T520, L420, L520, W520, X220 Lenovo ThinkPad Edge E220s, E320, E420s Samsung Series 9 WeTab |
Warranty: | 3 Year |
