WARRANTY INFORMATION |
Warranty |
2 Years |
HARDWARE |
Bus Type |
USB 3.0 |
Chipset ID |
VIA/VLI - VL812 |
Fast-Charge Port(s) |
Yes |
Industry Standards |
USB Battery Charging Specification Rev. 1.2 |
USB 3.0 - Backward compatible with USB 2.0/1.1 |
Interface |
USB 3.0 |
Ports |
4 |
USB-C Device Port(s) |
No |
USB-C Host Connection |
No |
PERFORMANCE |
Maximum Data Transfer Rate |
5 Gbps |
Type and Rate |
USB 3.0 - 5 Gbit/s |
CONNECTOR(S) |
Connector Type(s) |
4 - USB Type-A (9 pin) USB 3.0 Female |

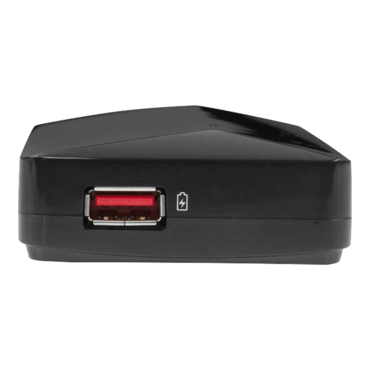

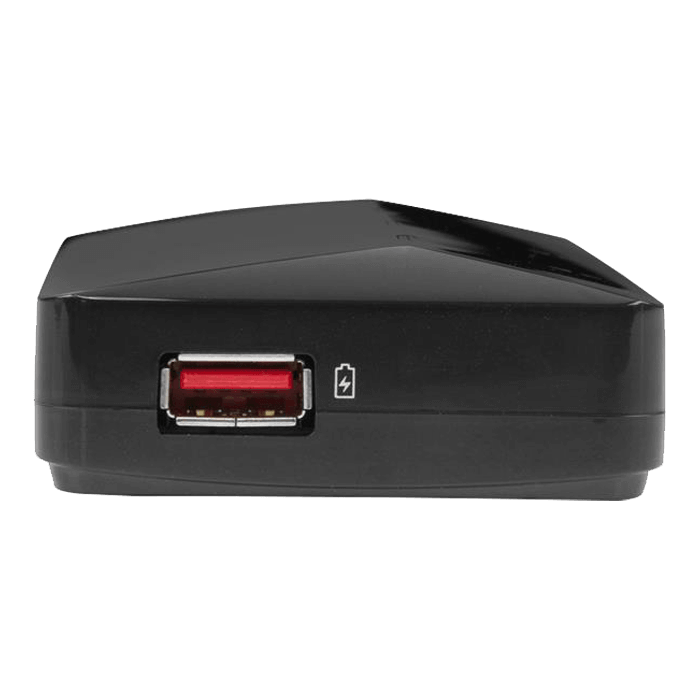

1 - USB 3.0 A (Fast-Charge, 9 pin) Female |
SOFTWARE |
OS Compatibility |
OS Independent; No additional drivers or software required |
SPECIAL NOTES / REQUIREMENTS |
Note |
If connected to a USB 2.0 host port, performance may be limited |
System and Cable Requirements |
Host computer with an available USB 3.0 port |
The included power adapter must be connected to the hub in order for the dedicated charge port (DCP) to function |
INDICATORS |
LED Indicators |
4 - Port status (Blue) |
POWER |
Center Tip Polarity |
Positive |
Input Current |
0.6 A |
Input Voltage |
100 - 240 AC |
Output Current |
2A |
Output Voltage |
12V DC |
Plug Type |
N |
Power Consumption (In Watts) |
24 |
Power Source |
AC Adapter Included |
ENVIRONMENTAL |
Humidity |
10% ~ 90% RH (Non-condensing) |
Operating Temperature |
0°C to 40°C (32°F to 104°F) |
Storage Temperature |
-10°C to 70°C (14°F to 158°F) |
PHYSICAL CHARACTERISTICS |
Color |
Black |
Form Factor |
Desktop |
Material |
Plastic |
Product Height |
0.9 in [2.2 cm] |
Product Length |
4.1 in [10.3 cm] |
Product Width |
2.4 in [60 mm] |
Weight of Product |
2.6 oz [75 g] |
PACKAGING INFORMATION |
Package Height |
2.1 in [53 mm] |
Package Length |
5.9 in [15.1 cm] |
Package Width |
8.5 in [21.6 cm] |
Shipping (Package) Weight |
14.5 oz [411 g] |

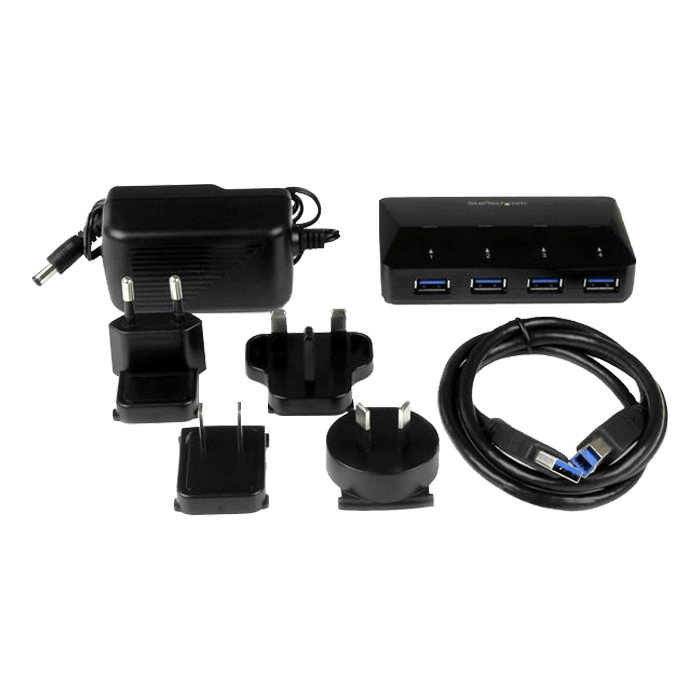

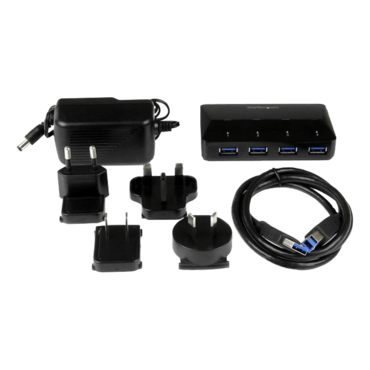

WHAT'S IN THE BOX |
Included in Package |

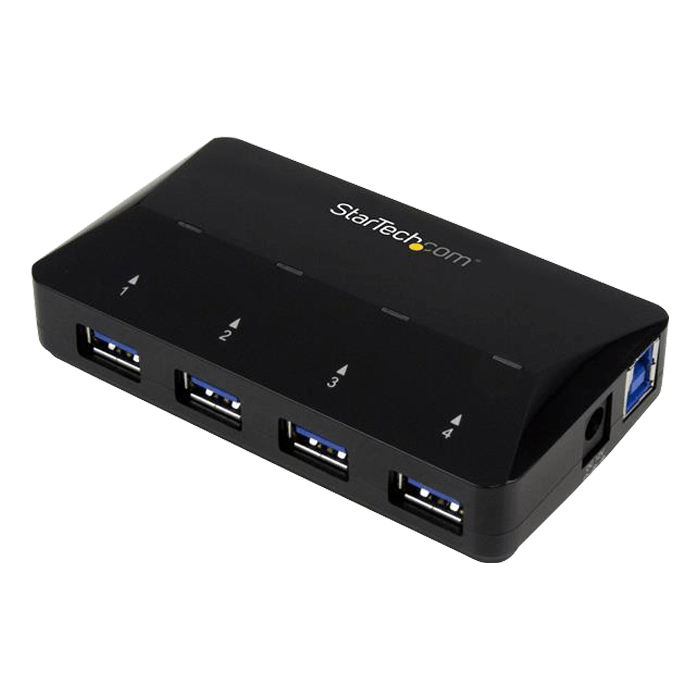

1 - 4-port USB 3.0 hub + 2.4A dedicated charging port |
1 - USB 3.0 host cable |
1 - universal power adapter (NA/EU/UK/AU) |
