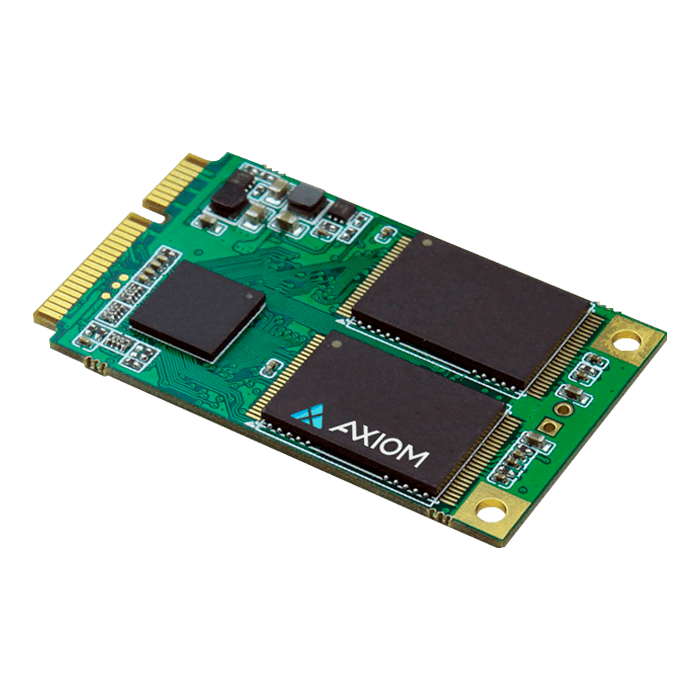

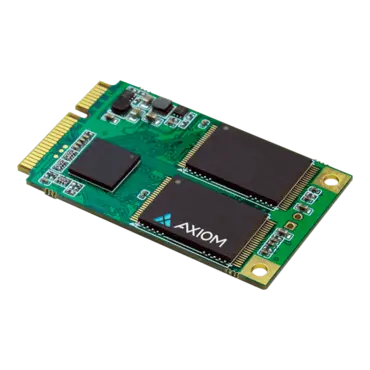

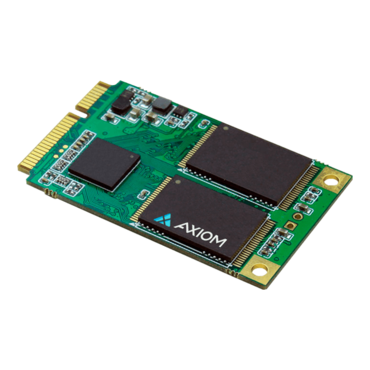

480GB C550n, 550 / 485 MB/s, 3D NAND, SATA 6Gb/s, mSATA SSD - TAA Compliant
Quantity:
- SKU: 11523640
- Manufacturer: AXIOM
- MPN: AXG97563
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$43.32
| Capacity | 480GB |
| Features |
• Silicon Motion SM2258 controller • SATA 3.1 Compliant • SATA 6.0Gb/s with 3Gb/s and 1.5Gb/s support • ATA/ATAPI-8-ACS3 command set compliant • SLC caching accelerates burst performance • Direct-to-MLC mode • Global wear leveling • StaticDataRefresh technology • Intelligent garbage collection • Industry-standard, 512-byte sector size support • Hot-plug capable • LDPC hard and soft decode ECC • DEVSLP support • Internal flash RAID-like parity scheme • Field-upgradeable firmware • Native Command Queuing (NCQ) support • TRIM Command Support • Temperature Management • S.M.A.R.T. support |
| Performance |
• Sequential Read: Up to 550MB/s • Sequential Write: Up to 485MB/s • Random Read: Up to 64K IOPS (4K block size) • Random Write: Up to 76K IOPS (4K block size) |
| Endurance |
• TBW: Up to 320TB • DWPD (3yr): 0.58 |
| Security |
• User Selectable Password (if BIOS supported) • Secure Erase (Factory Reset - ATA) |
| Reliability |
• MTBF: 1.5 million device hours* • Low Density Parity Check (LDPC) ECC • Static and dynamic wear leveling • Uncorrectable Bit Error Rate: =1 sector per 1016 bits read |
| Electrical/Mechanical |
• +3.3VDC (±5%) power supply • Power Consumption: up to 2.1W (Active), 0.09W (Idle) • Dimensions: MO-300: 50.8 x 30.0 x 4.8 mm • Weight: 0.013lb |
| Environmental |
• Operating temperature: 0-70°C • Non-Operating temperature: -40-85°C • Operating humidity: 5-95% relative • Shock: 1500G/0.5ms • Vibration: 2-500Hz, 3.1G |
| RoHS Compliant | |
| TAA Compliant | |
|
Note: As used for storage capacity, one gigabyte (GB) = one billion bytes. Total accessible capacity varies depending on operating environment *Based on Telcordia SR-332 reliability prediction procedure. |
|
