General |
Brand |
Mushkin Enhanced |
Series |
DCX |
Model |
MKNSSDDC480GB |
Type |

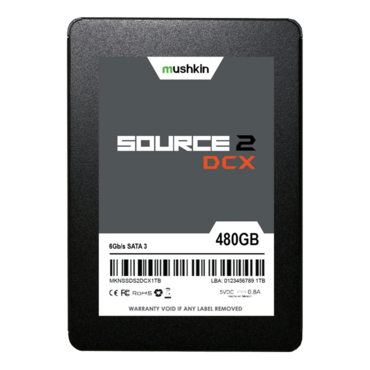

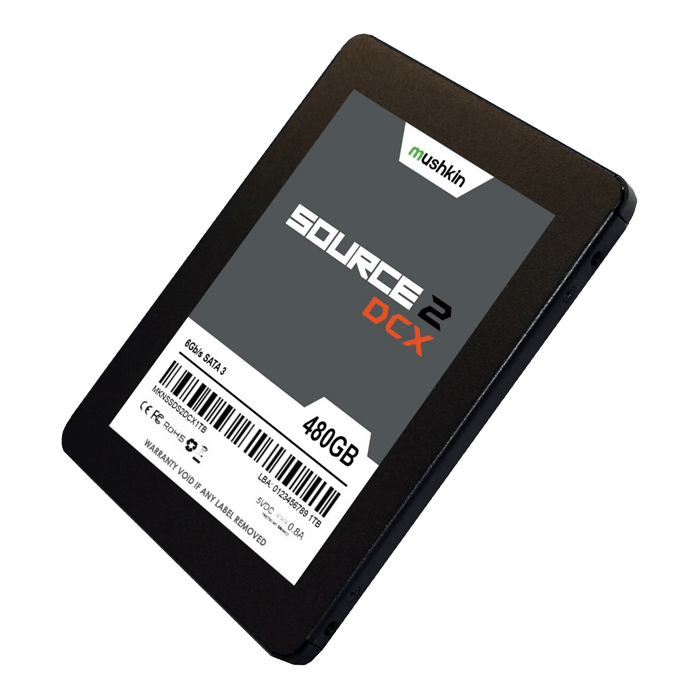

7mm Internal Solid State Drive (SSD) |
Used For |
Consumer |
UPC |
846651029607 |
Physical |
Form Factor |
2.5" |
Capacity |
480GB |
Interface |
SATA 6Gb/s |
Controller |
Silicon Motion |
Height |
7mm |
Width |
69.85mm |
Depth |
100.45mm |
Weight |
50g |
Performance |
Max Sequential Read |
Up to 560MB/s |
Max Sequential Write |
Up to 470MB/s |
4KB Random Read |
Up to 80,000 |
4KB Random Write |
Up to 7,300 |
Seek Time |
<0.1ms |
TBW |
225 (0.25 DWPD) |
MTBF |
1,500,000 hours |
Features |
Features |
MEDS (Mushkin Enhanced Data-protection Suite) ensures valuable data is protected |
- Built-in LDPC ECC provides the most-powerful error correction method in use today |
- Data shaping increases endurance |
- StaticDataRefresh ensures data integrity |
- Global wear-leveling evens program/erase counts across data blocks to extend lifespan |
512MB DRAM |
Power Loss Protection (PLP) enhances data integrity in the event of an unexpected power loss |
Self-encrypting Drive (SED) with IEEE1667 (eDrive) and TCG Opal support |
SLC caching accelerates burst performance |
TRIM support (OS/driver support required) |
High-reliability NAND flash |
S.M.A.R.T. support |
Supports Security Erase |
Temperature sensor |
RoHS, FCC, CE |
Power Consumption (Idle): 0.08W |
Power Consumption (Active): 3W |
Max sequential speeds and IOPS measured using CrystalDiskMark 6.0.2 x64 |
Environmental |
Operating Temperature |
0°C-70°C |
Storage Temperature |
-40°C-85°C |
Max Shock Resistance |
1500G |
Power Supply |
5V DC |
