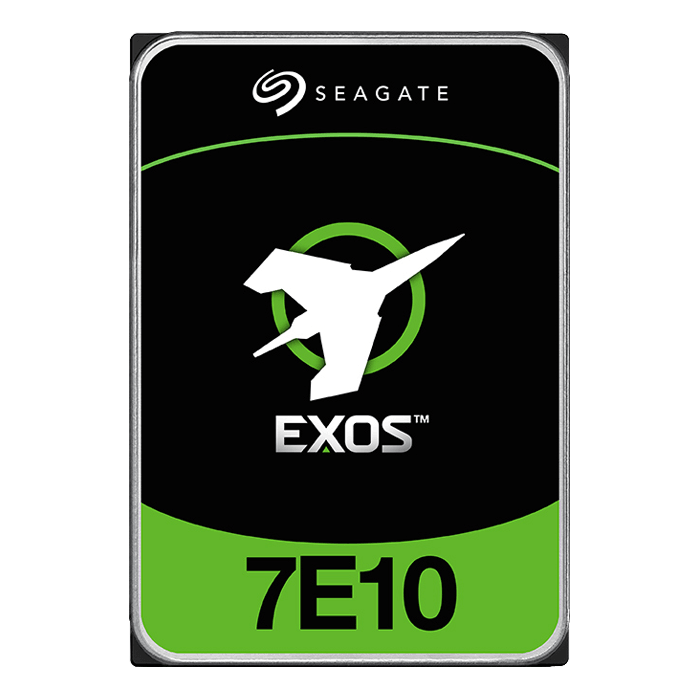

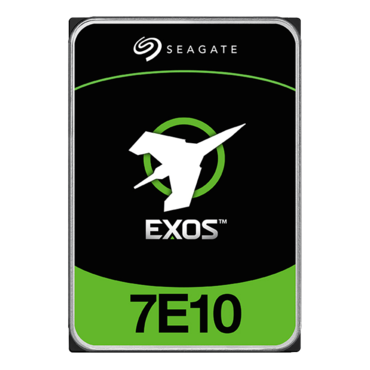

4TB Exos® 7E10 ST4000NM027B, FastFormat™, 7200 RPM, SAS 12Gb/s, 512e/4Kn, 256MB cache, SED, TCG Enterprise SSC, 3.5" HDD
Quantity:
- SKU: 14690802
- Manufacturer: SEAGATE
- MPN: ST4000NM027B
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$172.23
| Specifications | 512e/4KN (FastFormat) SAS |
| Capacity | 4 TB |
| Standard | — |
| PowerBalance™ Model ∗∗ | — |
| Seagate Secure™ SED Model1 ∗∗ | ST4000NM027B |
| Seagate Secure SED-FIPS 140-3 Model1 ∗∗ | — |
| **not all models will be generally offered as standard configurations | — |
| Features | |
| Protection Information (T10 DIF) | Yes |
| SuperParity | Yes |
| Low Halogen | Yes |
| PowerChoice™ Technology | Yes |
| PowerBalance Technology | Yes |
| Cache, Multi-segmented (MB) | 256 |
| Advanced Write Caching (8M internal NOR flash) | Yes |
| Reliability/Data Integrity | |
| Vibration, Non-operating: 10 Hz to 500 Hz (Grms) | 5 |
| Mean Time Between Failures (MTBF, hours) | 2 000 000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0,44% |
| Non-recoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year | 8 760 |
| Bytes per Sector | 512, 520, 528 |
| Warranty, Limited (years) | 5 |
| Performance | |
| Spindle Speed (RPM) | 7 200 |
| Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 |
| Max. Sustained Transfer Rate OD | 250MB/s |
| Average Latency (ms) | 4,16 |
| Interface Ports | Dual |
| Rotational Vibration @ 1,500 Hz (rad/s²) | 12,5 |
| Power Consumption | |
| Idle Power, Average (W) | 5,9 |
| Typical Operating, Random Read (W) | 10,3 |
| Power Supply Requirements | +12 V and +5 V |
| Environmental | |
| Temperature, Operating (°C) Drive Reported | 5 ~ 60 |
| Shock, Operating 2 ms Read/Write (Gs) | 70/40 Gs |
| Shock, Non-operating, (1 ms/2 ms) (Gs) | 150/300 |
| Physical | |
| Height (in/mm, max)2 | 1.028 in/26.11 mm |
| Width (in/mm, max)2 | 4.01 in/101.85 mm |
| Depth (in/mm, max)2 | 5.787 in/147 mm |
| Weight (lb/g) | 620 g/1.37 lb |
| Carton Unit Quantity | 20 |
| Cartons per Pallet / Cartons per Layer | 40/8 |
