4X4-7735U/D5, AMD SoC, AMD Ryzen™ 7 7735U, DDR5-4800 64GB ECC SO-DIMM / 2, DisplayPort, USB 3.2 Gen2 (Type-C) / 2, 2.5GbLAN, 1GbLAN, 4X4 Retail
Quantity:
- SKU: 16205649
- Manufacturer: ASROCK
- MPN: 4X4-7735U/D5
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$173.63
- AMD Ryzen™ 7 7735U
- 2 x 262-pin SO-DIMM up to 64GB DDR5 4800 MHz
- 2 x USB4, 2 x USB 3.2 Gen2, 2 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x COM, 1 x SATA3
- 1 x Realtek 1 Gigabit LAN (support DASH), 1 x Realtek 2.5 Gigabit LAN
- Supports Quad display, 1 x HDMI 2.1, 3 x DP 1.4a (2 from Type C)
- TPM 2.0 onboard IC
- 12V~19V DC-In
| Form Factor | |
| Dimensions | 4X4 (4.09-in x 4.02-in x 1.4-in, 10.4 cm x 10.2 cm x 3.6 cm |
| Processor System | |
| CPU | AMD Ryzen™ 7 7735U(Max Speed up to 4.75GHz) |
| Chipset | SoC |
| BIOS | AMI SPI 256 Mbit |
| Memory | |
| Technology | Dual Channel DDR5 4800 MHz |
| Capacity | 64GB (32 GB per DIMM) |
| Socket | 2 x 262-pin SO-DIMM |
| Graphics | |
| Controller | AMD Radeon™ Graphics |
| HDMI |
HDMI 2.1 Max resolution up to 7680 x 4320@60Hz |
| DisplayPort |
DisplayPort 1.4a, DP++ Max resolution up to 4096x2160@60Hz |
| MultiDisplay | Max 4 display (Included 2 outputs from Type C) |
| Expansion Slot | |
| M.2 | 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless |
| Audio | |
| Interface | Realtek ALC233, High De?nition Audio. |
| Ethernet | |
| Controller/ Speed |
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps LAN2: Realtek RTL8111EPV with 10/100/1000 Mbps,support DASH function |
| Connector | 2 x RJ-45 |

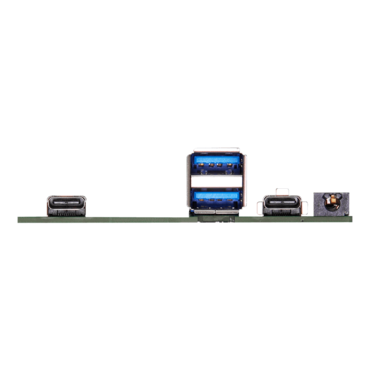

| Front I/O | |
| USB |
2 x USB 3.2 Gen2 (Type A) 2 x USB4 (5V/3A, Supports DP 1.4a display output) |
| Audio | 1 (headphone & microphone jack) |

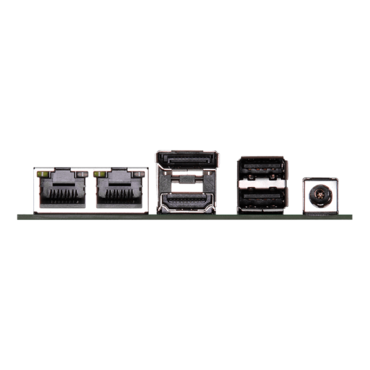

| Rear I/O | |
| HDMI | 1 x HDMI 2.1 |
| DisplayPort | 1 x DP 1.4a |
| Ethernet | 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN |
| USB | 2 x USB 2.0 |
| DC Jack | 1 |
| Internal Connector | |
| USB | 2 x USB 2.0 (1 x 2.00mm pitch header) |
| COM | 1 x COM (RS-232/422/485) |
| TPM | TPM 2.0 onboard IC |
| Storage | |
| M.2 |
1 x M.2 (Key M, 2242/2260/2280) with PCIe Gen4 x 4 for SSD *M.2 Key M 2280 (Supported by bracket) |
| SATA | 1 x SATA3.0 (6.0 Gb/s) |
| Watchdog Timer | |
| Output | From Super I/O to drag RESETCON# |
| Interval | 256 Segments 0,1,2....255sec |
| Power Requirements | |
| Input PWR | 12V~19V DC-In Jack |
| Power On |
AT/ATX supported -AT: Direct PWR on as power input ready -ATX:Press button to PWR on after power input ready |
| Environment | |
| Operating Temp | 0ºC ~ 60ºC |
| Storage Temp | -40° C ~ 85° C |
| Operating Humidity | 5% ~ 90% |
| Storage Humidity | 5% ~ 90% |
