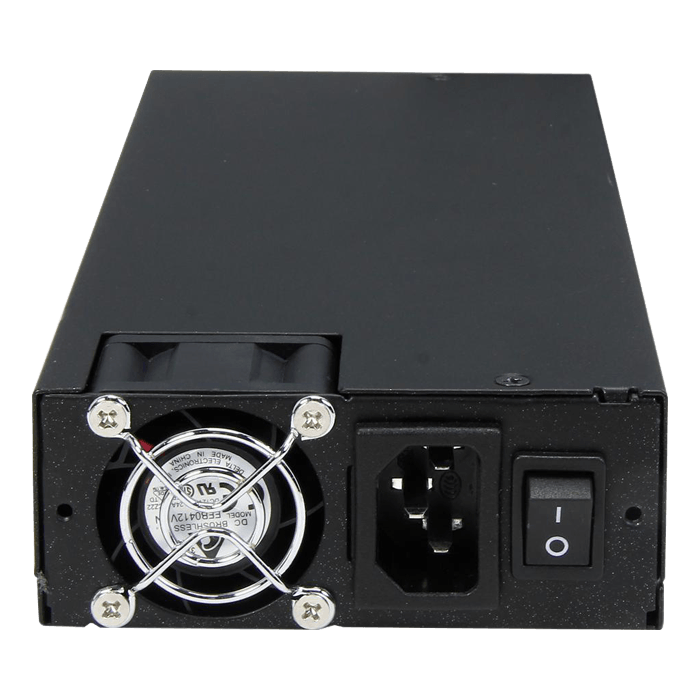

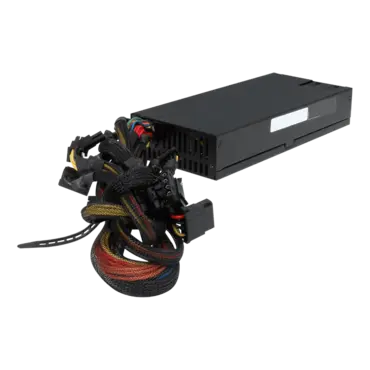

500 G1, 80 PLUS Gold 500W, 1U Power Supply
Quantity:
- SKU: 12673605
- Manufacturer: EVGA
- MPN: 101-G1-0500-BR
- Availability: IN STOCK
Starting At
$99.00
| Model | |
| Brand | EVGA |
| Model | 101-G1-0500-BR |
| Details | |
| Maximum Power | 500W |
| Fans | 1 |
| Main Connector | 24Pin |
| +12V Rails | Single |
| PCI-Express Connector | 2 x 6+2-Pin |
| SATA Power Connector | 4 |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 8A |
| Output | +3.3V@20A, +5V@20A, +12V@40A, [email protected], [email protected] |
| Approvals | TUV, cUL, UL, CE, FCC, WEEE, RoHS |
| Dimensions | 1.60" x 3.90" x 8.66" (H x W x D) |
| Weight | 4.00lbs |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Features | |
| Connectors | 24 Pin ATX: 1x
EPS (CPU): 1x 8pin (4+4) PCIE: 2x 8pin (6+2) SATA: 2x Four-Pin Peripheral: 4x |
