500GB FireCuda 530, w/ Heatsink, 7000 / 3000 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD
Quantity:
- SKU: 14630293
- Manufacturer: SEAGATE
- MPN: ZP500GM3A023
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$111.61
500GB FireCuda 530, w/ Heatsink, 7000 / 3000 MB/s, 3D TLC NAND, PCIe NVMe 4.0 x4, M.2 2280 SSD
FireCuda 530 Heatsink 500GB

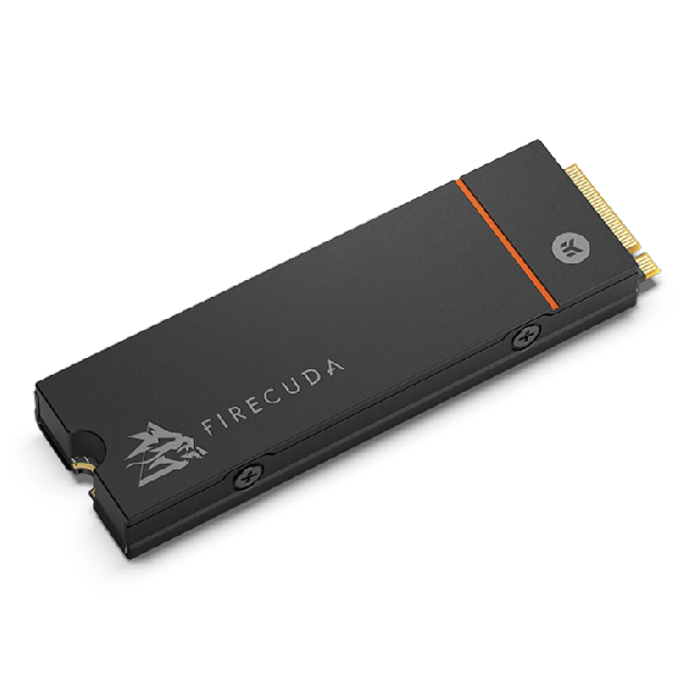

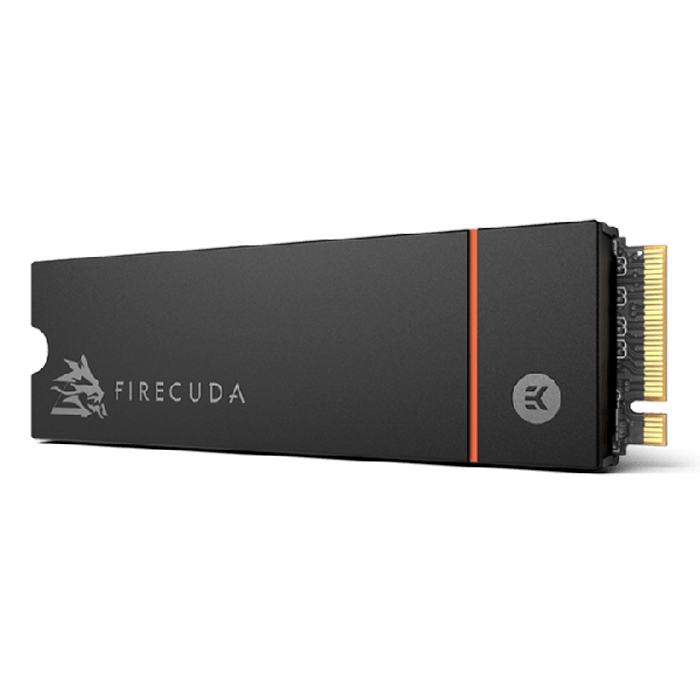

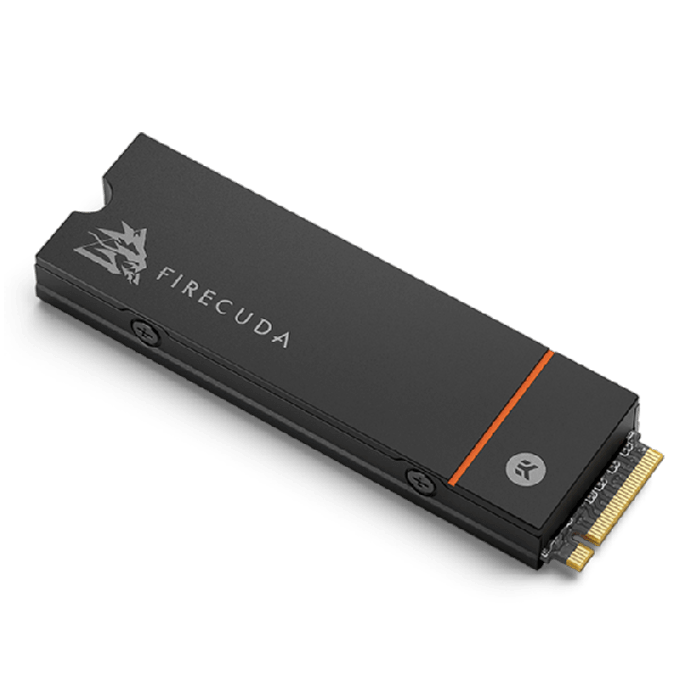

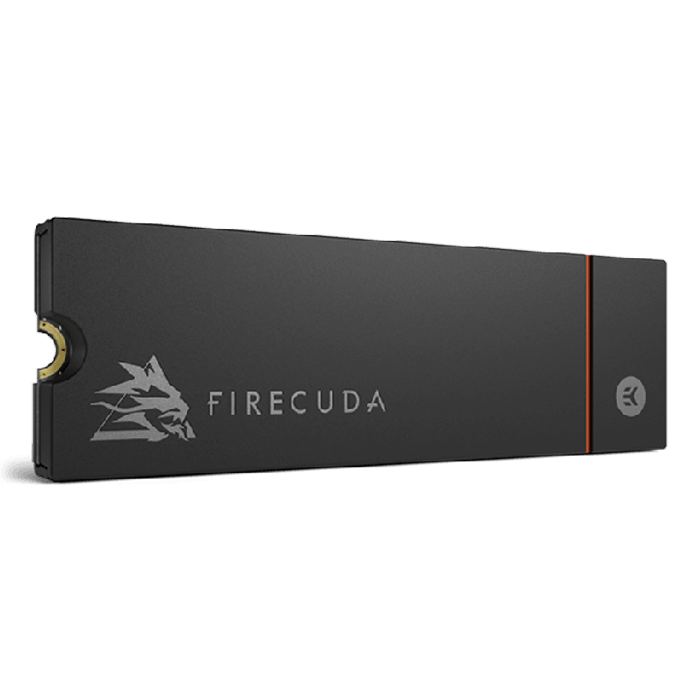

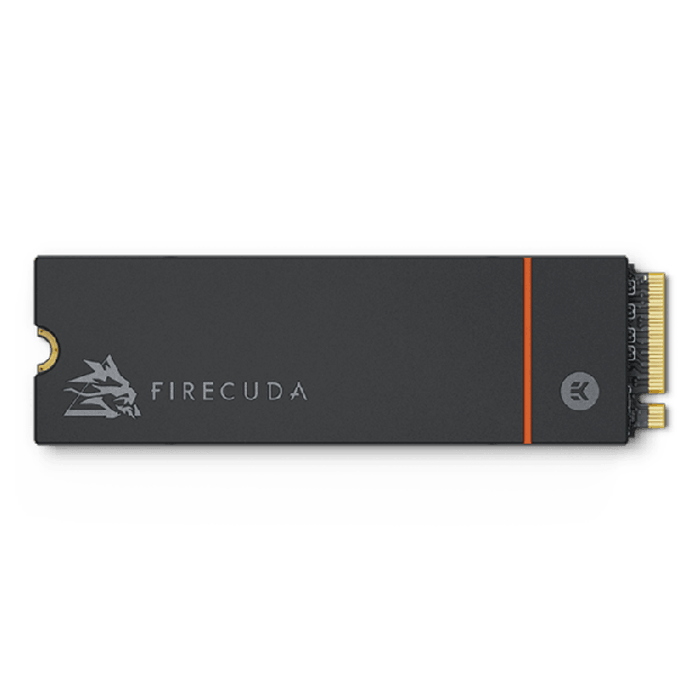

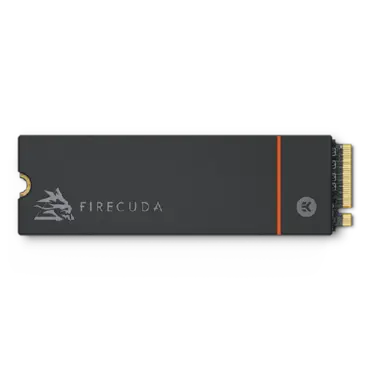

FireCuda 530 with heatsink offers a minimalist design, anodized aluminum body, and finely textured micropore surface to improve heat transfer and lower SSD temps—making it super-efficient at maximum cooling to maintain peak performance
for longer periods of time.
FireCuda 530 with heatsink is also compatible with PS5™ systems. Our built-in SSD and heatsink combo meets PS5 specs on performance and dimensions.
- Blistering transfer speeds of up to 7300MB/s
- Absolute power to make content creations apps run faster and smoother
- Lightning-fast video rendering and exporting
- Responsive performance built for accelerated gaming and sustained abuse—record, download, rewrite, repeat
| Specifications | 500GB |
| Standard Model (TCG Pyrite) | ZP500GM30023 |
| Interface | PCIe Gen4 ×4 NVMe 1.4 |
| NAND Flash Memory | 3D TLC |
| Form Factor | M.2 2280 with heatsink 1 |
| Performance | |
| Sequential Read (Max, MB/s), 128KB2 | 7000 |
| Sequential Write (Max, MB/s), 128KB2 | 3000 |
| Random Read (Max, IOPS), 4KB QD32 T82 |
400 000 |
| Random Write (Max, IOPS), 4KB QD32 T82 |
700 000 |
| Endurance/Reliability | |
| Total Bytes Written (TB) | 640 |
| Mean Time Between Failures (MTBF, hours) | 1 800 000 |
| Rescue Data Recovery Services (years)3 |
3 |
| Warranty, Limited (years) | 5 |
| Power Management | |
| Active Power, Average (W) | 5,8 |
| Idle Power PS3, Average (mW) | 14 |
| Low Power L1.2 mode (mW) | <5 |
| Environmental | |
| Temperature, Operating Internal (°C) | 0°C – 70°C |
| Temperature, Nonoperating (°C) | -40°C – 85°C |
| Shock, Nonoperating: 0.5ms (Gs) | 1500 |
| Special Features | |
| TRIM | Yes |
| S.M.A.R.T. | Yes |
| Halogen Free | Yes |
| RoHS Compliance | Yes |
| Physical | |
| Length (mm/in, max) | 80.15mm/3.156in |
| Width (mm/in, max) | 24.2mm/0.953in |
| Height (mm/in, max) | 9.84mm/0.388in |
| Weight (g/lb) | 47g/0.104lb |
| 1 Please verify that your system provides enough space for installation. The FireCuda 530 with heatsink exceeds dimensions of a standard M.2 2280 form factor. Heatsink is pre-installed and should not be removed as it can damage the SSD. 2 Fresh out of box (FOB) performance obtained on newly formatted drive. Performance may vary based on SSD’s firmware version, system hardware, and configuration. Performance based on CrystalDiskMark v.7.0.0 x64 on Windows 10 host with PCIe Gen4 motherboard. 3 Rescue Data Recovery Services not available in all countries. |
|
