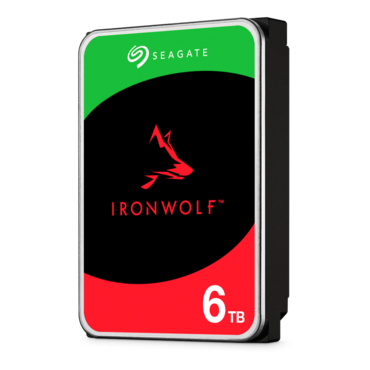

6TB IronWolf ST6000VN001, 5400 RPM, SATA 6Gb/s, 256MB cache, 3.5" HDD
Quantity:
- SKU: 13214706
- Manufacturer: SEAGATE
- MPN: ST6000VN001
- Availability: LOW STOCK
Starting At
$166.61
| Drive Specification | ST6000VN001 |
| Formatted capacity (512 bytes/sector) | 6000GB (6TB) |
| Guaranteed sectors | 11,721,045,168 |
| Heads | 8 |
| Disks | 4 |
| Bytes per sector (emulated at 512-byte sectors) | 4096 (physical) |
| Default sectors per track | 63 |
| Default read/write heads | 16 |
| Default cylinders | 16,383 |
| Recording density | 2197 kB/in |
| Track density (avg) | 540 ktracks/in |
| Areal density (avg) | 900 Gb/in2 |
| SATA interface transfer rate | 600 MB/s |
| Maximum data transfer rate | 190 MB/s |
| ATA data-transfer modes supported | PIO modes: 0 to 4
Multiword DMA modes: 0 to 2 Ultra DMA modes 0 to 6 |
| Cache buffer | 256MB |
| Height (max) | 26.1mm / 1.028 in |
| Width (max) | 101.6mm (± 0.25) / 4.0 in (± 0.010) |
| Length (max) | 146.99mm / 5.787 in |
| Weight (typical) | 610g / 1.345 lb |
| Average latency | 6.0 ms |
| Power-on to ready (typ) | 15.0s |
| Standby to ready (typ) | 15.0s |
| Startup current (typical) 12V | 1.8A |
| Voltage tolerance (including noise) | 5V ±5%
12V ±10% |
| Non-Operating (Ambient °C) | –40° to 70° |
| Operating ambient temperature (min °C) | 5° |
| Operating temperature (drive case max °C) | 70° |
| Temperature gradient | 20°C per hour max (operating)
30°C per hour max (non-operating) |
| Relative humidity | 5% to 90% (operating)
5% to 95% (non-operating) |
| Relative humidity gradient (max) | 30% per hour |
| Wet bulb temperature (max) | 30°C max (operating)
40°C max (non-operating) |
| Altitude, operating | –304m to 3048m
(–1000 ft to 10,000 ft) |
| Altitude, non-operating
(below mean sea level, max) |
–304m to12,192m
(–1000 ft to 40,000+ ft) |
| Operational shock (max) | 70 Gs at 2ms |
| Non-operational shock (max) | 250 Gs at 2ms |
| Vibration, operating | 10Hz to 22Hz: 0.25 Gs, Limited displacement
22Hz to 350Hz: 0.50 Gs 350Hz to 500Hz: 0.25 Gs |
| Vibration, non-operating | 5Hz to 22Hz: 3.0 Gs
22Hz to 350Hz: 3.0 Gs 350Hz to 500Hz: 3.0 Gs |
| Drive acoustics, sound power | |
| Idle | 2.6 bels (typical)
2.7 bels (max) |
| Seek | 2.7 bels (typical)
2.8 bels (max) |
| Non-recoverable read errors | 1 per 1014 bits read |
| Load/unload cycles | 600,000 at 25°C, 50% rel. humidity |
| Supports hotplug operation per the
Serial ATA Revision 3.2 specification |
Yes |
