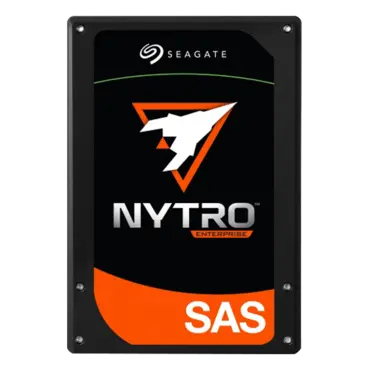

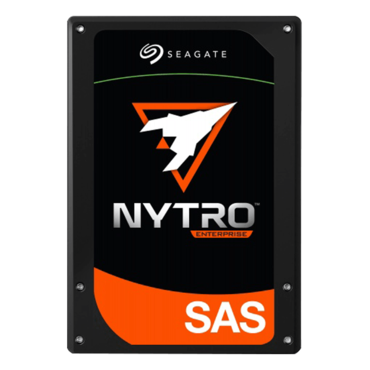

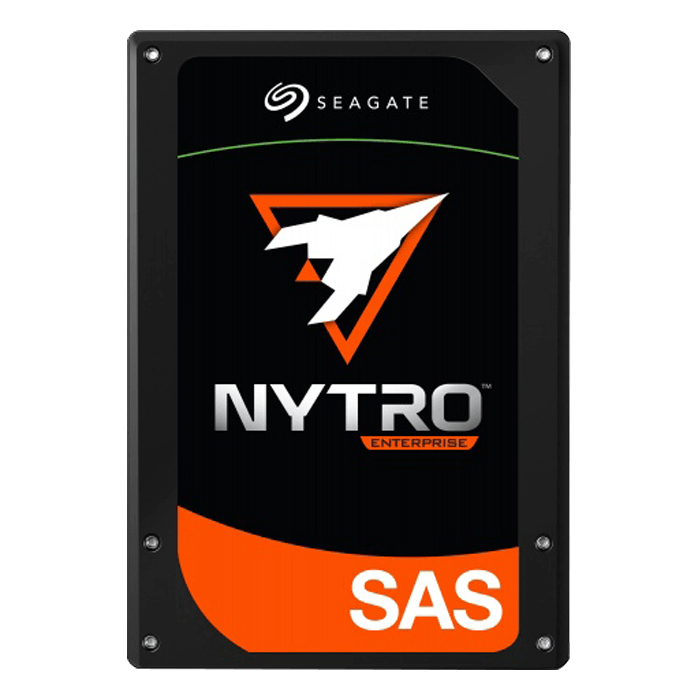

7.68TB Nytro 2332 15mm, 810 / 650 MB/s, 3D eTLC NAND, SAS 12Gb/s, SED, 2.5" SSD
Quantity:
- SKU: 13832525
- Manufacturer: SEAGATE
- MPN: XS7680SE70134
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$2,166.00
| Specifications | Nytro 2332—Scaled Endurance |
| Capacity | 7.68TB |
| Seagate Secure™ SED Model | XS7680SE70134 |
| Features | |
| Interface (Single Port) | 12Gb/s SAS |
| NAND Flash Type | 3D eTLC |
| Form Factor | 2.5 in × 15mm |
| Performance at Max Power Limit | |
| Sequential Read (MB/s) Sustained, 128KB2,3 | 810 |
| Sequential Write (MB/s) Sustained, 128KB2,3 | 650 |
| Random Read (IOPS) Sustained, 4KB2,3 | 175,000 |
| Random Write (IOPS) Sustained, 4KB2,3 | 45,000 |
| Random 30% Write (IOPS) Sustained, 4KB2,3 | 115,000 |
| Endurance/Reliability | |
| Lifetime Endurance (Drive Writes per Day) | 1 |
| Total Bytes Written (TB) | 14,000 |
| Nonrecoverable Read Errors per Bits Read | 1 per 10E17 |
| Annualized Failure Rate (AFR) | 0.35% |
| Limited Warranty (years) | 5 |
| Power Management | |
| +5/+12V Max Start Current (A) | 0.80/0.21 |
| Average Idle Power (W) | 4.6 |
| Physical | |
| Height (mm/in, max)4 | 0.591in/15.00mm |
| Width (mm/in, max)4 | 2.760in/70.10mm |
| Depth (mm/in, max)4 | 3.955in/100.45mm |
| Weight (g/lb) | 0.364lb/165g |
| Carton Unit Quantity | 10 |
| Cartons per Pallet/Cartons per Layer | 90/9 |
