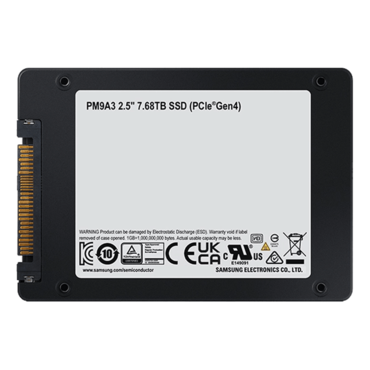

7.68TB PM9A3 7mm, 6700 / 4000 MB/s, V-NAND 3-bit MLC, PCIe NVMe 4.0 x4, TCG Opal SSC, U.2 2.5" SSD
Quantity:
- SKU: 15024630
- Manufacturer: SAMSUNG
- MPN: MZ-QL27T600
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$1,170.07
7.68TB PM9A3 7mm, 6700 / 4000 MB/s, V-NAND 3-bit MLC, PCIe NVMe 4.0 x4, TCG Opal SSC, U.2 2.5" SSD
7.68TB SEA Branded Division Enterprise SSD PM9A3 2.5 U.2 NVMe PCIe Gen4
7.68TB SEA Branded Division Enterprise SSD PM9A3 2.5 U.2 NVMe PCIe Gen4
| Type | |
| Interface | PCIe 4.0 x4 NVMe 1.4 |
| Series | PM9A3 |
| Application | |
| Data Center | Yes |
| Storage | |
| Capacity | 7.68TB |
| Key Features | |
| Sequential Read Speed | Up to 6,700 MB/s |
| Sequential Write Speed | Up to 4,000 MB/s |
| Random Read Speed | Up to 1,100,000 IOPS |
| Random Write Speed | Up to 200,000 IOPS |
| Controller | Samsung Elpis Controller |
| NAND Flash | Samsung V-NAND TLC |
| Cache Memory | Samsung Low Power SDRAM |
| Trim Support | Yes |
| AES Encryption | AES 256-bit Encryption |
| Security | TCG/Opal (Class 0) |
| S.M.A.R.T. Support | Yes |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm |
| WWN Support | NGUID Supported |
| General | |
| Power Consumption (W) |
Active (Read/Write): 11.0 W / 13.5 W Idle: Max. 3.5 W |
| Voltage | 12.0V ± 10% Allowable voltage |
| Reliability (MTBF) | 2.0 Million Hours Reliability (MTBF) |
| Environmental Specs | |
| Operating Temperature | 0 - 70 °C Operating Temperature |
| Shock | 1,500 G & 0.5 ms (Half sine) |
| Form Factor | |
| Product | U.2 2.5-inch 7mmT |
| Dimensions (W x H x D) | |
| Product | 100 X 69.85 X 6.8 (mm) |
| Weight | |
| Product | Max 90.0 g |
| Software | |
| Management SW | Samsung SSD DC Tool kit |
| Warranty | |
| Product | 5 Year Limited Warranty or 14,016 TBW Limited Warranty |
