700 GD, 80 PLUS Gold 700W, No Modular, ATX Power Supply
Quantity:
- SKU: 12968054
- Manufacturer: EVGA
- MPN: 100-GD-0700-V1
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$89.94

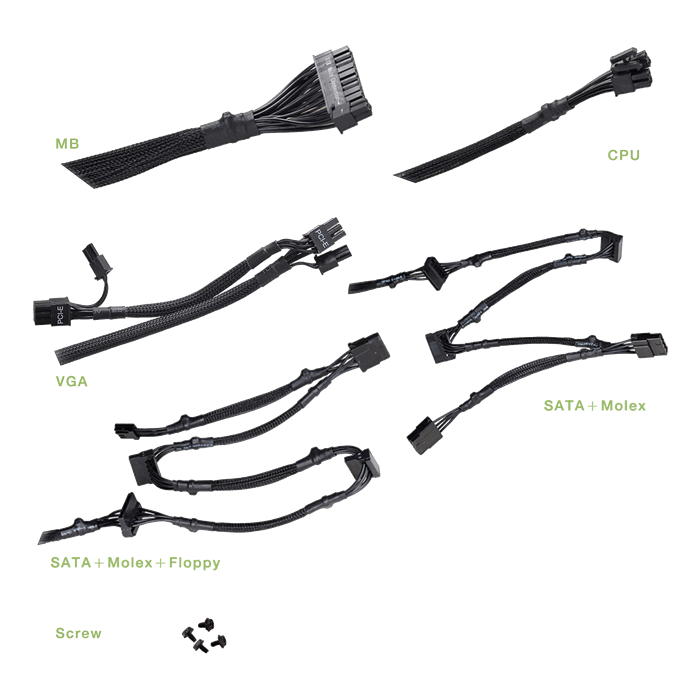

CABLE LENGTH
| ATX Cable | 1x 600mm |
| EPS Cable | 1x 600mm |
| PCIe Cable | 2x 550mm, 700mm |
| SATA / Four-Pin Peripheral Cable | 1x 450mm(s), 600mm(s), 750mm(s), 900mm(m), 1050mm(m) |
| AC Power | 1x 1500mm (m) |
| Modular Cable Type | No |
CONNECTOR QUANTITY
| 24 Pin ATX | 1x |
| EPS (CPU) | 1x8pin(4+4) |
| PCIe | 4x8pin(6+2) |
| SATA | 6x |
| Four-Pin Peripheral | 3x |
| Floppy | 1x |

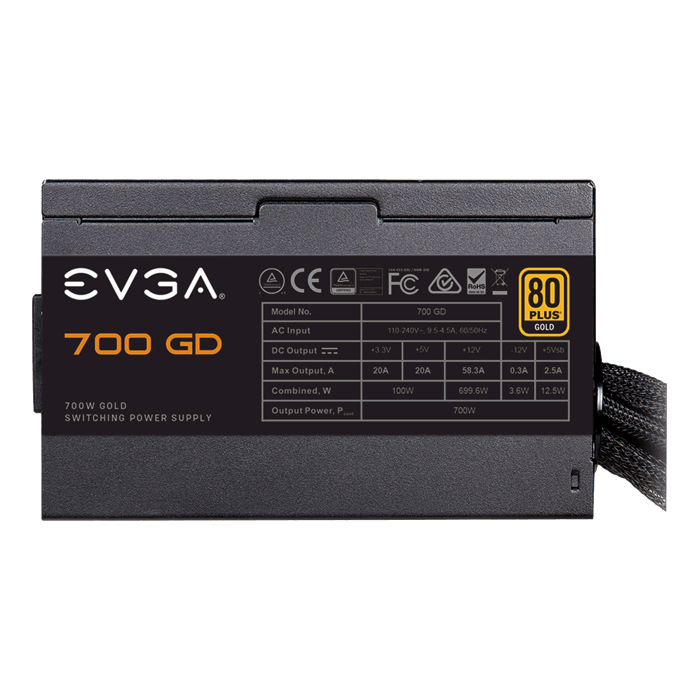

POWER SPECS

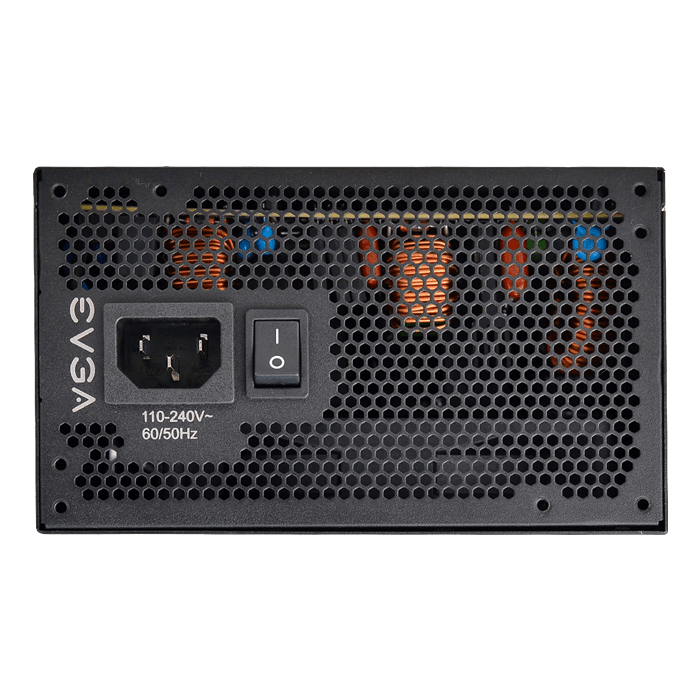

| AC Input | 110-240 VAC, 9.5-4.5A, 60/50 Hz | ||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V |
| Max Output | 20A | 20A | 58.3A | 2.5A | 0.3A |
| 699.6W | |||||
| 100W | 699.6W | 12.5W | 3.6W | ||
| Total | 700W | ||||
ADDITIONAL DETAILS
| Operating Temperature | 0° to 40° C |
| Japanese Capacitors | Main |
| ECO Mode | No |
| MTBF | 100,000 Hours |
| Net Weight | 4 lbs |
| Size | 86mm (H) x 150mm (W) x 140mm (L) |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement |
| Fan Size / Bearing | 120mm Sleeve Bearing |
