850G FTW, 80 PLUS Gold 850W, ECO Mode, Fully Modular, ATX Power Supply
Quantity:
- SKU: 16630554
- Manufacturer: EVGA
- MPN: 535-5G-0850-K1
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$152.93

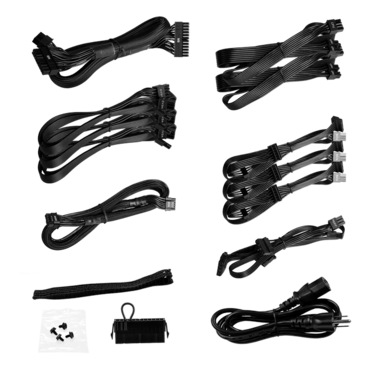

| CABLE LENGTH | |
| ATX Cable | 1x 600mm |
| EPS Cable | 2x 700mm |
| PCIe Cable | 2x 700mm, 1x 700mm, 850mm |
| SATA Cable | 3x 550mm, 670mm, 790mm |
| Four-Pin Peripheral Cable | 1x 450mm, 570mm, 690mm, 810mm |
| AC Power | 1x 1500mm |
| Modular Cable Type | Full |
| ADDITIONAL DETAILS | |
| Operating Temperature | 0 to 50° C |
| Japanese Capacitors | 100% |
| ECO Mode | Yes |
| MTBF | 100,000 Hours |
| Net Weight | 7.50 lbs |
| Size | 86mm (H) x 150mm (W) x 150mm (L) |
| Approvals |
TUV, CB, CE, FCC, RCM, cTUVus, BSMI, WEEE, RoHS Compliance with ErP Lot 3 2014 Requirement |
| Fan Size / Bearing | 135mm Fluid Dynamic Bearing |
| CONNECTOR QUANTITY | |
| 24 Pin ATX | 1x 24pin |
| EPS (CPU) | 2x 8pin (4+4) |
| PCIe | 4x 8pin (6+2) |
| SATA | 9x |
| Four-Pin Peripheral | 4x |

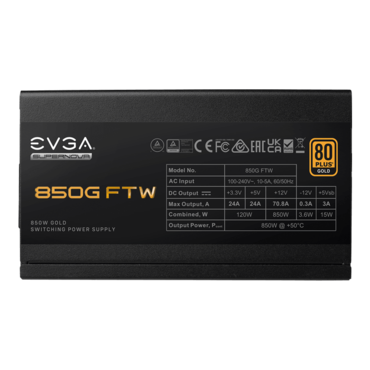

| POWER SPECS | ||||||||||
| AC Input | 100-240V~, 10-5A, 60/50Hz | |||||||||
| Rail | +3.3V | +5V | +12V | +5Vsb | -12V | |||||
| Max Output | 24A | 24A | 70.8A | 3A | 0.3A | |||||
| 120W | 850W | 15W | 3.6W | |||||||
| Total | 850W | |||||||||
