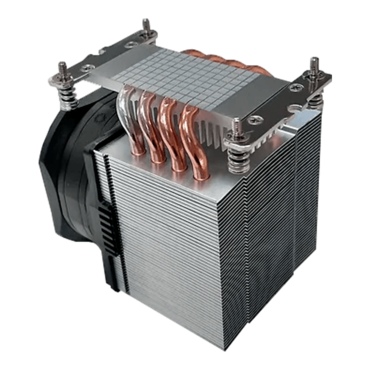

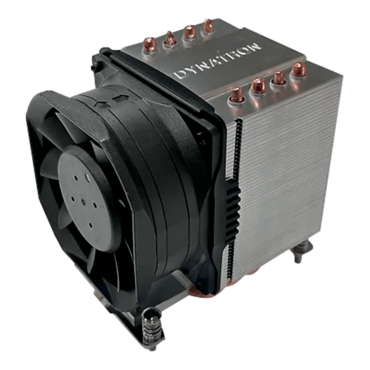

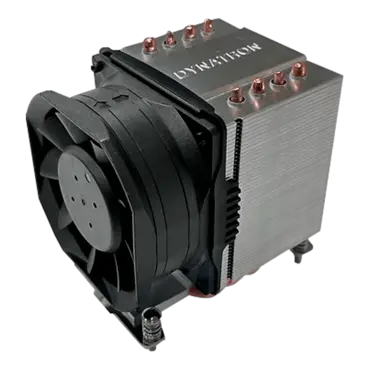

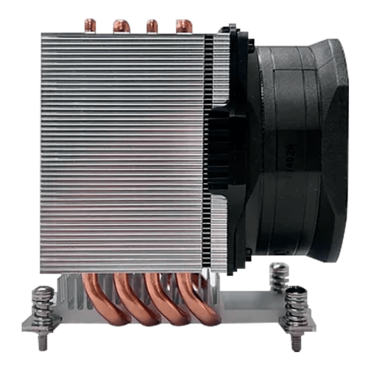

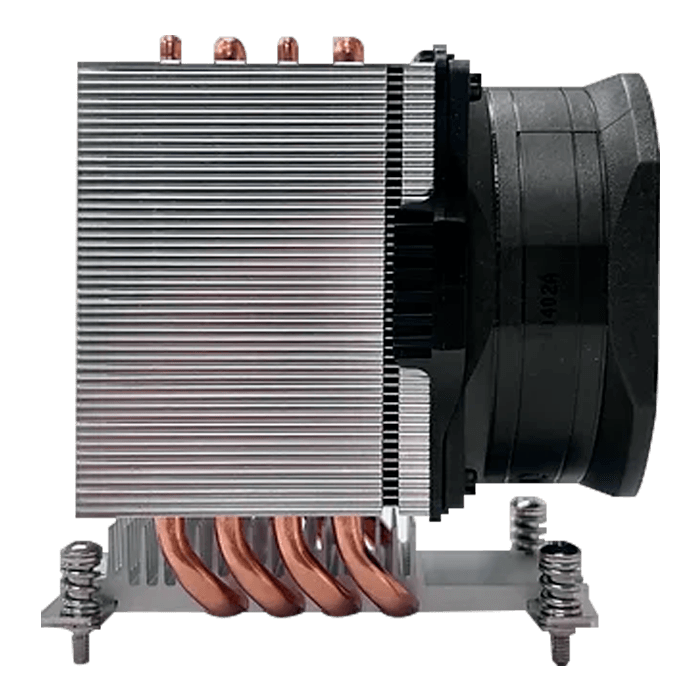

A56, 110mm Height, 170W TDP, Copper/Aluminum CPU Cooler
The Dynatron A56 CPU cooler is designed for A56 ( A19 with DF128038BX-PWMG)
The Dynatron A56 CPU cooler is designed for A56 ( A19 with DF128038BX-PWMG)
CPU Support | AMD® Ryzen Processor |
CPU Socket | AM4/AM5 |
Screw Type | #6-32 |
Installation Torque | 6-10 in-lb |
Solution | 3U Server and up |
Dimensions | 107.5 x 78 x 110mm |
Weight | 600g |
Material | Aluminum Stacked Fin with Heat Pipes directly contact CPU |
Fan Dimension | 80 x 80 x 38 mm |
Speed |
At Duty Cycle 0~20%: 2400 ± 10% RPM At Duty Cycle 50%: 4800 ± 10% RPM At Duty Cycle 100%: 8000 RPM Min |
Bearing | Double Ball |
Rated Voltage | 12V |
Power |
At Duty Cycle 0~20%: 1.2 W At Duty Cycle 50%: 5.52 W At Duty Cycle 100%: 24.72 W |
Air Flow |
At Duty Cycle 0~20%: 35.52 CFM At Duty Cycle 50%: 67.24 CFM At Duty Cycle 100%: 115.61 CFM |
Noise Level |
At Duty Cycle 0~20%: 25.63 dBA At Duty Cycle 50%: 47.85 dBA At Duty Cycle 100%: 64.40 dBA |
Life – Continuous operating under normal temperature (40 °C or 104 °F) | 70,000 Hours |
