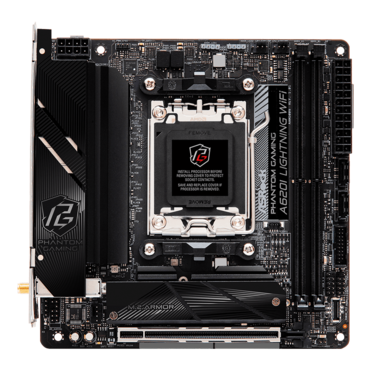

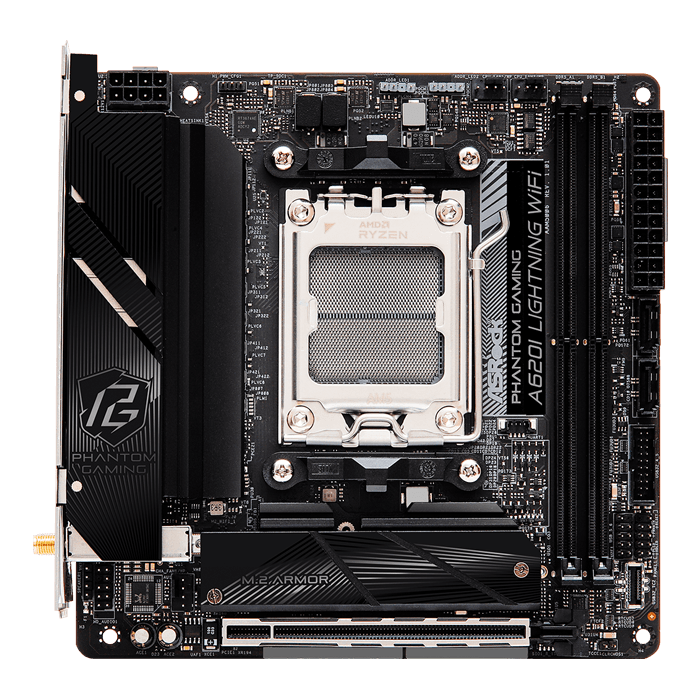

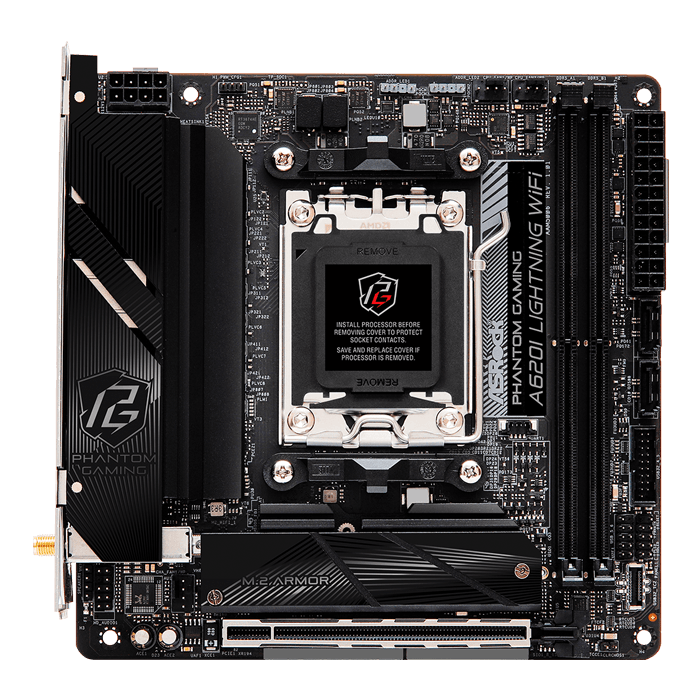

A620I Lightning WiFi, AMD A620 Chipset, AM5, Mini-ITX Motherboard
Quantity:
- SKU: 17019301
- Manufacturer: ASROCK
- MPN: A620I LIGHTNING WIFI
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$152.93
- Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors
- 8+2+1 Power Phase, Dr.MOS
- Supports DDR5 7200+ (OC)
- 1 PCIe 4.0 x16
- Graphics Output Options: HDMI
- Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
- 2 SATA3, 1 Hyper M.2 (PCIe Gen4x4), 1 Ultra M.2 (PCIe Gen3 x4)
-
1 USB 3.2 Gen2 Type-C (Rear),
2 USB 3.2 Gen2 Type-A (Rear),
1 USB 3.2 Gen1 Type-C (Front),
3 USB 3.2 Gen1 Type-A (1 Rear, 2 Front),
4 USB 2.0 (2 Rear, 2 Front) - Phantom Gaming 2.5G LAN
- 802.11ax WiFi 6E + Bluetooth
- Supports ASRock Auto Driver Installer, BIOS Flashback
| Unique Feature |
Superb Productivity Dual Channel DDR5 Rock-Solid Durability 8+2+1 Power Phase, 60A Dr.MOS with Enlarged Heatsink Armor Pre-Installed I/O Shield Flexible Integrated I/O Shield Ultrafast Gaming 2.5G LAN, 802.11ax Wi-Fi 6E Module ASRock Lightning Gaming Ports EZ Update BIOS Flashback Button ASRock Auto Driver Installer |
| CPU | Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors* |
| Chipset | AMD A620 |
| Memory |
Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)* Max. capacity of system memory: 96GB Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules *Please refer to Memory Support List for more information.
|
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics |
Integrated AMD RDNA™ graphics (Actual support may vary by CPU) 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio |
7.1 CH HD Audio (Realtek ALC897 Audio Codec) Nahimic Audio |
| LAN |
2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG Supports Phantom Gaming LAN Software Smart Auto Adjust Bandwidth Control Visual User Friendly UI Visual Network Usage Statistics Optimized Default Setting for Game, Browser, and Streaming Modes User Customized Priority Control |
| Wireless LAN |
802.11ax Wi-Fi 6E Module Supports IEEE 802.11a/b/g/n/ac/ax Supports Dual-Band 2x2 with extended 6GHz band* support 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology Supports Bluetooth 5.2 + High speed class II Supports MU-MIMO
* Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported
countries) through Windows® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality. |
| Slots |
CPU: 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode* Chipset: 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module* 15μ Gold Contact in VGA PCIe Slot (PCIE1) * Supports NVMe SSD as boot disks
|
| Storage |
CPU: 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen3x4 (32 Gb/s) mode* 2 x SATA3 6.0 Gb/s Connectors * Supports NVMe SSD as boot disks
|
| RAID |
Supports RAID 0 and RAID 1 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* * Requires additional M.2 NVMe expansion cards to support RAID 10
|
| USB |
1 x USB 3.2 Gen2 Type-C (Rear) 2 x USB 3.2 Gen2 Type-A (Rear) 1 x USB 3.2 Gen1 Type-A (Rear) 1 x USB 3.2 Gen1 Type-C (Front) 2 x USB 3.2 Gen1 Type-A (Front) 4 x USB 2.0 (2 Rear, 2 Front) * All USB ports support ESD Protection
|
| Connector |
2 x Addressable LED Headers* 2 x CPU/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)** 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)*** 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) 1 x Front Panel Audio Connector 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) 1 x Front Panel Type C USB 3.2 Gen1 Header
*Support in total up to 5V/3A, 15W LED Strip
** CPU_FAN1/WP and CPU_FAN2/WP support the fan power up to 2A (24W). *** CHA_FAN1/WP supports the fan power up to 2A (24W). CPU_FAN1/WP, CPU_FAN2/WP and CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |

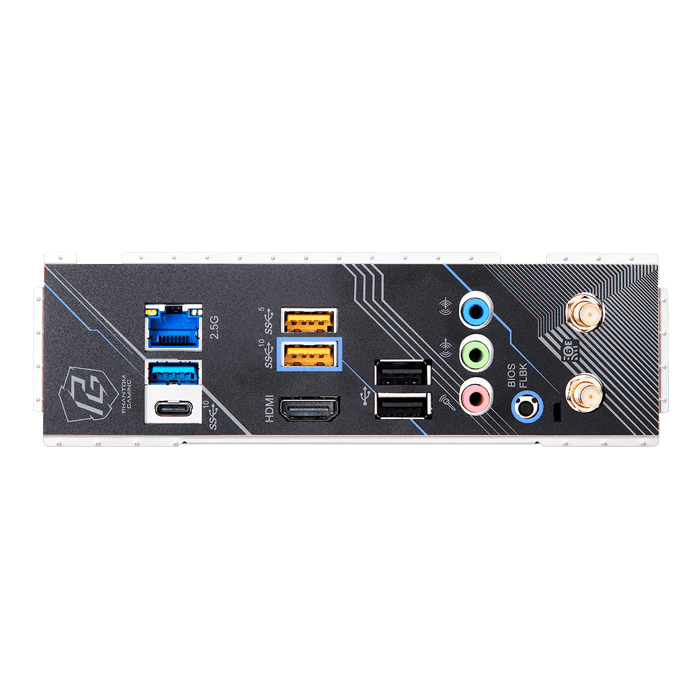

| Rear Panel I/O |
2 x Antenna Ports 1 x HDMI Port 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)* 1 x USB 3.2 Gen1 Type-A Port* 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 2 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks: Line in / Front Speaker / Microphone * USB32_23 are Lightning Gaming Ports.
|
| Software and UEFI |
Software ASRock Motherboard Utility (Phantom Gaming Tuning) ASRock Phantom Gaming LAN Software ASRock Polychrome SYNC* UEFI ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop.
|
| Accessories |
1 x User Manual 2 x SATA Data Cables 2 x ASRock WiFi 2.4/5/6 GHz Antennas 1 x Screw for M.2 Socket |
| Form Factor |
Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm 8 Layer PCB |
| OS | Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications |
FCC, CE ErP/EuP ready (ErP/EuP ready power supply is required) |
