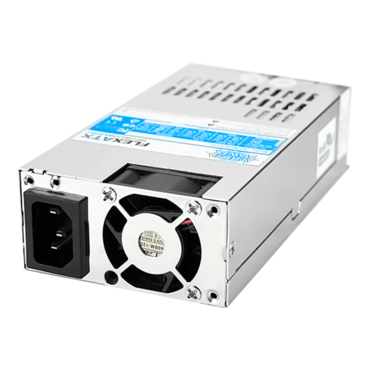

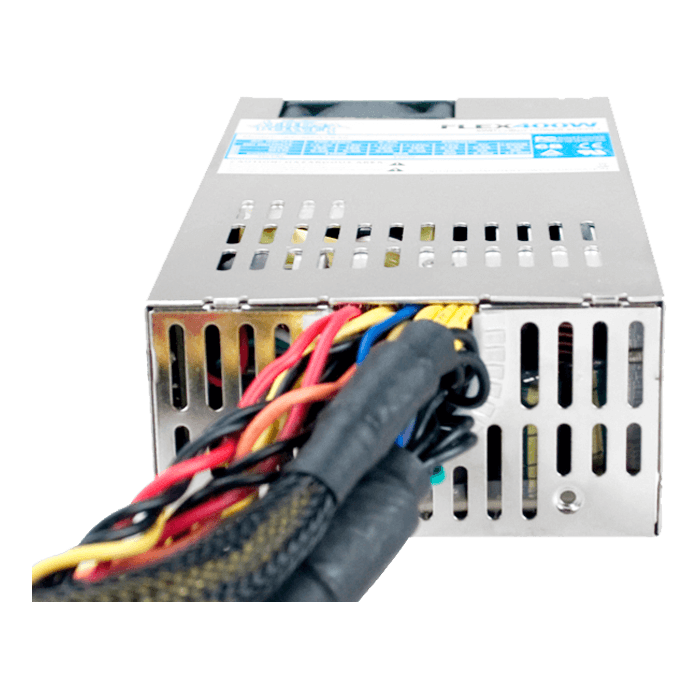

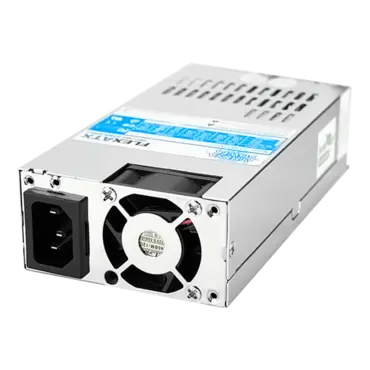

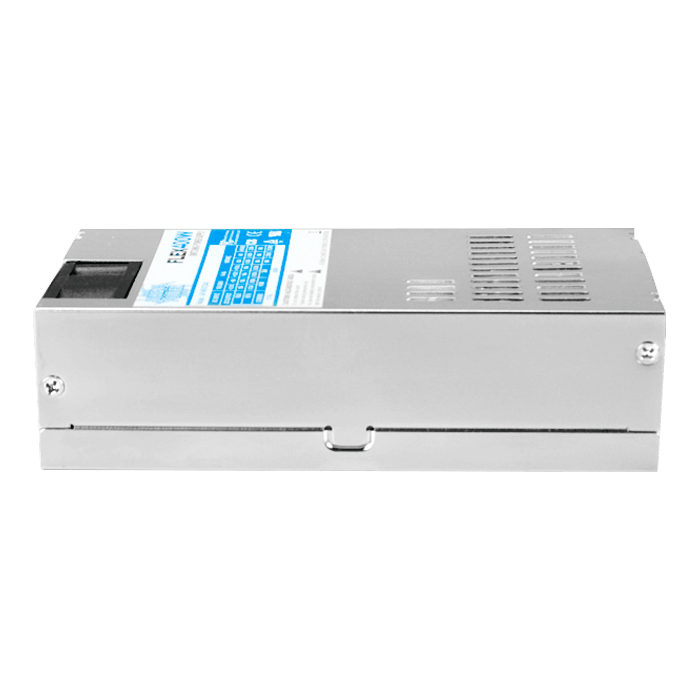

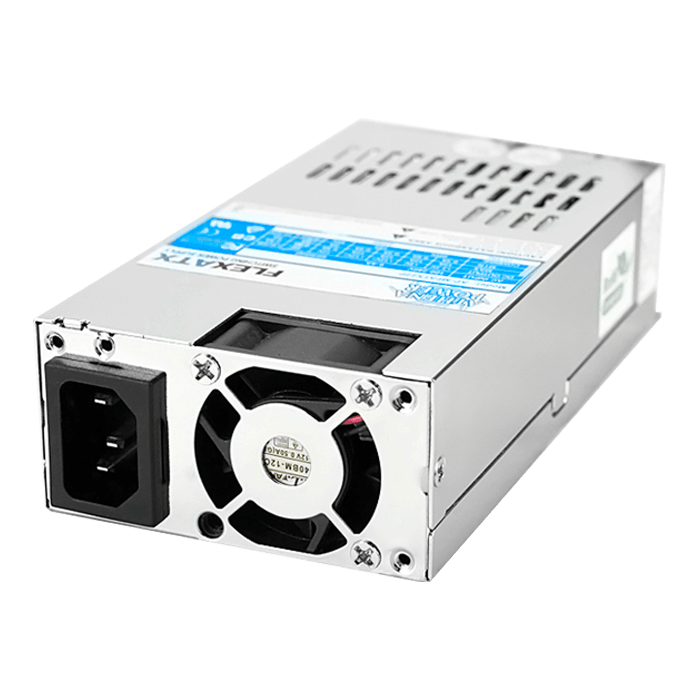

AP-MFATX40P8, 80 PLUS Bronze 400W, Single, FlexATX Power Supply

Quantity:
  • SKU: 17609034
  • Manufacturer: ATHENA POWER
  • MPN: AP-MFATX40P8
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$90.73
Quantity:
Model AP-MFATX40P8
Product Category Flex ATX
Product Sub Category FLEX ATX
Output Power 400 Watts
Input Votage 88 ~ 264 Volts AC
Frequency 47/63 Hz
MTBF 100,000 Hours on Maximum Load at +25°C
Output
Voltage +5V +3.3V +12V1 +12V2 -12V +5V-SB
Current 15A 15A 16A 16A 0.5A 2.5A
Connectors
ATX Connector 24(20+4) pin x 1
EPS-12V 8 pin x 1
P4-12V (4+4) pin x 1
PCIE 6+2 pin x 2
SATA 15 pin x 3
Molex 4 pin x 2
Floppy 4 pin x 1
Dimension (L x W x H) 150 x 81.5 x 40.5 mm / 6 x 3.2 x 1.59 in
Weight 2.00lb
Warranty 3 Year Manufacture Limited Warranty
