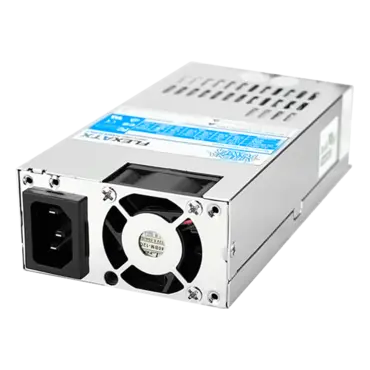

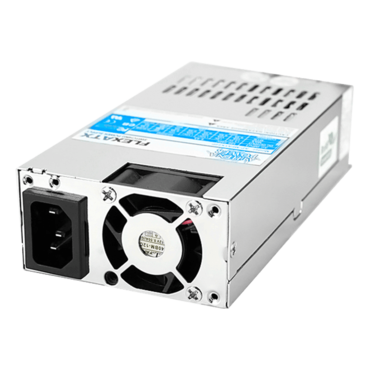

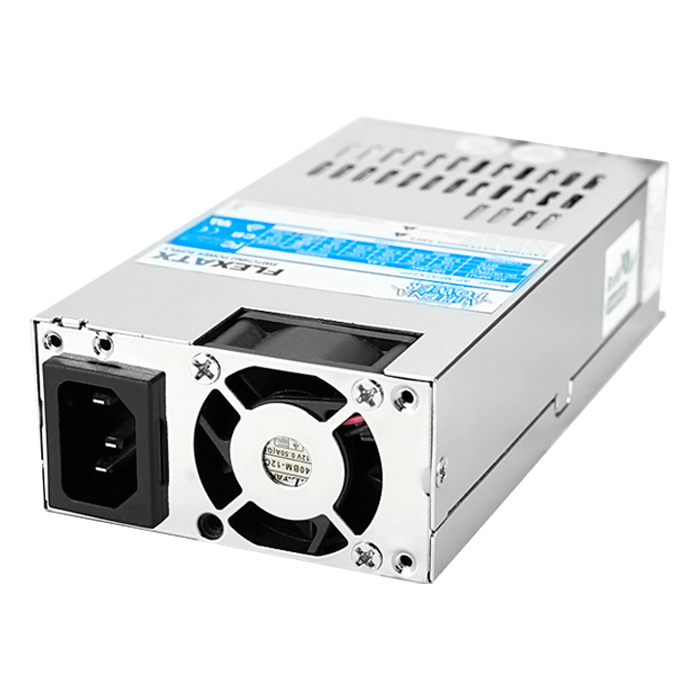

AP-MFATX50P8, 80 PLUS Silver 500W, Single, FlexATX, Power Supply
AP-MFATX50P8 is designed for SFF systems, such as a mini-ITX, 1U IPC server or high performance system. The AP-MFATX50P8 is an UL and TUV certified IPC grade server power supply unit. It also features Active PFC (Power Factor Correction) with Full Range AC Input. These features make AP-MFATX50P8 being a high efficiency (80PLUS Silver) and reliability FlexATX power supply unit.
AP-MFATX50P8 is designed for SFF systems, such as a mini-ITX, 1U IPC server or high performance system. The AP-MFATX50P8 is an UL and TUV certified IPC grade server power supply unit. It also features Active PFC (Power Factor Correction) with Full Range AC Input. These features make AP-MFATX50P8 being a high efficiency (80PLUS Silver) and reliability FlexATX power supply unit.
Model | AP-MFATX50P8 | ||||||||||||||||
Product Category | Flex ATX | ||||||||||||||||
Product Sub Category | FLEX ATX | ||||||||||||||||
Output Power | 500 Watts | ||||||||||||||||
Input Votage | 88 ~ 264 Volts AC | ||||||||||||||||
Frequency | 60/50 Hz | ||||||||||||||||
Temperature Range | Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C | ||||||||||||||||
MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||||||
Rise time | Less tdan 20 ms | ||||||||||||||||
Hold-up Time | 17 ms Minimum at Nominal Input Voltage | ||||||||||||||||
Output |
|
||||||||||||||||
Connectors |
ATX Connector 24(20+4) Pin x 1
EPS-12V 8 Pin x 1
P4-12V 4 pin x 1
PCI-E (6+2) pin x 2
SATA 15 pin x 3
Molex 4 pin x 2
Floppy 4 pin x 1
|
||||||||||||||||
Dimension | (L x W x H) 150 x 81.5 x 40.5 mm / 6 x 3.2 x 1.59 in | ||||||||||||||||
Weight | 3.50lb | ||||||||||||||||
Warranty | 3 Year Manufacture Limited Warranty |
