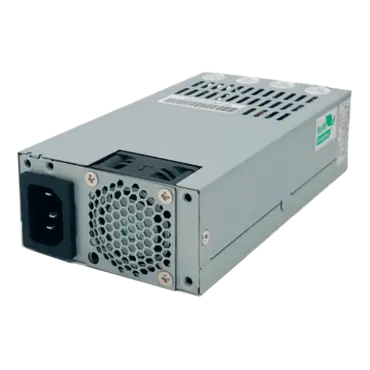

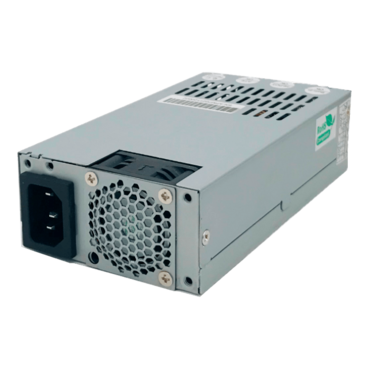

AP-MFATX70P868, 700W, Single, FlexATX Power Supply

Quantity:
  • SKU: 17610482
  • Manufacturer: ATHENA POWER
  • MPN: AP-MFATX70P868
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$190.93
Quantity:
Model AP-MFATX70P868
Product Category Flex ATX
Product Sub Category Flex ATX 62368
Output Power 700 Watts
Input Votage 90 ~ 264 Volts AC
Frequency 47 ~ 63 Hz
Temperature Range Operating: 0°C ~ +55°C on Full Load; Storage & Shipping: -40°C ~ +70°C
MTBF 250,000 Hours on Maximum Load at +25°C
Rise time Less tdan 70 ms
Hold-up Time 11 ms Minimum at Nominal Input Voltage
Output
Voltage +3.3V +5V +12V1/V2 -12V -5V +5Vsb
Current 18A 20A 28/28A 0.5A 0.3A 2.5A
Connectors
ATX Connector 24(20+4) Pin x 1
EPS-12V 8 Pin x 1, 8(4+4) Pin x 1
PCIE 6+2 Pin x 2
SATA 15 Pin x 3
Molex 4 Pin x 2 + Floppy 4 Pin x 1
Dimension (L x W x H) 150 x 81.5 x 40.5 mm / 6 x 3.2 x 1.59 in
Weight 3.75lb
Warranty 3 Year Manufacture Limited Warranty
