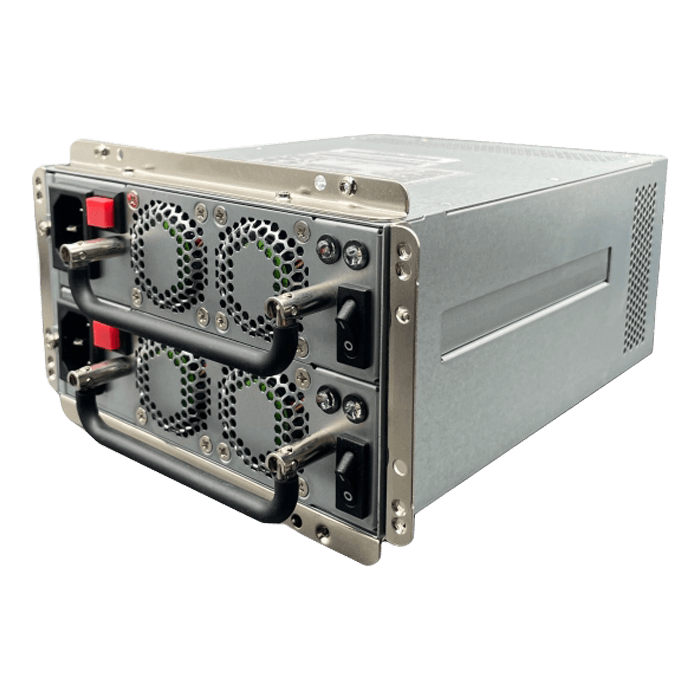

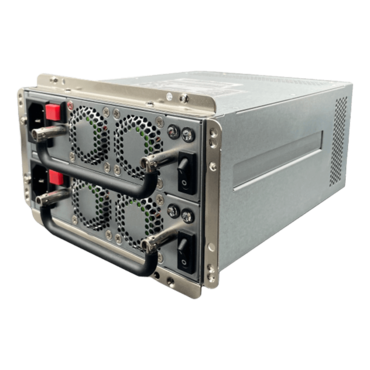

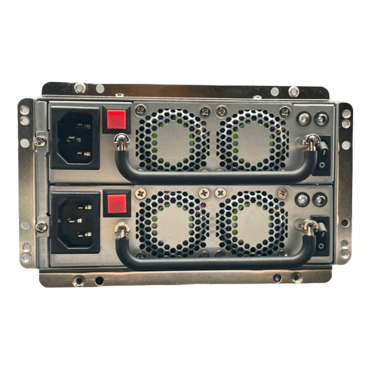

AP-RRP4ATX5062, 80 PLUS Bronze 500W, Redundant, 2U Power Supply
Quantity:
- SKU: 17611297
- Manufacturer: ATHENA POWER
- MPN: AP-RRP4ATX5062
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$439.53
| Model | AP-RRP4ATX5062 | ||||||||||||||
| Product Category | Redundant | ||||||||||||||
| Product Sub Category | Mini Redundant 62368 | ||||||||||||||
| Output Power | 500 Watts | ||||||||||||||
| Input Votage | 90 ~ 264 Volts AC | ||||||||||||||
| Frequency | 47 ~ 63 Hz | ||||||||||||||
| Temperature Range | Operating: 0°C ~ +50°C on Full Load; Storage & Shipping: -20°C ~ +80°C | ||||||||||||||
| MTBF | 100,000 Hours on Maximum Load at +25°C | ||||||||||||||
| Rise time | Less tdan 70 ms | ||||||||||||||
| Hold-up Time | 16 ms Minimum at Nominal Input Voltage | ||||||||||||||
| Output |
|
||||||||||||||
| +3.3V and +5V combined 130W Max. | |||||||||||||||
| Connectors |
ATX 24 (20+4) Pin x 1
P4-12V 4 Pin x 1
EPS-12V 8 Pin x 2
PCIE 6+2 Pin x 2
SATA 15 Pin x 6
Molex 4 Pin x 3
|
||||||||||||||
| Dimension | (L x W x H) 190 x 150 x 84 mm / 5.9" x 7.5" x 3.3" | ||||||||||||||
| Weight | 7.00lb | ||||||||||||||
| Warranty | 3 Year Manufacture Limited Warranty |
