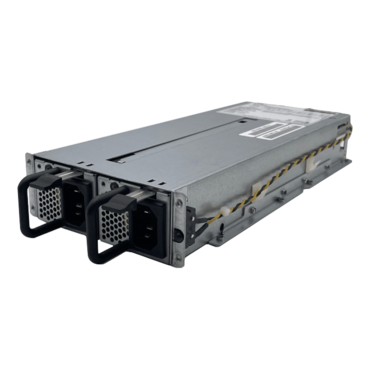

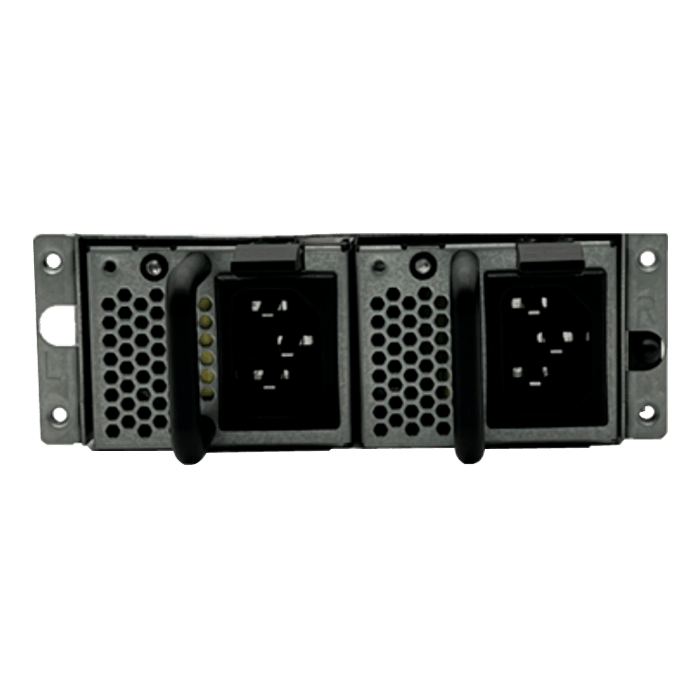

AP-RRU1ATX308S62, 80 PLUS Standard 300W, Redundant, 1U Power Supply

Quantity:
  • SKU: 17611303
  • Manufacturer: ATHENA POWER
  • MPN: AP-RRU1ATX308S62
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$463.45
Quantity:
Model AP-RRU1ATX308S62
Product Category Redundant
Product Sub Category 1U Micro Redundant 62368
Output Power 300 Watts
Input Votage 115/230 Volts AC
Frequency 47 ~ 63 Hz
Temperature Range Operating: -5°C ~ +50°C on Full Load; Storage & Shipping: -40°C ~ +85°C
MTBF 200,000 Hours on Maximum Load at +25°C
Rise time Less tdan 70 ms
Hold-up Time 16 ms Minimum at Nominal Input Voltage
Output
Voltage +3.3V +5V +12V1 -12V2 +5Vsb +12V
Current Max. 20.0A 20.0A 14.0A 14.0A 2.0A 0.5A


+3.3V and +5V combined 103W Max

Connectors
1 x ATX 24(20+4) Pin
1 x EPS-12V 8 Pin
2 x PCIE 6+2 Pin
2 x SATA 15 Pin
2 x Molex 4 Pin
Dimension (L x W x H) 260.5 x 106 x 41.5 mm/ 10.2 x 4.2 x 1.6 in
Weight 5.00lb
Warranty 3 Year Manufacture Limited Warranty
