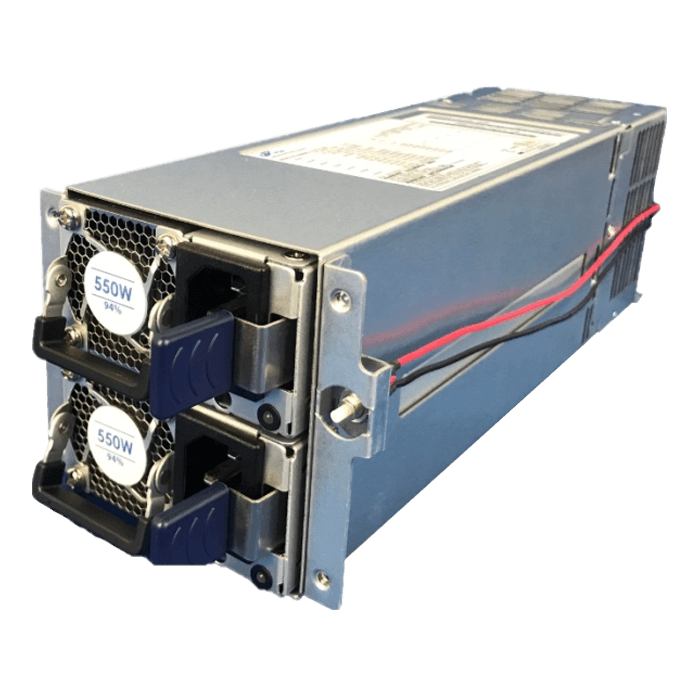

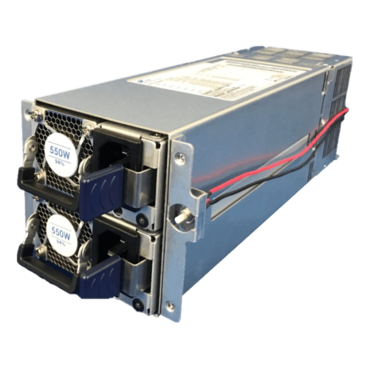

AP-RRU2M5562, 80 PLUS Platinum 550W, Redundant, 2U Power Supply

Quantity:
  • SKU: 17610374
  • Manufacturer: ATHENA POWER
  • MPN: AP-RRU2M5562
  • Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$617.54
Quantity:
Model AP-RRU2M5562
Product Category Redundant
Product Sub Category 2U Mini Redundant 62368
Output Power 550 Watts
Input Votage 90 ~ 264 Volts AC
Frequency 47/63 Hz
Temperature Range Operating: 0°C ~ +55°C on Full Load; Storage & Shipping: -40°C ~ +70°C
MTBF 250,000 Hours on Maximum Load at +25°C
Rise time Less tdan 70 ms
Hold-up Time 11 ms Minimum at Nominal Input Voltage
Output
Voltage +3.3V +5V +12V -12V +5Vsb
Current 12A 24A 45.8A 0.3A 5A
Connectors
ATX Connector 24(20+4) pin
EPS 12V 8 Pin x 2
PCIE 6+2 Pin x 4
SATA 15 Pin x 6
Floppy 4 Pin x 2
Dimension (L x W x H) 264 x 76 x 83.8 mm/ 10.4 x 3 x 3.3 in
Weight 10.00lb
Warranty 3 Year Manufacture Limited Warranty
