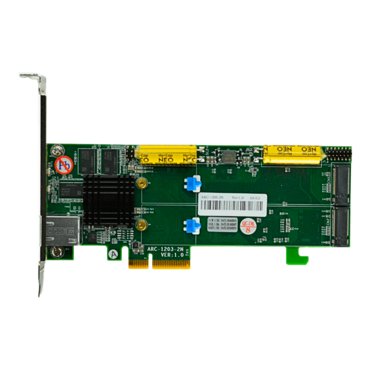

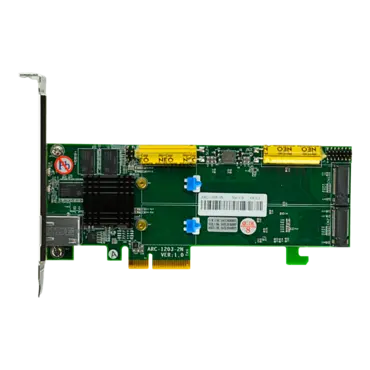

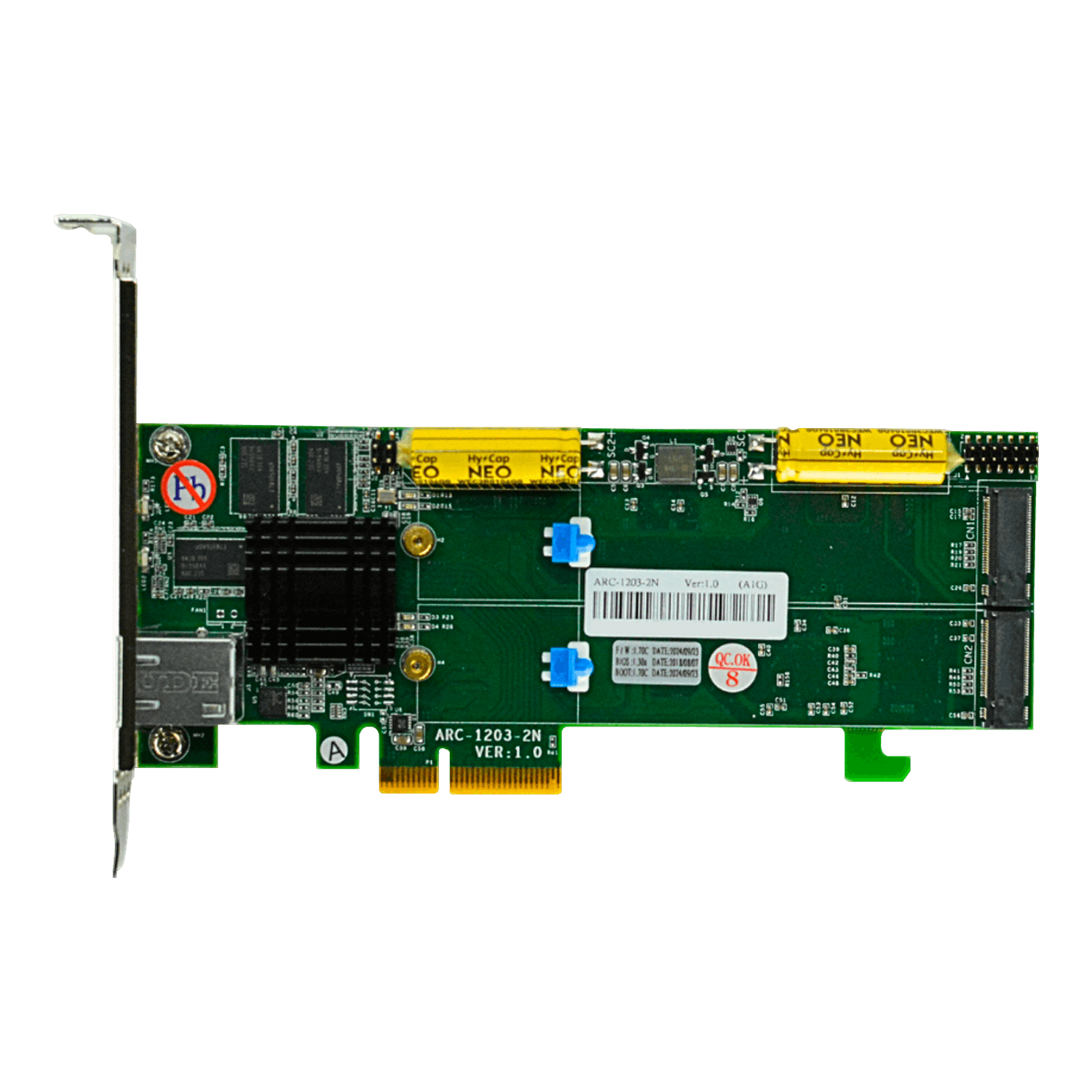

ARC-1203-2N, M.2 NVMe, 2-Port, PCIe 2.0 x1, Controller with 512MB Cache
Quantity:
- SKU: 18534308
- Manufacturer: ARECA
- MPN: ARC-1203-2N
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$319.00
- Supports RAID 0, RAID 1, and JBOD configurations for flexible storage management
- 2 SATA ports for connecting drives, providing up to 6Gb/s data transfer speeds
- PCIe 2.0 x1 interface for fast and efficient performance
- Dedicated RAID processor offloads RAID management from the CPU for optimized system performance
- Ideal for RAID 1 boot drives, ensuring data redundancy and minimal downtime
- Low-profile design perfect for compact systems and small servers
- Simple management software for monitoring drive health and RAID status
- Cost-effective solution for small businesses, home labs, and system builders looking for reliable storage protection.
| ARC-1203-2N M.2 Cached RAID Adapter | |
| RAID-on-Chip Controller | ARM_based storage I/O processor@ 1.066 GHz |
| Cache Memory | 512 MB on-board DDR3-1066 SDRAM with ECC protection |
| Host Bus Interface | 4-Lane PCI Express® 2.0 |
| Drive Connectors | 2 x M.2 Connectors |
| Drive Interface | Gen 2.0 X1 PCIe (NVMe) |
| Physical Dimensions | Low Profile: 168(L) x 64.4(H) mm |
| Power Dissipation | Typical: 8W |
| Operating Temperature | 0°C to 60°C with 200 LFM airflow |
| Operating Humidity | 10% to 85%, non-condensing |
| On-board Supercapacitor | Yes |
| RAID Features |
* RAID level 0, 1 and Single Disk(Single/Dual) * Multiple RAID selection * Configurable stripe size up to 1MB * Array roaming * RAID level/stripe size migration * Capacity expansion and RAID level migration simultaneously * SED (self-encrypting drives) function support * On-board supercapacitor for Non-PLP NVMe drive and LED indicator ready * Support NTP protocol synchronize RAID controller clock over the on board Ethernet port |
