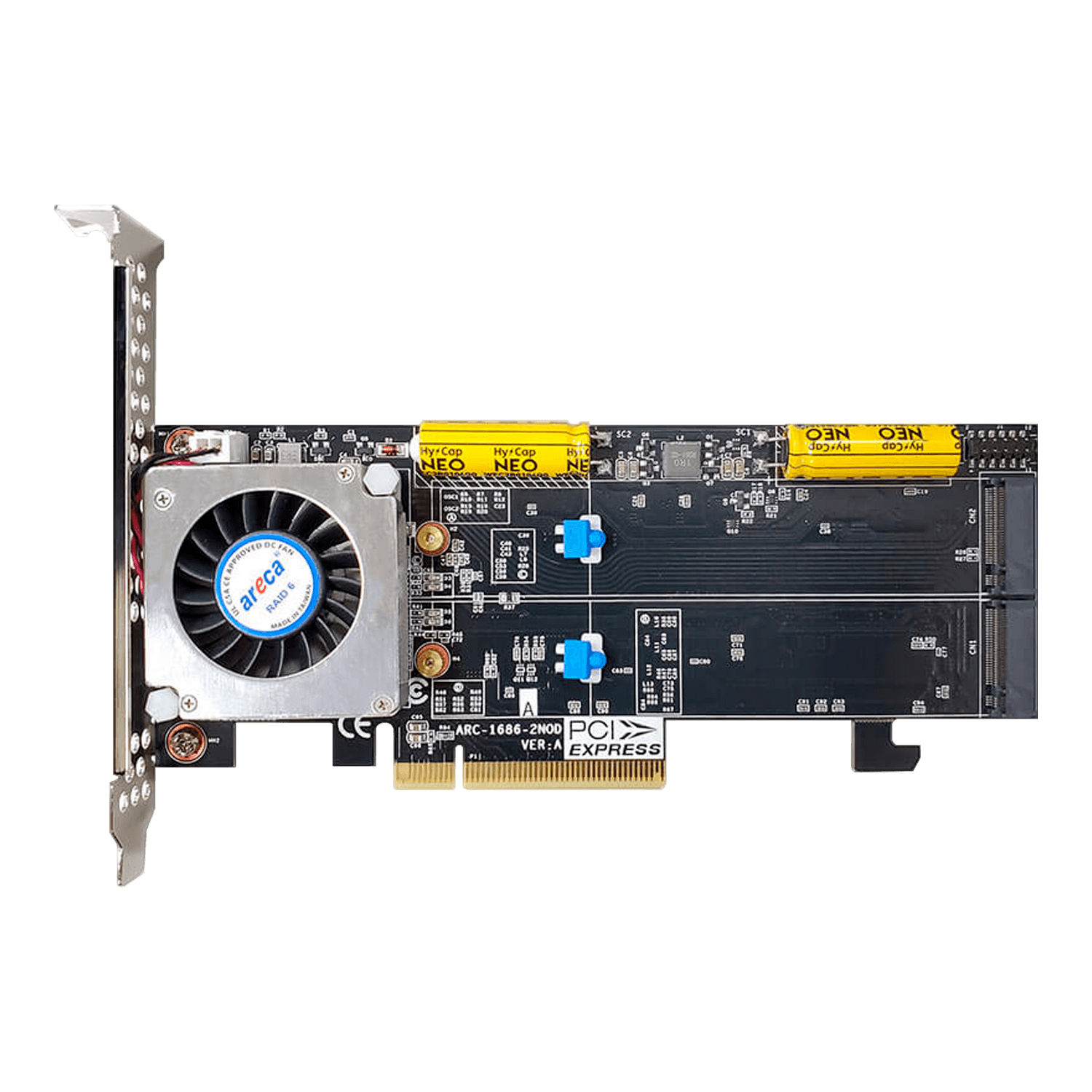

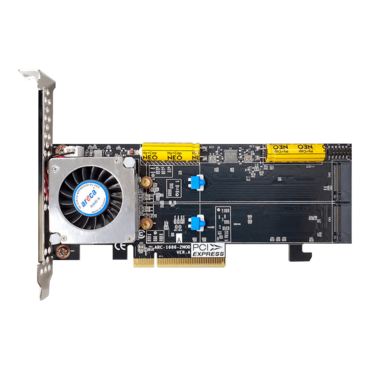

ARC-1686-2NOD, M.2 NVMe, 2-Port, PCIe 4.0 x8, Controller
Quantity:
- SKU: 18786948
- Manufacturer: ARECA
- MPN: ARC-1686-2NOD
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$629.00
| Entry Level M.2 NVMe Hardware RAID Adapter | |
| ARC-1686-2NOD | |
| Form Factor | 64.41(H) x 167.65(L) mm |
| I/O Processor | Tri-Mode Dual Core ARM A15 1.6GHz ROC |
| Drive Connector | 2 x M.2 Connector |
| Drive Support | 6Gb/s SATA, Gen 4.0 PCIe (NVMe) |
| Management Port | In-Band: PCIe |
| Operating Voltage | 12V |
| Power Consumption | Approximately 12/14 Watts (without M.2 drive) |
| Operating Temperature | 0 °C to 55 °C |
| Operating Humidity | 10% to 85%, non-condensing |
| Hold-up Supercapacitor | On-board |
