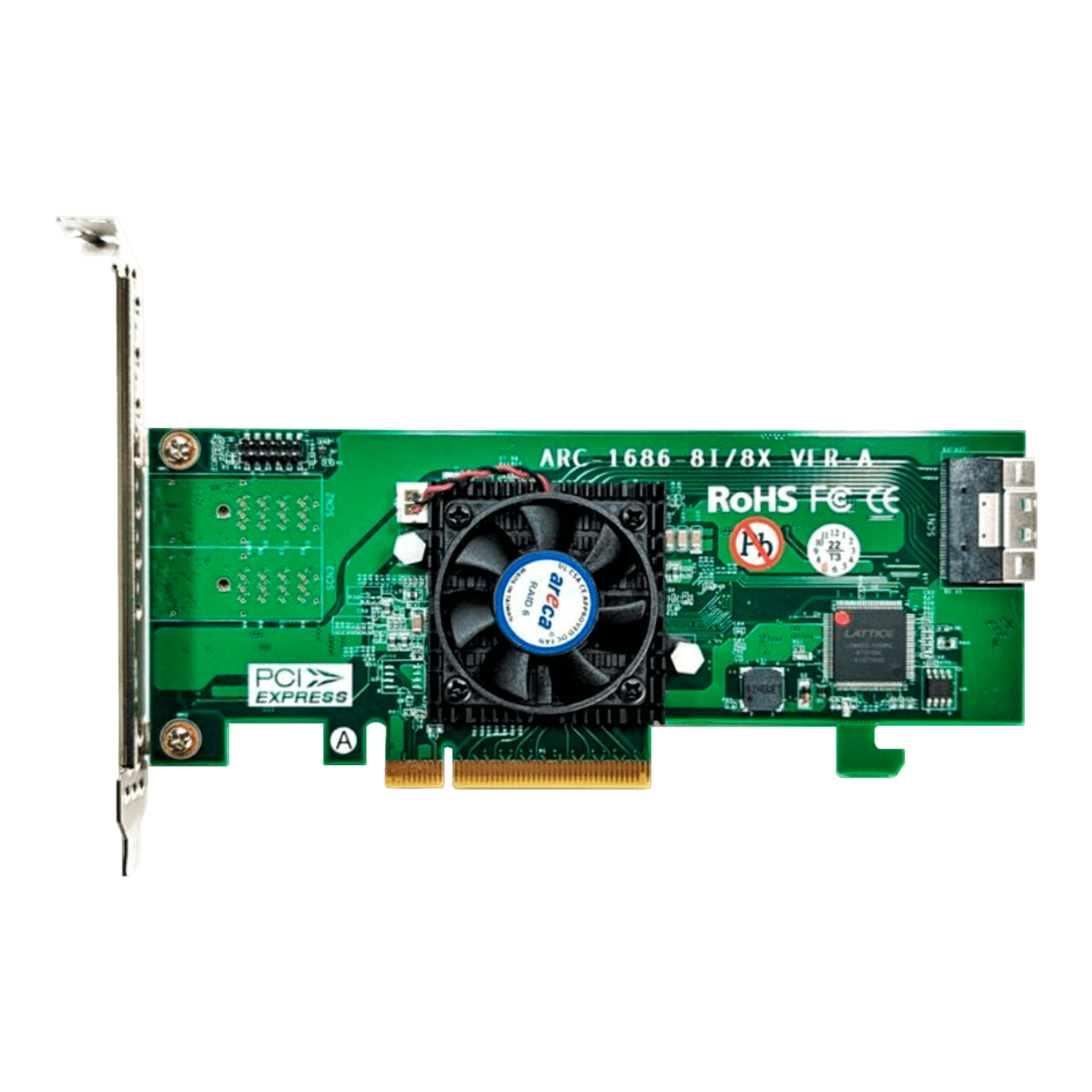

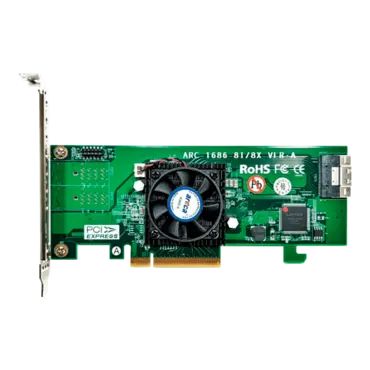

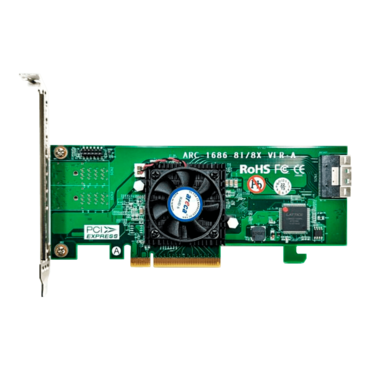

ARC-1686-8I, Tri-mode SATA/SAS/PCIe (NVMe) 12Gb/s, 8-Port, PCIe 4.0 x8, Controller
Quantity:
- SKU: 18739586
- Manufacturer: ARECA
- MPN: ARC-1686-8i
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$799.00
- Tri-mode interface at each drive ports-12Gb/s SAS/SATA/ Gen 4.0 PCIe (NVMe)
- x8 PCIe Gen 4.0 host interface
- Hardware secure boot ready
- Universal Bay Management (UBM) management
- SFF-9402 compliant connector pin-out
- SED support for hardware encryption capable drives
- Redundant flash image for adapter availability
- Support for SAS tape devices and transport layer retries (TLR) for error handling
- RAID levels 0, 1 (Simple/Multi Mirroring), 10, Single Disk (Single/Dual/Triple) or JBOD
- Broad operating support including Windows, Linux (open source), FreeBSD (open source) and Mac
| 8 Ports PCIe Gen 4.0 Cost-Effective RAID Adapters | |
| Form Factor | LP-MD2 : 64.41(H) x 167.65(L) mm |
| I/O Processor | Tri-Mode Dual Core ARM A15 1.6GHz ROC |
| Drive Connector | 1 x SFF-8654 [x8] |
| Drive Support | 12Gb/s SAS, 6Gb/s SATA, Gen 4.0 PCIe (NVMe) |
| Max Devices Support | 32 |
| Management Port | In-Band: PCIe |
| Enclosure Ready | SGPIO, SES2 and UBM |
| Operating Voltage | 12V |
| Power Consumption | Approximately 10.2 Watts |
| RAID Levels | 0, 1 (Simple/Multi Mirroring), 10, Single Disk (Single/Dual/Tri ple) or JBOD |
| Software Package | Same as ARC-1886 Tri-Mode RAID Adapter |
