Model |

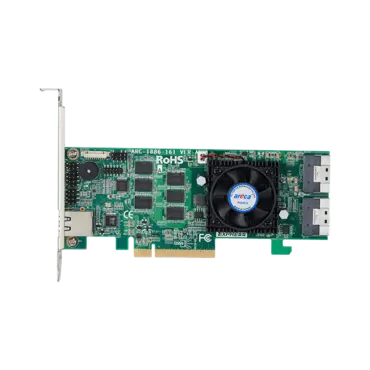

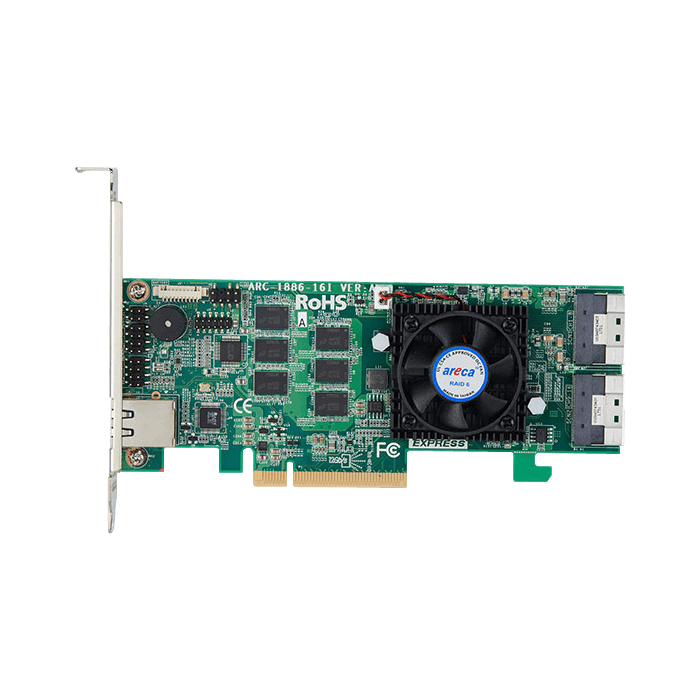

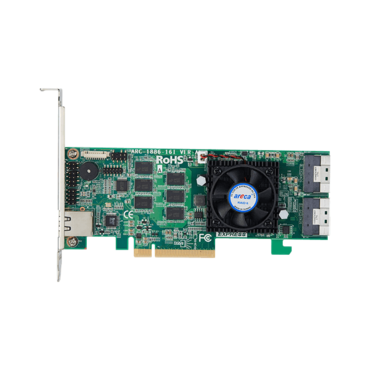

ARC-1886-16I |
Host Bus Interface |
8-Lane PCI Express® 4.0 |
Physical Dimensions |
LP-MD2: 167.65(L) x 64.41(H) mm |
Ports |
16 x internal |
Drive Connectors |
2 x SFF-8654 [x8] |
RAID-on-Chip Controller |
Tri-mode Dual Core ARM A15 1.6GHz ROC |
Cache Memory |
8GB on-board DDR4-2666 SDRAM with ECC Protection |
Data Transfer Rate |
Up to 12Gb/s SAS/SATA/Gen 4.0 PCIe (NVMe) per port |
Drive Support |
- Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSDs, using 12Gb/s SAS expander
- Up 32 NVMe drives through the PCIe switches
|
Power Consumption |
Approximately 14 Watts |
Operating Temperature |
0 °C to 60 °C |
Operating Humidity |
10% to 85%, non-condensing |
Cache Protection |
ARC-1886-CBM |
