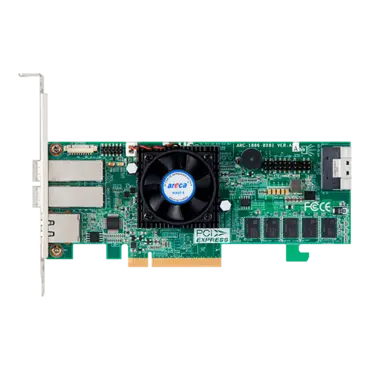

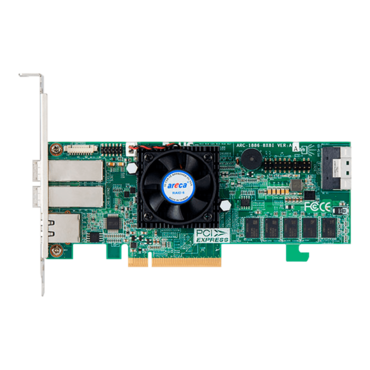

ARC-1886-8X8I, Tri-mode SATA/SAS/PCIe (NVMe) 12Gb/s, 8-Port External (2x SFF-8644), 8-Port Internal (1x SFF-8654), PCIe 4.0 x8, Controller with 8GB Cache
Quantity:
- SKU: 18808270
- Manufacturer: ARECA
- MPN: ARC-1886-8x8i
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,299.00
| ARC-1886 Series 16-Ports PCIe Gen 4.0 Tri-Mode RAID Adapters | |
| ARC-1886-8X8I | |
| Host Bus Interface | 8-Lane PCI Express® 4.0 |
| Physical Dimensions | LP-MD2: 167.65(L) x 64.41(H) mm |
| Ports | 8 x internal & 8 x external |
| Drive Connectors |
1 x SFF-8654 [x8] 2 x SFF-8644 [x4] |
| RAID-on-Chip Controller | Tri-mode Dual Core ARM A15 1.6GHz ROC |
| Cache Memory | 8GB on-board DDR4-2666 SDRAM with ECC Protection |
| Data Transfer Rate | Up to 12Gb/s SAS/SATA/Gen 4.0 PCIe (NVMe) per port |
| Drive Support |
|
| Power Consumption | Approximately 14 Watts |
| Operating Temperature | 0 °C to 60 °C |
| Operating Humidity | 10% to 85%, non-condensing |
| Cache Protection | ARC-1886-CBM |
