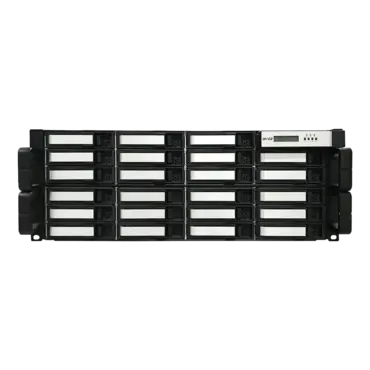

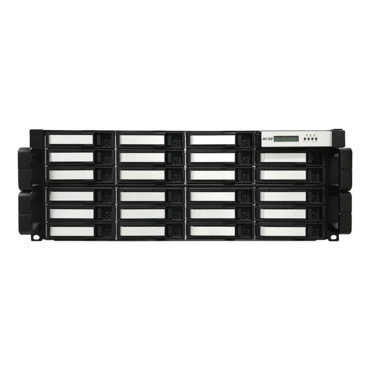

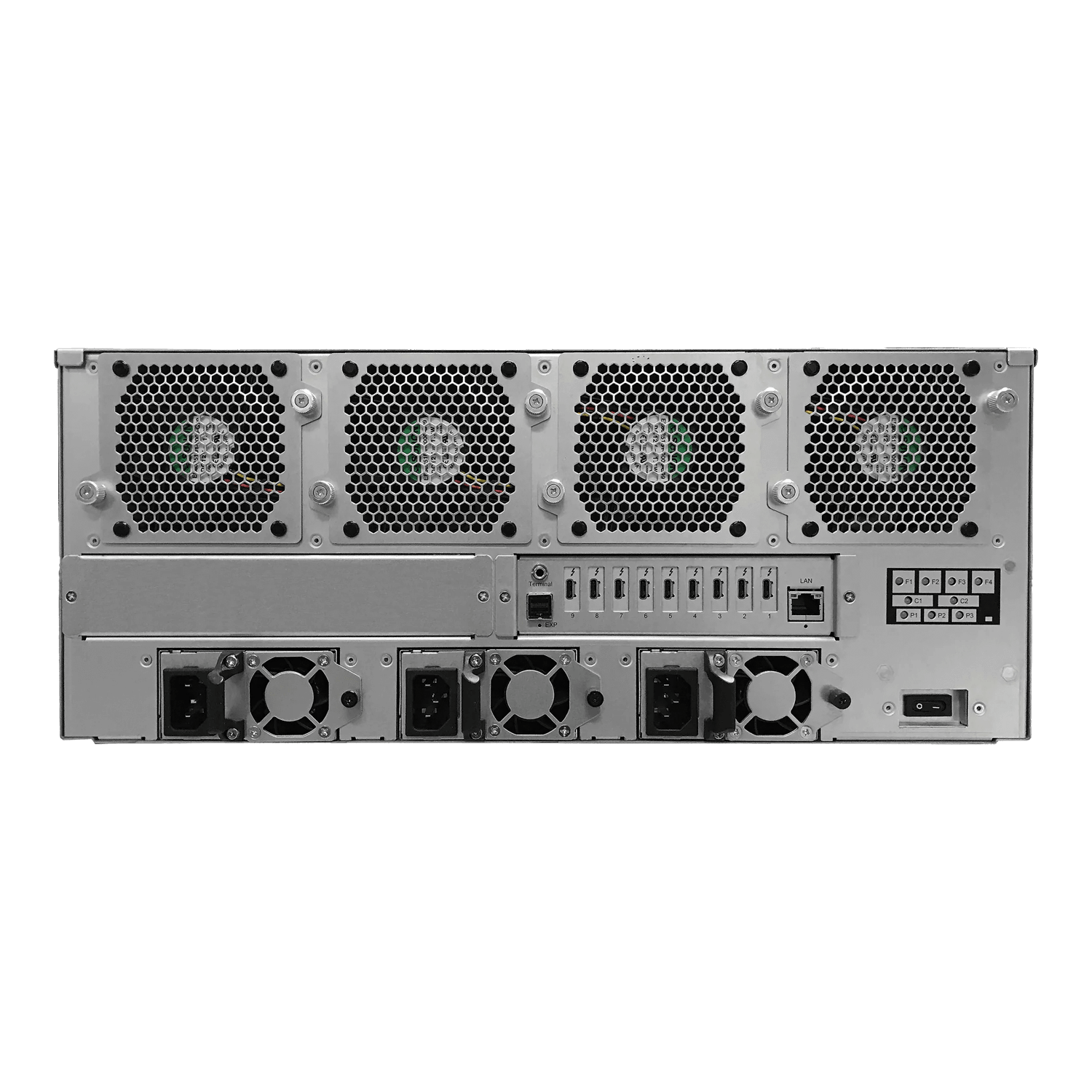

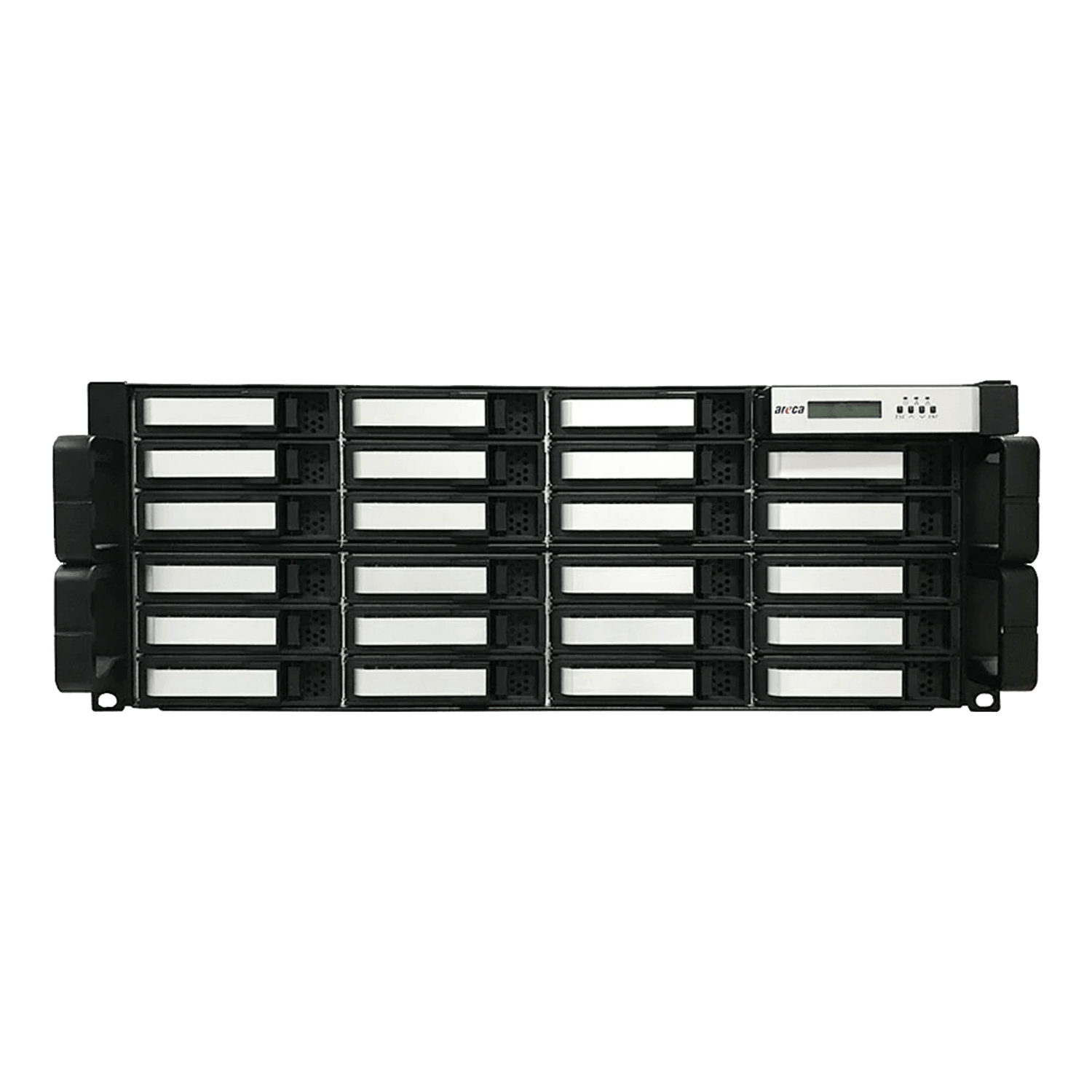

ARC-8050T3-SAN9, 24-Bay 4U Rackmount 9-Port Thunderbolt 3 SAN / Hardware RAID / Redundant Power Supply
Quantity:
- SKU: 18828882
- Manufacturer: ARECA
- MPN: ARC-8050T3-SAN9
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$10,033.74
| Thunderbolt™ 3 to 12Gb/s SAS RAID Storage | ||||
| ARC-8050T3-SAN9 | ||||
| Form Factor | 4U-24 bays 19-inch | |||
| Host Connection | Thunderbolt 3 x 9 | |||
| Disk Support | 24 x 12Gb/s SAS/SATA 3.5”/2.5”HDDs/SSDs | |||
| Expansion Support | One SFF-8644 expansion up to 512 HDDs | |||
| I/O Processor | Dual Core 1.2 GHz SAS ROC | |||
| On-Board Cache | 4GB on-board SDRAM with ECC protection | |||
| Cooling Fan | 4 x 2700rpm | |||
| Power Supply |
• Redundant and hot-swappable 550W x2 with PFC and energy-efficient 80Plus Platinum Compliant. • Supports 100–240VAC input at 47 and 63Hz frequency |
|||
|
Physical Dimensions (H x W x D) |
Without handles: 6.9 x 17.5 x 17.6 in (176.4x445x448 mm) |
|||
|
With handles: 6.9 x 18.9 x 19.0 in (176.4x482x484 mm) |
||||
| Weight | 75 lbs / 34Kg | |||
| RAID Level | 0, 1, 1E, 3, 5, 6, 10, 30, 50, 60, Single Disk or JBOD | |||
| Sound Pressure Level | 40.3 dB | |||
| OS Support | macOS 10.12 or later & Windows 8/10 or later | |||
| BBM Support | ARC-6120BAT121-7 | |||
