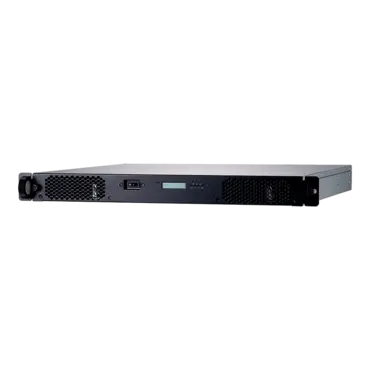

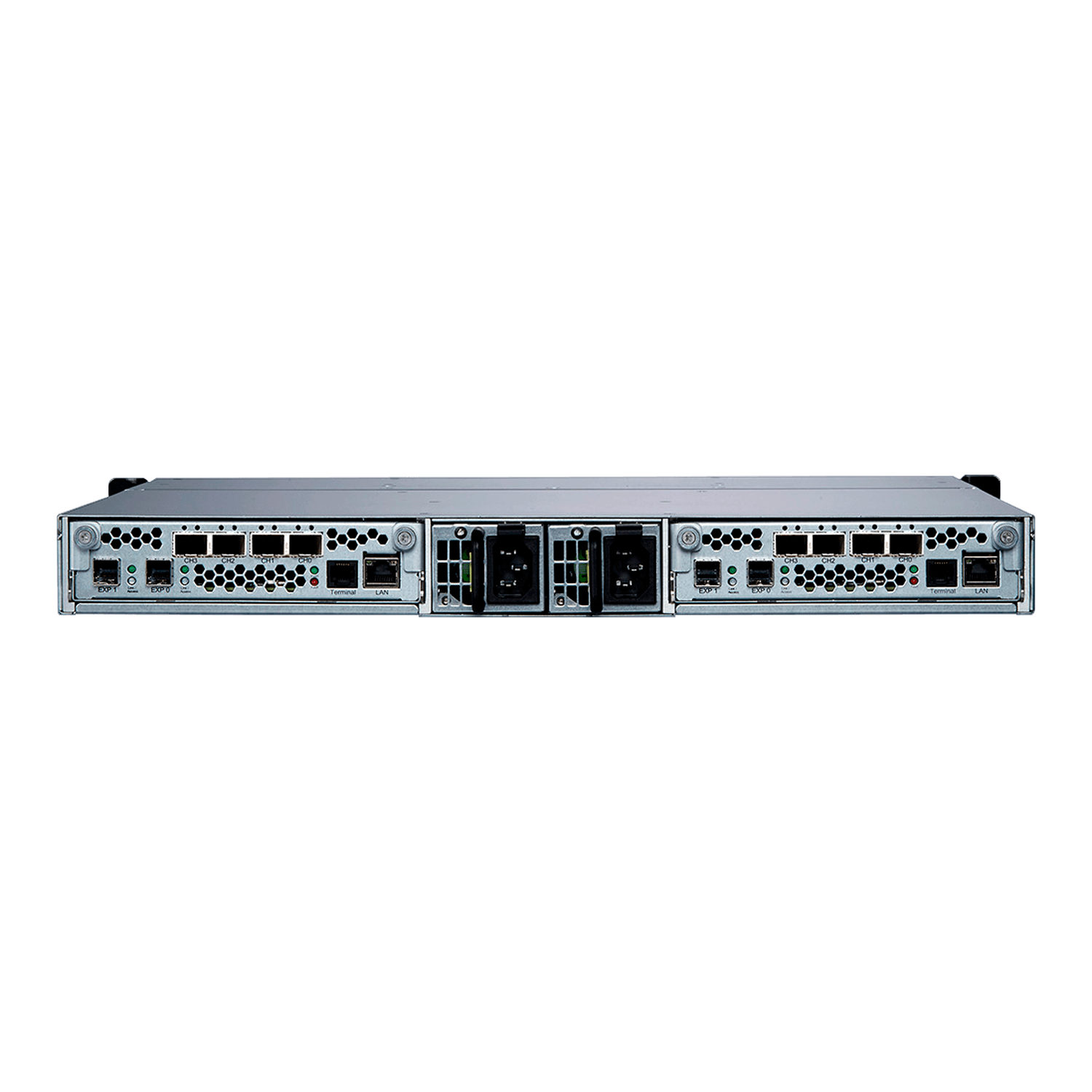

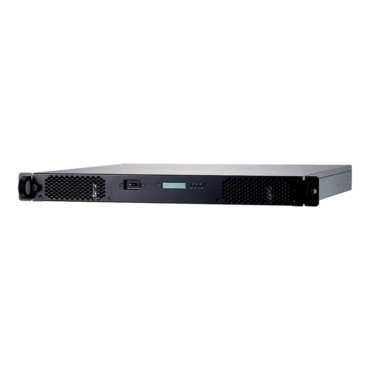

ARC-9200-4FC, 12Gb SAS to FC (32Gb/Quad-Port) Active-Active RAID Controller - 1U Rackmount / Redundant Power Supply
Quantity:
- SKU: 18846820
- Manufacturer: ARECA
- MPN: ARC-9200-4FC
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$8,999.00
| ARC-9200 Series SAS 1U_RAID Head | |
|
-Fibre- ARC-9200FS-DR1 ARC-9200FD-DR1 ARC-9200FS5QR1 ARC-9200FD5QR1 |
|
| Form Factor | 1U, 19-inch rackmount chassis |
| Host Interface |
• Fibre-to-SAS 2/4 x 32Gb/s Fibre channels |
| Host Connector | 2/4 x SFP+ |
| JBOD Expansion Port | Dual downstream SFF-8644 (4 x 12Gb/s) expansion ports per controller |
| Max. Drives per RAID Ctrl | Up to 512 12Gb/s SAS or 6Gb/s and 3Gb/s SAS/SATA HDDs/SSD, using 12Gb/s SAS JBOD |
| Data Transfer Rate | Up to 12Gb/s per port |
| RAID_on_Chip | Dual Core PPC476 1.2 GHz ROC |
| Cache Protection |
One 204-pin SO-DIMM socket for 2GB (default) DDR3-1600, 1RX8/2RX8, ECC module - up to 4GB or 8GB DDR3-1600, 1RX8/2RX8, Unbuffered/Registered ECC module |
| Operating Systems | OS Independent |
| Power Supply |
• Dual 200W hot swap and redundant with PFC, N+1 design • AC voltage: 110V@40A, 230V@80A for input inrush current with PFC (auto-switching) • Supports 90-264 VAC input at 47-63 Hz frequency |
|
Physical Dimensions (H x W x D) |
• Without handles: 43.5 x 445 x 400 mm (1.7 x 17.5 x 15.7 in) • With handles: 43.5 x 482 x 436 mm (1.7 x 22.9 x 17.1 in) |
| Weight |
• Single: 27 kg (59.5 lb) • Dual: 28 kg (61.7 lb) |
| RAID Features |
• RAID level 0, 1, 10(1E), 3, 5, 6, 30, 50, 60, Single Disk or JBOD • Multiple RAID 0 and RAID 10(1E) support (RAID 00 and RAID 100) • Automatic drive failover and detection and rebuild using multiple Global, Dedicated or Enclosure hot- spare drives • Multiple pairs SSD/HDD disk clone function • SSD automatic monitor clone (AMC) support • SED (Self-encrypting drives) function support • Support for native 4K and 512 byte sector devices • Support HDD firmware update • Hot-swap and redundant components for increasing availability |
| RAID Management Software |
• Flashable firmware via RS-232 and LAN port • Push Buttons and LCD for setup and status • Firmware-embedded manager via RS-232 port • Browser-based RAID manager, SMTP manager, SNMP agent and Telnet function • API with sample and functional code • ArcCLI (command-line interface) • ArcSAP monitor utility easily manage multiple RAID units |
| Availability and Reliability |
• Redundant controller operation with active/active and fail-over/fail-back function • Dual-active RAID controller with cache mirroring through dedicated high speed bus • Automatic synchronization of firmware version in the dual-active mode • Multi-path & load-balancing support |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 10% to 80%, non-condensing |
| Regulatory Certification | CE, FCC |
| Warranty | 3 years |
| FBM/BBM Support | ARC-1883-BAT-7/ ARC-1883-CAP-7 |
