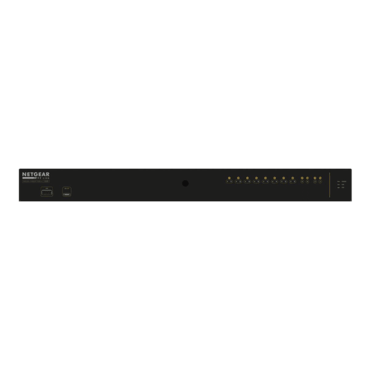

AV Line M4250-10G2XF-PoE++ (GSM4212UX), 8x1G Utra90 PoE++, 802.3bt 720W, 2x1G, 2xSFP+, Managed Switch
Quantity:
- SKU: 13593765
- Manufacturer: NETGEAR
- MPN: GSM4212UX-100NAS
- Availability: USUALLY SHIPS WITHIN 1-3 WEEKS
Starting At
$1,199.99
- Designed for a clean integration with traditional rack-mounted, AV equipment

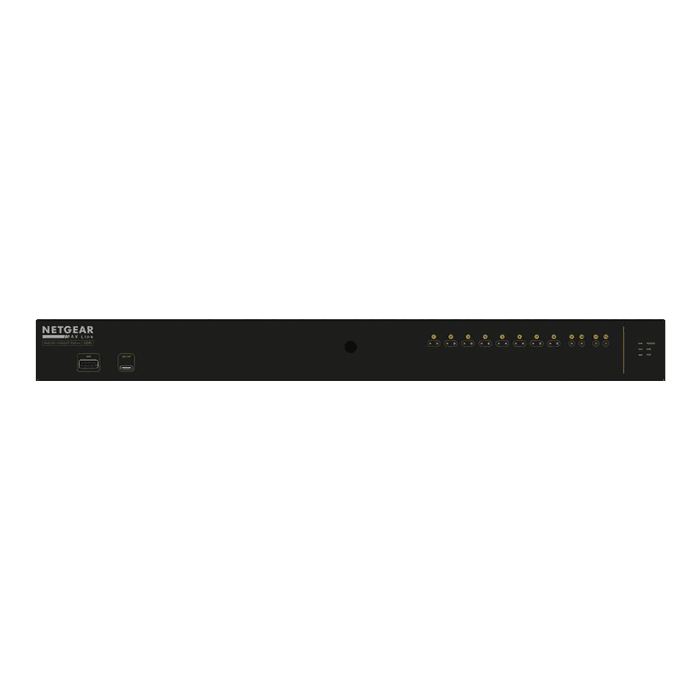

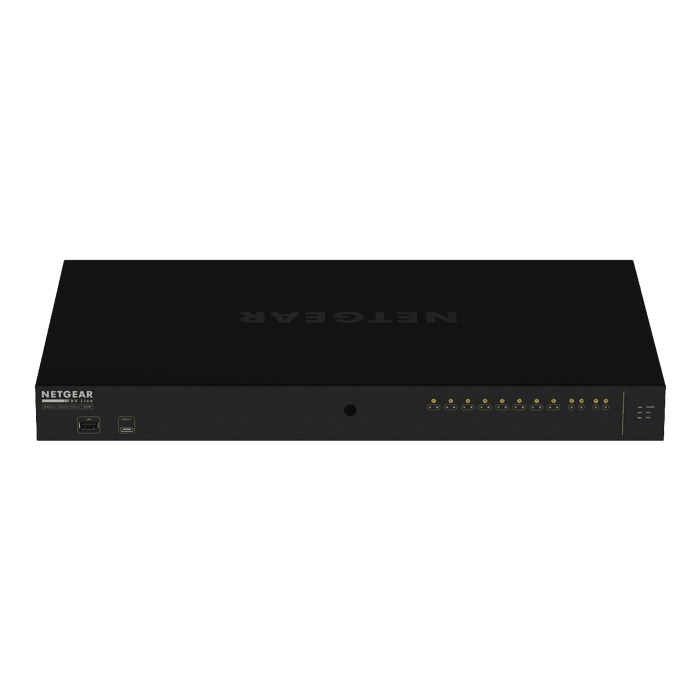

- The M4250 switches come with a sleek, black display panel with status in front and all cabling plus additional status in the back
- Reversed mounting is possible when ports are desired on the front of the rack
- A second pair of rackmount ears allows the switches to be mounted recessed by 2-inches to allow for the cabling
- Software-controlled fan adjustments enable the fans to be turned off when ambient temperature and PoE loads are appropriate for a totally fanless operation
- Threaded holes on the bottom (4xM5 for 50x100mm VESA) and in front (1xM10 for clamps) allow for universal mounting options outside the rack as well
| Model | |
| Brand | NETGEAR |
| Model | GSM4212UX-100NAS |
| Format & Standards | |
| Format | Rackmount |
| Network Management Type | Managed |
| Ports & Interface | |
| Primary Ports | 8 x RJ45 + 4 x SFP |
| Primary Port Speed | 10/100/1000Mbps + 10 Gigabit |
| Primary Port Type |
8 x 10/100/1000BASE-T (RJ45) Ultra90 PoE++ with 720W PoE budget 2 x 10/100/1000BASE-T (RJ45) 2 x 1000/10GBASE-X (SFP+) |
| Data Transmission | |
| MAC Address Table | 16K |
| VLAN Support | 4K VLANs |
| Jumbo Frames | 12KB |
| Details | |
| Buffer Memory | 16Mb |
| PoE | Yes |
| LEDs |
Power LED PoE Max LED (PoE models) Fan LED Port LEDs |
| Dimensions & Weight | |
| Dimensions | 17.32" x 10.12" x 1.70" |
| Weight | 8.44 lbs. |
