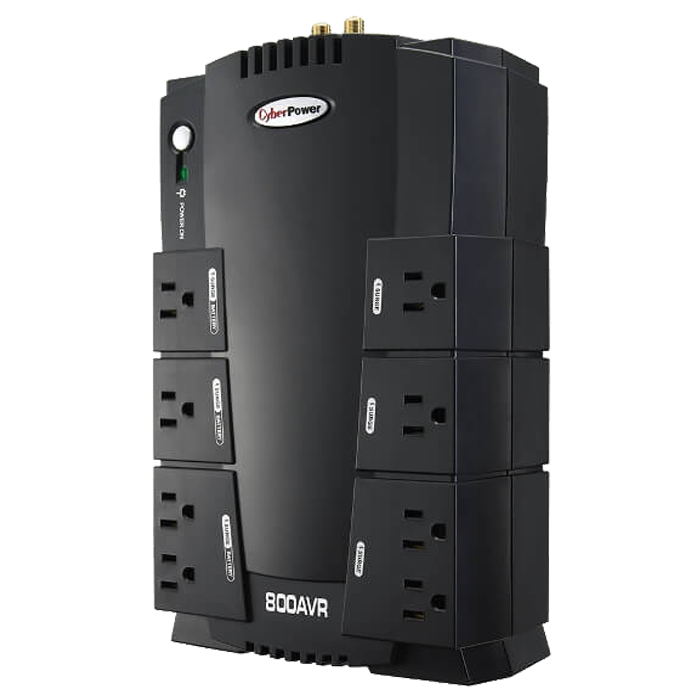

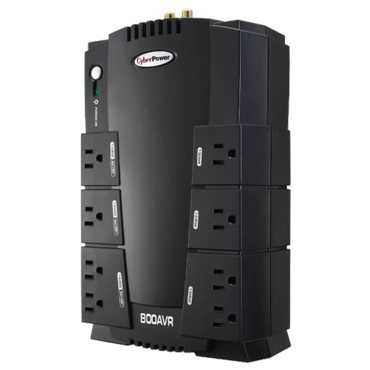

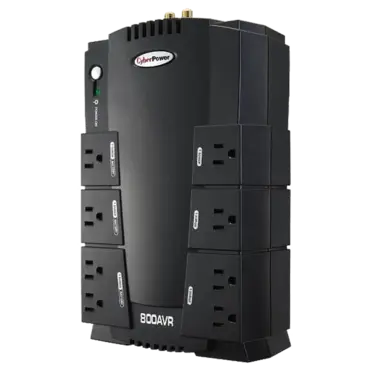

AVR CP800AVR, 800 VA/450 W, Simulated Sine Wave, Tower UPS
- SKU: 271909
- Manufacturer: CYBERPOWER SYSTEMS
- MPN: CP800AVR
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
The CyberPower AVR Series CP800AVR uninterruptible power supply (UPS) safeguards small office workstations, networks and home entertainment systems against surges, spikes, sags, and brownouts, protecting equipment and valuable data during a power outage. Its automatic voltage regulation (AVR) monitors incoming AC power and maintains a safe voltage level. Patented GreenPower UPS™ advanced circuitry reduces UPS energy costs up to 75% compared to competitive models.

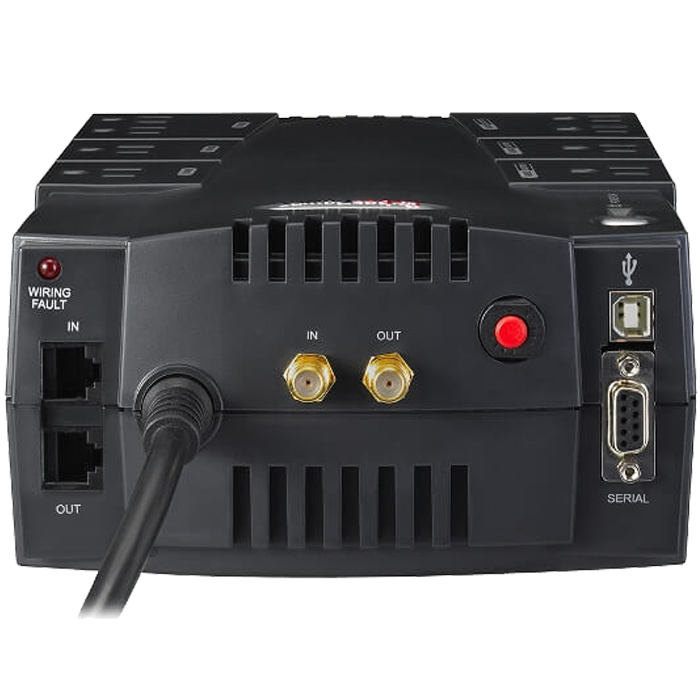

The CP800AVR unit has a capacity of 800VA/450Watts, eight (8) NEMA 5-15R receptacles, widely-spaced to accommodate transformer-based plugs. Its compact design allows for horizontal or vertical placement, or it can be conveniently mounted on a wall. This UPS has a maintenance-free, user-replaceable 12V/8.5Ah battery and offers connectivity via one (1) HID USB and one (1) DB9 serial port. Protection for phone/network (RJ11/RJ45) and cable/coax (RG-6) is included. EMI/RFI filters increase the immunity of the load to noise disturbances. PowerPanel® Personal Edition Smart Management software is included to monitor the vitals of the UPS and safely shut down the system in case of a power outage.
| General | |
| UPS Topology | Line Interactive |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Input | |
| Voltage | 90Vac - 140Vac |
| Frequency | 60Hz ± 3Hz |
| Plug Type | NEMA 5-15P |
| Plug Style | Right Angle |
| Cord Length | 6' |
| Output | |
| VA | 800 |
| Watts | 450 |
| Automatic Voltage Regulation | Yes |
| On Battery Voltage | 120Vac ± 5% |
| On Battery Frequency | 60Hz ± 1% |
| On Battery Waveform | Simulated Sine Wave |
| Outlets - Total | 8 |
| Outlets - Battery & Surge Protected | 4 |
| Outlets - Surge-Only Protected | 4 |
| Outlets - Widely Spaced | 4 |
| Overload Protection | Internal circuitry limiting / circuit breaker |
| Transfer Time | 4ms |
| Battery | |
| Runtime at Half Load (min) | 10 |
| Runtime at Full Load (min) | 3 |
| Battery Type | Sealed Lead-Acid |
| Battery Size | 12V/9AH |
| Replacement Battery | RB1280A |
| Battery Quantity | 1 |
| User Replaceable | Yes |
| Typical Recharge Time | 8 Hours |
| Surge Protection & Filtering | |
| Surge Suppression | 890 Joules |
| Maximum Surge Current | 36,000 Amps |
| Phone RJ11 / Ethernet RJ45 | 1-In, 1-Out (Combo) |
| Coax Protection RG6 | 1-In, 1-Out |
| Management & Communications | |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| Management Cable | USB Cable |
| LED Indicators | Power On, Wiring Fault |
| Audible Alarms | Input Fault, Battery Fault, Low Battery, Overload |
| Software | PowerPanel® Personal Edition |
| Physical | |
| Form Factor | Compact |
| Keyhole Mounting Slots | Yes |
| Dimensions (WxHxD) (in.) | 11 x 6.625 x 3.5 |
| Weight (lbs.) | 14.3 |
| Environmental | |
| Operating Temperature | 32°F to 95°F / 0°C to 35°C |
| Operating Relative Humidity | 0% - 95% non-condensing |
| Certifications | |
| Safety | UL1778, cUL 107.1, FCC DOC Class B |
| Environmental | RoHS Compliant |
| Warranty | |
| Product Warranty | 3 Years Limited |
| Connected Equipment Guarantee | Lifetime |
| CEG Amount | $200,000 |
