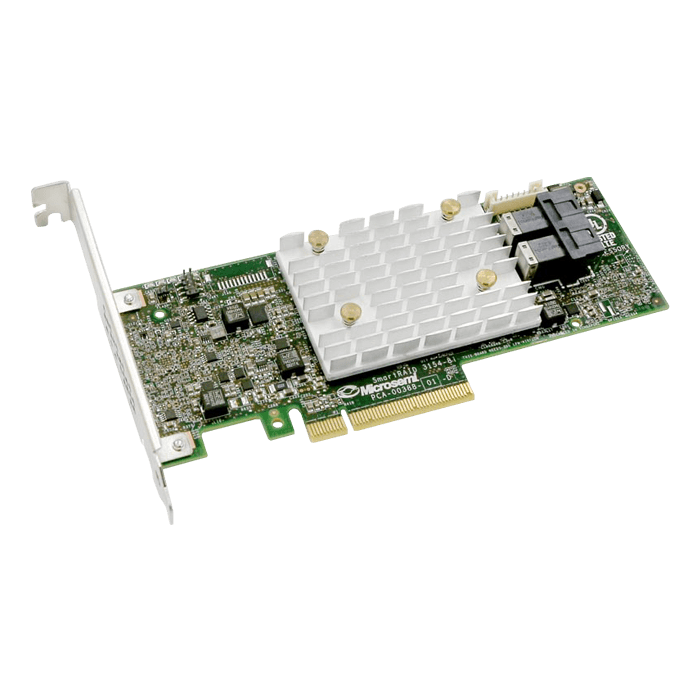

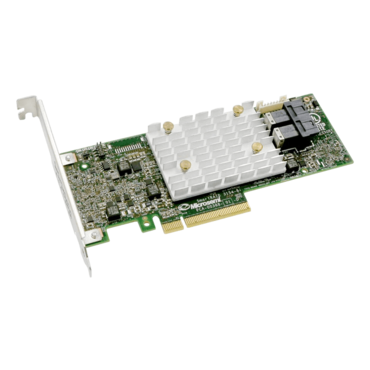

Adaptec SmartRAID 3154-8i, SAS 12Gb/s, 8-Port, PCIe 3.0 x8, Controller with 4GB Cache
Quantity:
- SKU: 11591973
- Manufacturer: Microsemi
- MPN: 2291000-R
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$938.38
- >1.7M 4K random read IOPs, a >60% boost over prior generations
- maxCache 4.0 caching software
- RAID levels: 0, 1, 5, 6, 10, 50, 60, 1 ADM, and 10 ADM
- Supports simultaneous running of RAID and raw devices (mixed mode)
- Fourth-generation Zero-Maintenance Cache Protection (ZMCP), integrated with all SmartRAID 315x products
- Up to 24 native SAS/SATA ports in a LP/MD2 design
- 12 Gbps and 6 Gbps compatibility with HDD or SSD SAS/SATA devices
- 12 Gbps throughput per SAS port using mini-SAS HD connectors
- Microsemi's 12 Gbps SmartROC x8 PCIe Gen3 interface with 12 Gbps SAS ports to enable a new generation of performance
| SmartRAID 3100 with SmartROC 3100 | ||||
|---|---|---|---|---|
| Model | SmartRAID 3154-8i | |||
| Order Number | 2291000-R | |||
| Ports | 8 internal | |||
| Connectors | 2 x SFF-8643 | |||
| maxCache 4.0 | Yes | |||
| Cache Protection | Yes, integrated | |||
| Package Contents | • SmartRAID 3154-8i adapter with integrated flash backup
• Additional low profile vented bracket |
|||
| RAID Levels | 0, 1, 5, 6, 50, 60, 1 ADM, 10 ADM | |||
| Form Factor | MD2-Low Profile | |||
| Bus Interface | 8-Lane PCIe Gen3 | |||
| Processor | 12 Gbps ROC | |||
| Key software features |
|
|||
| Management utilities |
|
|||
| Cache | 4GB DDR4/2100 MH | |||
| Operating Systems | Microsoft Windows, Red Hat Linux, SUSE Linux, Fedora, Debian Linux, Ubuntu Linux, Sun Solaris, FreeBSD, VMware ESXi. The latest drivers are available at storage.microsemi.com/en-us/support/start. Supports open-source Linux drivers and inbox drivers.
For a detailed list, visit: ASK Answer ID 17449. |
|||
| Dimensions | 2.535" H × 6.6" L (64 mm × 167 mm) | |||
| Operating Temperature | 0 °C to 55 °C with 200 LFM airflow, without flash (SmartRAID 3154-24i requires 250 LFM); 0 °C to 50 °C with 200 LFM airflow, with flash (SmartRAID 3154-24i requires 250 LFM)
Note: This Microsemi Adaptec card contains a powerful RAID processor which requires adequate airflow to operate reliably. Only install this card into server or PC chassis with at least 200 LFM airflow (250 LFM airflow for (SmartRAID 3154-24i). Temperature measured 1 inch from RAID adapter. |
|||
| Regulatory Certification | CE, FCC, UL, C-tick, VCCI, KCC, CNS | |||
| Environmental Compliance | RoHS | |||
| MTBF | 1.37 million hours, measured at 40 °C | |||
| Warranty | 3 years | |||
