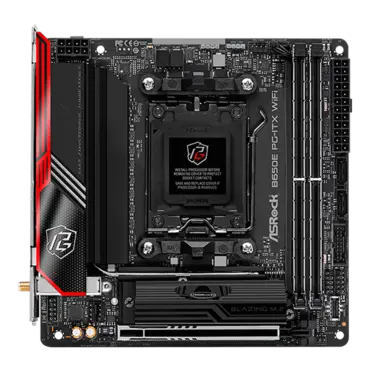

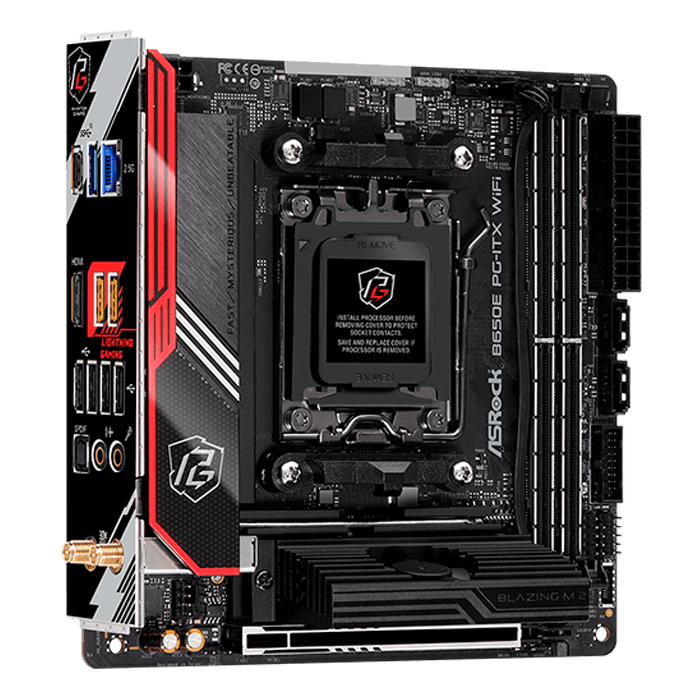

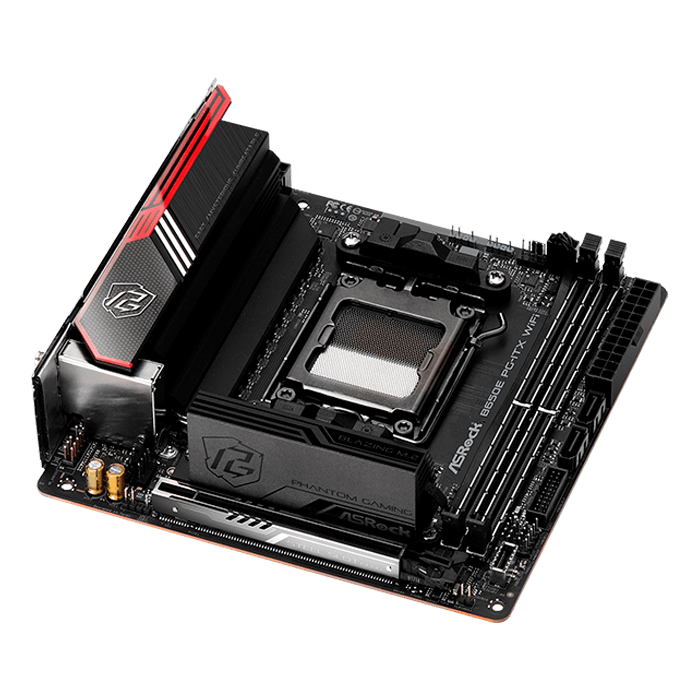

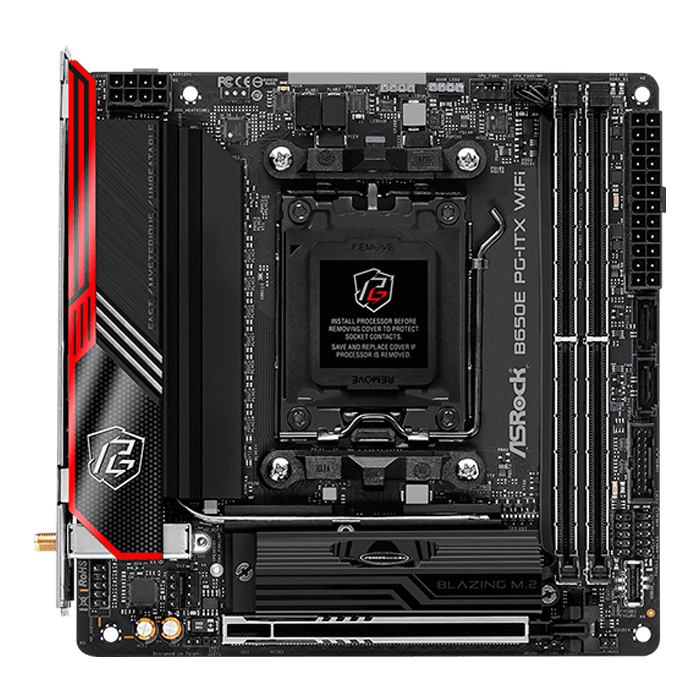

B650E PG-ITX WiFi, AMD B650 Chipset, AM5, Mini-ITX Motherboard
Quantity:
- SKU: 15218173
- Manufacturer: ASROCK
- MPN: B650E PG-ITX WiFi
- Availability: TEMPORARILY OUT OF STOCK
Starting At
$341.55
- Supports AMD Ryzen™ 7000 Series Processors
- 10+2+1 Phase Power Design, SPS
- 2 x DDR5 DIMMs, supports up to 6200+(OC)
- 1 PCIe 5.0 x16
- Graphics Output Options: 1 HDMI, eDP
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
-
1 Blazing M.2 (PCIe Gen5x4),
1 Hyper M.2 (PCIe Gen4x4),
2 SATA3 -
1 USB 3.2 Gen2x2 Type-C (Front),
1 USB 3.2 Gen2 Type-C (Rear),
3 USB 3.2 Gen2 Type-A (Rear),
2 USB 3.2 Gen1 (Front),
6 USB 2.0 (4 Rear, 2 Front) - Killer 2.5G LAN
- Killer 802.11ax Wi-Fi 6E + Bluetooth
| Unique Feature |
Superb Productivity - PCIe Gen5 (Graphics, M.2) - ASRock Blazing M.2 Gen5 Fan Heatsink - Dual Channel DDR5 Rock-Solid Durability - Server-Grade Low-Loss PCB - 10+2+1 Power Phase, 105A SPS for VCore - Flexible Integrated I/O Shield Ultrafast Gaming - Killer 2.5G LAN, Killer 802.11ax Wi-Fi 6E Module - Killer DoubleShot™ Pro - ASRock Lightning Gaming Ports EZ Update - ASRock Auto Driver Installer |
| CPU | - Supports AMD Socket AM5 Ryzen™ 7000 Series Processors |
| Chipset | - AMD B650 |
| Memory |
- Dual Channel DDR5 Memory Technology - 2 x DDR5 DIMM Slots - Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC) - Max. capacity of system memory: 64GB - Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| BIOS | - 256Mb AMI UEFI Legal BIOS with GUI support |
| Graphics |
Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) - 1 x eDP 1.4, supports max. resolution up to Full HD 60Hz - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz |
| Audio |
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec) - Impedance Sensing on Rear Out port - Individual PCB Layers for R/L Audio Channel - Nahimic Audio |
| LAN |
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s - Killer E3100G - Supports Killer LAN Software - Supports Killer DoubleShot™ Pro |
| Wireless LAN |
- 802.11ax Wi-Fi 6E Module - Supports IEEE 802.11a/b/g/n/ac/ax - Supports Dual-Band 2x2 160MHz with extended 6GHz band support* - 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology - Supports Bluetooth + High speed class II - Supports MU-MIMO - Supports Killer LAN Software - Supports Killer DoubleShot™ Pro *Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows® Update and software updates once available. A 6GHz compatible router is required for 6E functionality. |
| Slots |
CPU: - 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode* Chipset: - 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module *Supports NVMe SSD as boot disks |
| Storage |
CPU: - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode* - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode* Chipset: - 2 x SATA3 6.0 Gb/s Connectors *Supports NVMe SSD as boot disks Supports ASRock U.2 Kit |
| RAID |
- Supports RAID 0 and RAID 1 for SATA storage devices - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices* *Requires additional M.2 NVMe expansion cards to support RAID 10 |
| USB |
- 1 x USB 3.2 Gen2x2 Type-C (Front) - 1 x USB 3.2 Gen2 Type-C (Rear) - 3 x USB 3.2 Gen2 Type-A (Rear) - 2 x USB 3.2 Gen1 (Front) - 6 x USB 2.0 (4 Rear, 2 Front) *All USB ports support ESD Protection |
| Connector |
- 1 x eDP Signal Connector - 2 x Addressable LED Headers* - 1 x CPU Fan Connector (4-pin)** - 1 x CPU/Water Pump Fan (M.2 Fan) Connector (4-pin) (Smart Fan Speed Control)*** - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**** - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector) - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector) - 1 x Front Panel Audio Connector (15μ Gold Audio Connector) - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver) *Support in total up to 5V/3A, 15W LED Strip **CPU_FAN1 supports the fan power up to 1A (12W). ***CPU_FAN2/WP (M.2 fan connector) supports the fan power up to 2A (24W). CPU_FAN2/WP (M.2 fan connector) is connected to the attached fan Cable of ASRock Blazing M.2 Gen5 Fan Heatsink pre-installed on M2_1 socket. ****CHA_FAN1/WP supports the fan power up to 2A (24W). CPU_FAN2/WP (M.2 fan connector) and CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Rear Panel I/O |
- 2 x Antenna Ports - 1 x HDMI Port - 1 x Optical SPDIF Out Port - 3 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_23 are Lightning Gaming Ports.) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) - 4 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x Line Out Jack (Gold Audio Jack) - 1 x Microphone Input Jack (Gold Audio Jack) |
| Software and UEFI |
Software - ASRock Motherboard Utility (Phantom Gaming Tuning) - Killer Control Center - ASRock Polychrome SYNC* UEFI - ASRock Full HD UEFI - ASRock Auto Driver Installer - ASRock Instant Flash *These utilities can be downloaded from ASRock Live Update & APP Shop. |
| Accessories |
- 1 x User Manual - 2 x SATA Data Cables - 1 x ASRock WiFi 2.4/5/6 GHz Antenna - 1 x Screw for M.2 Socket |
| Form Factor |
- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm - 10 Layer PCB |
| OS | - Microsoft® Windows® 10 64-bit / 11 64-bit |
| Certifications |
- FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required) |
