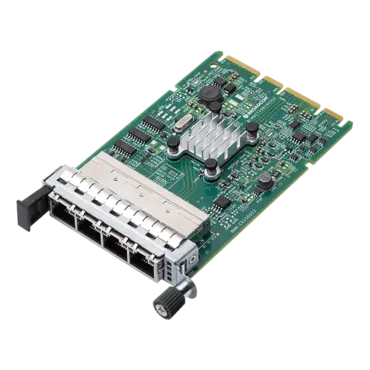

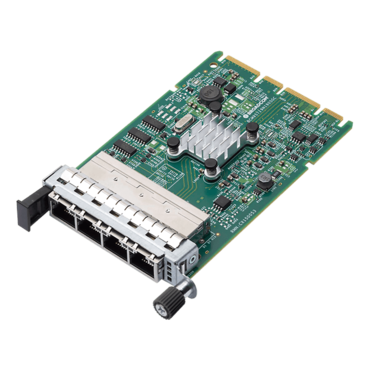

BCM95719N1905C, 1Gbps, 4xRJ45, Ethernet, OCP 3.0 Mezzanine Network Adapter

Quantity:
  • SKU: 14852896
  • Manufacturer: Broadcom
  • MPN: BCM95719N1905C
  • Availability: TEMPORARILY OUT OF STOCK
Starting At
$173.53
Quantity:
  • The BCM95719N1905C network interface card is RoHS-compliant.
  • Energy Efficient Ethernet-compliant with IEEE Std
  • 802.3az-2010.
  • Quad-port 10/100/1000BASE-T Ethernet NIC.
  • x4 PCI Express v2.1 at 5 GT/s or 2.5 GT/s.
  • Hardware assist for IEEE 1588 and IEEE 802.1AS time synchronization implementations.
  • MSI and MSI-X capabilities - up to 17 MSI-X vectors.
  • I/O Virtualization support for VMWare NetQueue and Microsoft VMQ:
  • - 17 receive queues and 16 transmit queues.
  • - 17 MSI-X vectors supporting per queue interrupt to host.
  • Function Level Reset (FLR).
  • ECC error detection and correction on internal SRAM.
  • Quad RJ-45 connectors with integrated link and activity LEDs.
  • RSS for multicore client processors.
  • TCP, UDP, and IP checksum offload.
  • Large Send Offload, TCP Segmentation Offload.
  • Wake-on-LAN (WOL) support that complies with ACPI requirements.
  • Network Controller Sideband Interface (NC-SI) over RMII Based Transport (RBT) physical interface.
  • FRU support.
  • Statistics for SNMP MIB II, Ethernet-like MIB, and Ethernet MIB (IEEE 802.3z, Clause 30).
  • Comprehensive diagnostic and configuration software suite.
  • Jumbo frame support with up to 9.6 KB packet size.
  • Conforms to the OCP 3.0 Design Specification Version 0.85.
Model
Brand Broadcom
Model BCM95719N1905C
Details
Speed  10/100/1000Mbps
Connectors 4 x RJ45
Interface PCI-Express x4
