BCM957412N4120C, 10Gbps, 2x SFP+, Ethernet, OCP 3.0 Mezzanine Network Adapter

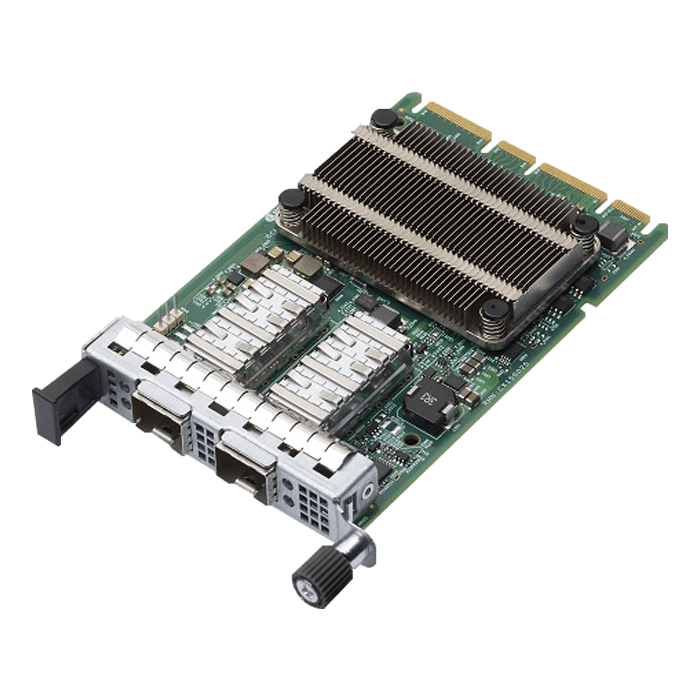

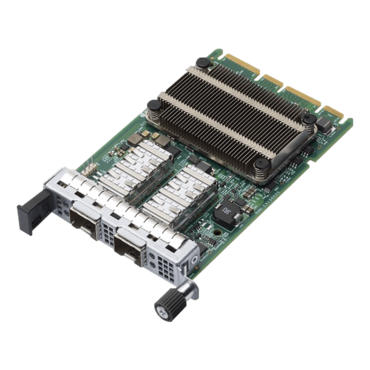

The Broadcom® BCM957412N4120C is a dual-port 10 Gb/s PCI Express 3.0 x8 network adapter designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with two SFP+ network connectors. The adapter supports SFP+ optical modules and copper directattach cables. The network adapter uses the Broadcom BCM57412 25GbE MAC controller with an integrated dual-channel 10GbE SFI transceiver.
- Dual-port pluggable media interface, which can connect
- to a 10G SFP+ optical transceiver or a copper directattach cable.
- Fully compliant with the SFF-8402 standard.
- x8 PCI Express 3.0 compliant.
- SR-IOV with up to 128 virtual functions (VFs).
- Function-Level Reset (FLR) support.
- TruFlow™ flow processing engine.
- Virtual Network Termination–VXLAN, NVGRE, Geneve,
- GRE encap/decap.
- vSwitch Acceleration.
- Tunnel-aware stateless offloads.
- DCB support – PFC, ETS, QCN, DCBx.
- RDMA over Converged Ethernet (RoCE).
- Network Controller Sideband Interface (NC-SI).
- SMBus 2.0.
- MCTP over SMBus.
- PCIe-based UART and KCS.
- Jumbo frames up to 9 KB.
- Advanced congestion avoidance.
- Multiqueue, NetQueue, and VMQ.
- IPv4 and IPv6 offloads.
- TCP, UDP, and IP checksum offloads.
- Large send offload (LSO).
- Large receive offload (LRO).
- TCP segmentation offload (TSO).
- Receive-side scaling (RSS).
Product Name | Broadcom NT BCM957412N4120C 10GB S Ethernet PCIE3.0 X8 OCP3.0 Network Adapter |
Product Type | 10Gigabit Ethernet Card |
Product Family | NetXtreme E |
Total Number of Ports | 2 |
Expansion Slot Type | SFP+ |
Form Factor | Plug-in Card |
Network Technology | 10GBase-X |
Host Interface | PCI Express 3.0 x8 |
Media Type Supported | Optical Fiber |
Product Series | E |
Product Model | BCM957412N4120C |
Product Line | NetXtreme |
