BCM957414N4140C, 25Gbps, 2xSFP28, Ethernet, OCP 3.0 Mezzanine Network Adapter
Quantity:
- SKU: 14898782
- Manufacturer: Broadcom
- MPN: BCM957414N4140C
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$297.04
BCM957414N4140C, 25Gbps, 2xSFP28, Ethernet, OCP 3.0 Mezzanine Network Adapter

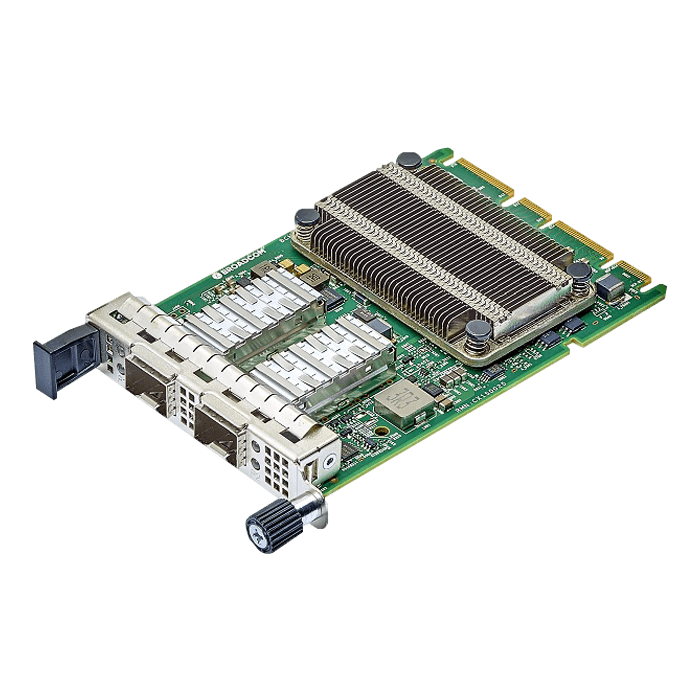

The Broadcom® BCM957414N4140C is a 25Gb/s dual port PCI Express 3.0 x8 NIC designed to the Open Compute Project (OCP) 3.0 Design specification in a small form factor with two SFP28 network connectors. The adapter supports SFP28 optical modules and direct attach copper cables. The network adapter uses a Broadcom BCM57414 25GbE MAC controller with an integrated dual 25GbE SFI transceiver.
- Dual-port pluggable media interface, which is
- compatible with a 25G SFP28 optical transceiver or a
- copper direct-attach cable.
- Fully compliant with the SFF-8402 standard.
- x8 PCI Express 3.0 compliant.
- SR-IOV with up to 128 virtual functions (VFs).
- Function-Level Reset (FLR) support.
- TruFlow™ flow processing engine.
- Virtual Network Termination–VXLAN, NVGRE, Geneve,
- GRE encap/decap.
- vSwitch Acceleration.
- Tunnel-aware stateless offloads.
- DCB support – PFC, ETS, QCN, DCBx.
- RDMA over Converged Ethernet (RoCE)
- Network Controller Sideband Interface (NC-SI).
- SMBus 2.0.
- MCTP over SMBus.
- PCIe-based UART and KCS.
- Jumbo frames up to 9 Kb.
- Advanced congestion avoidance.
- Multiqueue, NetQueue, and VMQ.
- IPv4 and IPv6 offloads.
- TCP, UDP, and IP checksum offloads.
- Large send offload (LSO).
- Large receive offload (LRO).
- TCP segmentation offload (TSO).
- Receive-side scaling (RSS).
- Transmit-side scaling (TSS).
- VLAN insertion/removal.
- Interrupt coalescing.
- Network boot—PXE, UEFI.
- iSCSI boot.
- Wake-on-LAN (WOL).
- MSI and MSI-X.
- Conforms to the OCP 3.0 Design Specification Version 1.00.
| Lifecycle | Active |
| Distributor Inventory | Yes |
| Adapter Type | OCP 3.0 |
| ASIC | BCM57414 |
| Connectors | SFP28 |
| OS Support | CentOS, Debian, Microsoft Windows, Oracle Linux, Oracle Solaris, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware, VMware ESX, VMware vSphere, Windows Hyper-V, Windows Server |
| Host Connector | PCIe 3.0 x8 |
| Link-Speeds | 25/10/1GbE |
| Multi-Host | No |
| NPAR | Yes |
| Ordering Part # | BCM957414N4140C |
| Ports | 2 |
| RoCEv2 | Yes |
| TruFlow™ | Yes |
| TruManage™ | Yes |
