READY TO SHIP

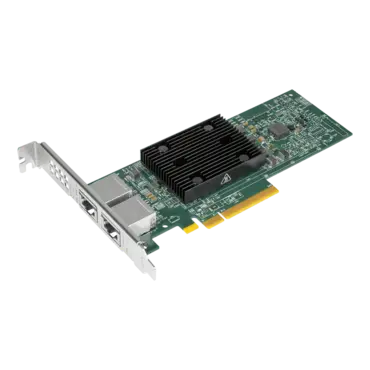

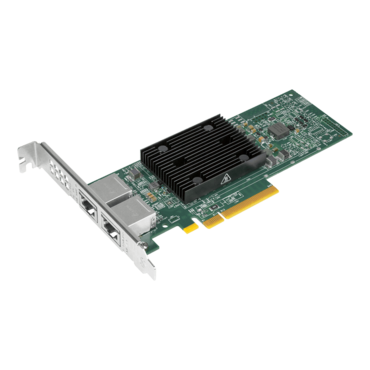

BCM957416A4160C, 10Gbps, 2xRJ45, PCIe Network Adapter
Quantity:
- SKU: 14844711
- Manufacturer: Broadcom
- MPN: BCM957416A4160C
- Availability: IN STOCK
Starting At
$225.00
BCM957416A4160C, 10Gbps, 2xRJ45, PCIe Network Adapter
The Broadcom® BCM957416A4160C is a dual-port 10GBASE-T, PCIe 3.0 x8 Network Interface Card that supports a dual-port 10GBASE-T media interface that is fully compliant with the IEEE 802.3an standard. The card uses the Broadcom BCM57416 Ethernet controller with the integrated dual-channel 10GBASE-T transceiver.
-
Dual-port 10-Gigabit Ethernet:
– 10GBASE-T IEEE 802.3an
– 1000BASE-T IEEE 802.3ab - x8 PCI Express v3.0 compliant.
- SR-IOV with up to 128 VFs.
- Function Level Reset (FLR) support.
- TruFlow™ flow processing engine.
- Virtual Network Termination–VXLAN, NVGRE, Geneve, GRE encap/decap.
- vSwitch acceleration.
- Tunnel-aware stateless offloads.
- DCB support: PFC, ETS, QCN, DCBx.
- RDMA over Converged Ethernet (RoCE)
- SMBus 2.0.
- MCTP over SMBus.
- PCIe-based UART and KCS.
- Jumbo frames up to 9 KB.
- Advanced Congestion Avoidance.
- Multiqueue, NetQueue, and VMQ.
- IPv4 and IPv6 offloads.
- TCP, UDP, and IP checksum offloads.
- Large Send Offload (LSO).
- Large Receive Offload (LRO).
- TCP Segmentation Offload (TSO).
- Receive-side Scaling (RSS).
- Transmit-side Scaling (TSS).
- VLAN insertion/removal.
- Interrupt coalescing.
| Data Rate | 10 Gb |
| Number of Ports | 2 |
| Bus Type | PCIe Gen3.0 x8 |
| Form Factor | Add-on card |
