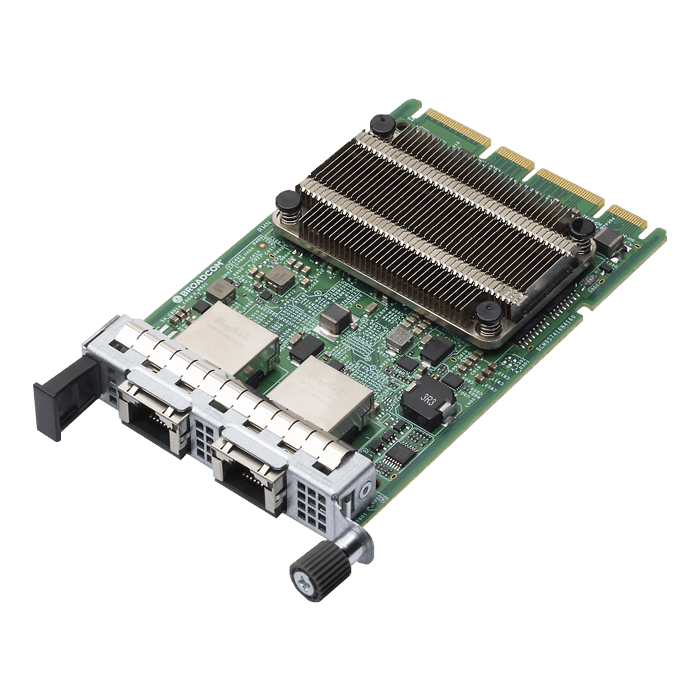

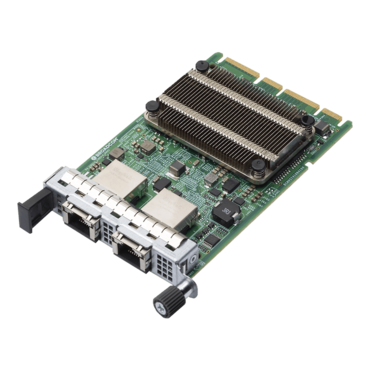

BCM957416N4160C, 10Gbps, 2x RJ45, Ethernet, OCP 3.0 Mezzanine Network Adapter
Quantity:
- SKU: 14898777
- Manufacturer: Broadcom
- MPN: BCM957416N4160C
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Starting At
$333.60
BCM957416N4160C, 10Gbps, 2x RJ45, Ethernet, OCP 3.0 Mezzanine Network Adapter
The Broadcom® BCM957416N4160C is a dual-port 10 Gb/s PCI Express 3.0 x8 Network Adapter Card designed to the Open Compute Project (OCP) 3.0 Design Specification in small form factor with two 10GBASE-T network connectors. The adapter supports 10GBASE-T and 1000BASE-T Ethernet on Category 6, 6A, or 7 twisted-pair cables. The 1000BASE-T can operate on standardCategory 5e UTP. The card uses the Broadcom BCM5741610GBASE-T controller
- Dual Port 10 Gb/s 10GBASE-T interface:
- – 10GBASE-T IEEE 802.3an.
- – 1000BASE-T IEEE 802.3ab.
- – EEE on 10GBASE-T and 1000BASE-T.
- – Auto sense mode.
- – Detection and correction of pair swaps (MDI
- crossover), pair skew, and pair polarity.
- – Auto-negotiation with next page support.
- – IEEE fast retrain and link monitoring.
- x8 PCI Express 3.0 compliant.
- SR-IOV with up to 128 virtual functions (VFs).
- Function-Level Reset (FLR) support.
- TruFlow™ flow processing engine.
- Virtual Network Termination—XVXLAN, NVGRE,
- Geneve, GRE encap/decap.
- vSwitch Acceleration.
- Tunnel-aware stateless offloads.
- DCB support – PFC, ETS, QCN, DCBx.
- RDMA over Converged Ethernet (RoCE).
- Network Controller Sideband Interface (NC-SI).
- SMBus 2.0.
- MCTP over SMBus.
- PCIe-based UART and KCS.
- Jumbo frames up to 9 KB.
- Advanced congestion avoidance.
- Multiqueue, NetQueue, and VMQ.
- IPv4 and IPv6 offloads.
- TCP, UDP, and IP checksum offloads.
- Large send offload (LSO).
- Large receive offload (LRO).
- TCP segmentation offload (TSO).
- Receive-side scaling (RSS).
- Transmit-side scaling (TSS).
- VLAN insertion/removal.
- Interrupt coalescing.
- Network boot—PXE, UEFI.
- iSCSI boot.
- Wake-on-LAN (WOL).
- MSI and MSI-X.
- Conforms to the OCP 3.0 Design Specification Version 1.00.
| Lifecycle | Active |
| Distributor Inventory | Yes |
| Adapter Type | OCP 3.0 |
| ASIC | BCM57416 |
| Connectors | RJ45 |
| OS Support | CentOS, Debian, Microsoft Windows, Oracle Linux, Oracle Solaris, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, Ubuntu, VMware, VMware ESX, VMware vSphere, Windows Hyper-V, Windows Server |
| Host Connector | PCIe 3.0 x8 |
| Link-Speeds | 10/1GbE |
| Multi-Host | No |
| NPAR | Yes |
| Ordering Part # | BCM957416N4160C |
| Ports | 2 |
| RoCEv2 | Yes |
| Smart NICs | No |
| TruFlow™ | Yes |
| TruManage™ | Yes |
