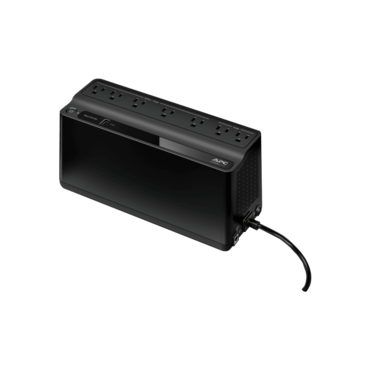

Back-UPS BE600M1, 600 VA/330 W, Sine Wave, Tower UPS
- SKU: 10638892
- Manufacturer: APC
- MPN: BE600M1
- Availability: USUALLY SHIPS WITHIN 3-5 DAYS
Price
$94.78
Back-UPS BE600M1, 600 VA/330 W, Sine Wave, Tower UPS
APC Back-UPS ES 600VA, 120V,1 USB charging port
APC Back-UPS ES 600VA, 120V,1 USB charging port
| Output | |
| Max Configurable Power (Watts) | 330 Watts / 600VA |
| Output Frequency (sync to mains) | 50/60 Hz +/- 3 Hz Sync to mains |
| Topology | Standby |
| Waveform type | Stepped approximation to a sinewave |
| Transfer Time | 6 ms typical : 10 ms maximum |
| Input | |
| Input frequency | 50/60 Hz +/- 3 Hz Auto-sensing |
| Input voltage range for main operations | 92 - 139V |
| Batteries & Runtime | |
| Battery type | Lead-acid battery |
| Typical recharge time | 10hour(s) |
| Replacement Battery | BE670M1 |
| Expected Battery Life (years) | 3 - 5 |
| Battery Charge Power (Watts) | 7 Watts |
| Battery Volt-Amp-Hour Capacity | 66 |
| Communications & Management | |
| Interface Port(s) | USB |
| Control panel | LED status display with on line : on battery : replace battery and overload indicators |
| Audible Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge Protection and Filtering | |
| Surge energy rating | 490Joules |
| Filtering | Full time multi-pole noise filtering : 5% of IEEE surge let-through : zero clamping response time: instantaneous |
| Physical | |
| Maximum Height | 5.5inches (139MM, 13.9CM) |
| Maximum Width | 10.8inches (274MM, 27.4CM) |
| Maximum Depth | 4.1inches (105MM, 10.5CM) |
| Net Weight | 7.69lbs. (3.49KG) |
| Shipping weight | 8.4lbs. (3.81KG) |
| Shipping Height | 7.7inches (196MM, 19.6CM) |
| Shipping Width | 14.3inches (363MM, 36.3CM) |
| Shipping Depth | 6.6inches (168MM, 16.8CM) |
| Master Carton Dimensions (Length x Width x Height) | 14 x 13 x 8inches (356 x 330 x 203MM) |
| Master Carton Units | 2.0 |
| Master Carton Weight | 18.52lbs. (8.4) |
| Pallet Dimensions | 41.5 x 29.8 x 42inches |
| Pallet Weight | 504.86lbs. |
| Units per Pallet | 60.0 |
| SCC Codes | 10731304325113 |
| Environmental | |
| Operating Temperature | 32 - 104 °F (0 - 40 °C) |
| Operating Relative Humidity | 0 - 90 % |
| Operating Elevation | 0 - 10000ft (0 - 3048meters) |
| Storage Temperature | -15 - 45 °C |
| Storage Elevation | 0 - 50000ft (0 - 15240meters) |
| Audible noise at 1 meter from surface of unit | 35.0dBA |
| Online thermal dissipation | 16.0BTU/hr |
| Conformance | |
| Approvals | California Energy Commission (CEC), CTUVus, FCC part 15 class B, NOM, UL 1778 |
| Equipment protection policy | Lifetime : $75000 |
| Standard warranty | 3 years repair or replace |
| Sustainable Offer Status | |
| RoHS | Compliant |
